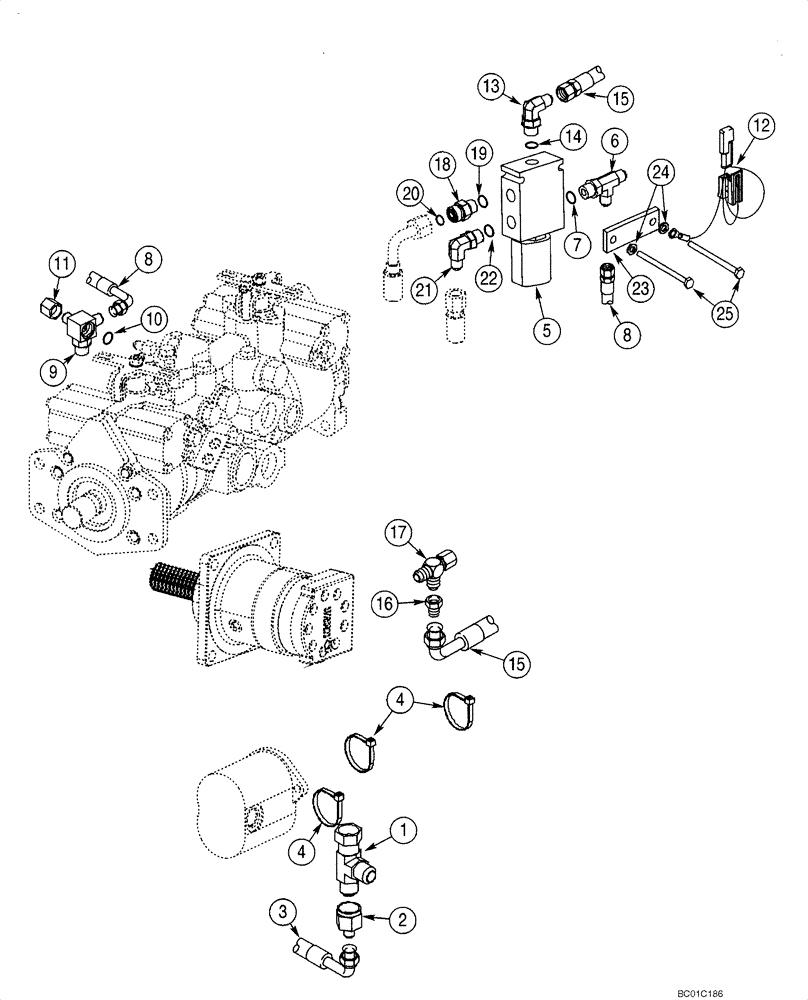

Запчасти Case 70XT (08-07) - HYDRAULICS - COUPLER SYSTEM (08) - HYDRAULICS

REF

INSTRUCTION

At Pumps, Motor and Valve

1шт.

1

218-5220

TEE,37 Degree, 7/8"-14 x 7/8"-14, Fem Sw Run

7/8 fl br x fl x sw; Attaches to Gear Pump

1шт.

2

218-765

REDUCER,37 Degree, 7/8"-14, Fem x 9/16"-18 Male

1шт.

3

395518A1

HOSE ASSY.

1960 mm (77-1/8 in.); System Pressure;, Serial Range: Pump-Valve

1шт.

4

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP 15".

3шт.

5

187505C91

VALVE

See Figure 08-23

1шт.

6

376352A1

TEE

.952 mm (3/8 in.); Incl. 7

1шт.

8

395519A1

HOSE ASSY.

809 mm (31-7/8 in); Charge Pressure;, Serial Range: Pump-Valve

1шт.

9

409306A1

TEE

Incl. 10; Attaches to Tandem Pump

1шт.

11

218-754

CAP,37 Degree, 9/16"-18

1шт.

12

394910A1

HARNESS

Flyback Diode Jumper; For Attaching Parts, See Figure 04-09

1шт.

13

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

9/16 fl x adj Or; Incl. 14

2шт.

15

395520A1

HOSE ASSY.

534 mm (21 in.); To Tank

1шт.

16

218-786

REDUCER,37 Degree, 3/4"-16, Fem x 9/16"-18 Male

1шт.

17

218-845

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run

Attaches to Drive Motor

1шт.

18

201-101

HYD CONNECTOR,11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

Incl 19, 20; For Attaching Parts, See Figure 08-08, Ref 18

1шт.

19

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal End

1шт.

21

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

9/16 fl x adj Or; Incl. 22; For Attaching Parts, See Figure 08-08, Ref 17

1шт.

23

277781A1

LARGE PLATE

PLATE, LARGE

1шт.

24

896-16006

WASHER,6.4mm ID x 14.5mm OD x 2.5mm Thk

2шт.

25

814-6080

BOLT,Hex, M6 x 1 x 80mm, Cl 8.8

2шт.

450505A1

HITCH ASSY

Kit To Convert From Manual Coupler To Hydraulic Coupler; Incl. Figure 08-07, Ref 1 - 8, 12 - 25, Figure 08-08, Ref 1, 2, 8A, 9A, 10, 11A, 12A, 13 - 30, Figure 08-09, Ref 1- 19, Figure 09-04, Ref 2, 3, 14, Figure 09-39, Ref 4

1шт.

7

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

10

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

14

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

20

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

Boss end

1шт.

22

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
