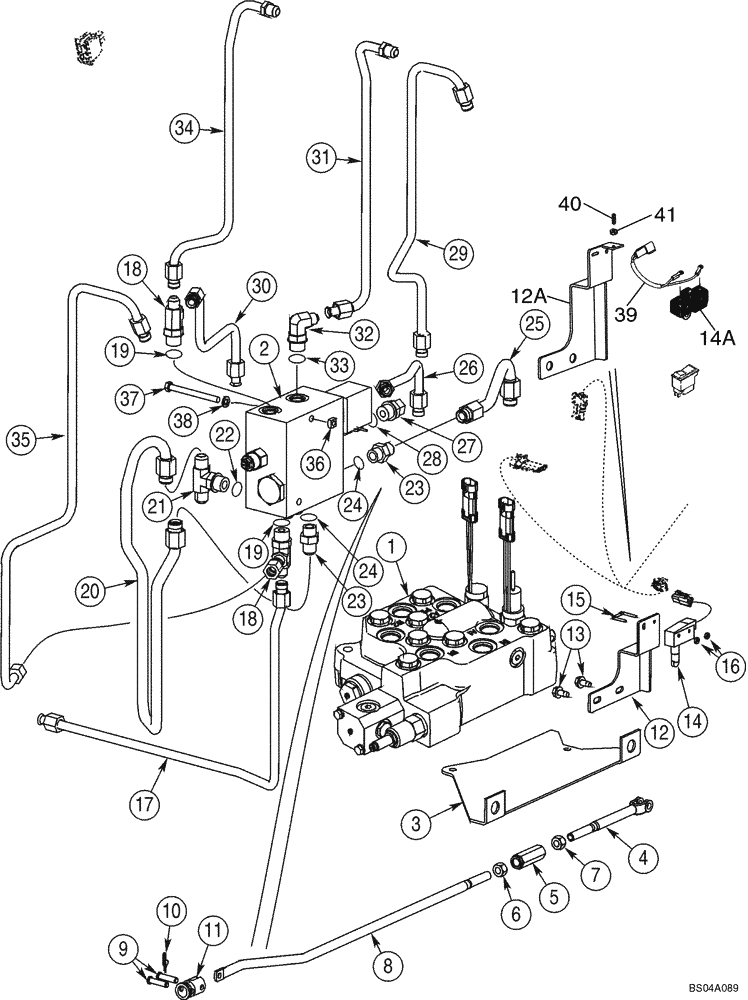

Запчасти Case 70XT (08-04) - HYDRAULICS - SELF-LEVELING, DUAL (70XT) (08) - HYDRAULICS

Used On 70XT

1шт.

1

409064A1

VALVE

Loader; Use With 411761A1; See Figure 08-16

1шт.

409064A3

VALVE

Loader; Replaces 409064A1; See Figure 08-16

1шт.

87431791

VALVE

Loader; Replaces 409064A3; See Figure 08-16

1шт.

2

411761A1

VALVE

Dual Self Level, Component Parts Not Serviced Separately

1шт.

2

442828A1

VALVE

Dual Self Level, See Figure 08-17

1шт.

2

451472A1

VALVE

Dual Self Level, See Figure 08-17A

1шт.

3

432469A2

PLATE

Valve Mounting, See Figure 08-12

1шт.

4

431451A1

ROD

Front Bucket Control; See Figure 09-15, Ref 15

1шт.

5

431454A1

TURNBUCKLE

1шт.

6

825-12412

NUT,M12 x 1.75, Cl 8, LH

M12

1шт.

7

829-1412

NUT,M12, Cl 10.9

1шт.

8

432211A1

ROD

Valve Dump Spool

1шт.

9

427-5125

CLEVIS PIN,5/16" x 1 1/4"

5/16 x 1-1/4

2шт.

10

417860A1

COTTER PIN

1шт.

11

413224A3

COLLAR

1шт.

12

414324A2

BRACKET

Tip Spool Switch; If Used

1шт.

12a

444934A2

BRACKET

Tip Spool Switch

1шт.

13

281-54810

SELF-TAP SCREW,Hex Wash Hd, 5/16"-18 x 5/8"

5/16 x 5/8

2шт.

14

413225A1

SWITCH

Attaches To 400611A4; See Figure 04-09; No Longer Available, Order 14A

1шт.

14a

D137363

SWITCH

Attaches To 400611A4; See Figure 04-09; Replaces 413225A1, 444932A1

1шт.

400611A4

HARNESS

Dual Self Level; See Figure 04-18

1шт.

15

H435814

U-BOLT

1шт.

16

193-1003

NUT,Keps, w/LW,#6-32

2шт.

17

396489A2

TUBE

Left Hand; Lift; See Figure 08-01; If Used

1шт.

17

443048A1

TUBE

Left Hand; Lift; See Figure 08-01

1шт.

18

218-5292

TEE,37 Degree, 3/4"-16, 7/8"-14 O-Ring Run, 3/4"-16

1/2 x 5/8 x 1/2; Incl. 19

2шт.

19

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

20

412513A1

TUBE

1шт.

21

218-5184

TEE,7/8" - 14 Male JIC x 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

7/8-14 inch adj O-ring br; Incl. 22

1шт.

22

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

23

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8 fl x Or; Incl. 24

2шт.

24

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

25

411754A1

TUBE

Lower

1шт.

26

411756A1

TUBE

Curl; If Used

1шт.

26

443054A1

TUBE

Curl

1шт.

27

218-5146

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

3/4 fl x 7/8 Or; Incl. 28

1шт.

28

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

29

411760A1

TUBE

Right Hand; Lift; See Figure 08-01

1шт.

30

411758A1

TUBE

Dump; See Figure 08-02; If Used

1шт.

30

443056A1

TUBE

Dump; See Figure 08-02

1шт.

31

406690A1

TUBE

Curl; If Used

1шт.

31

443050A1

TUBE

Curl

1шт.

32

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Incl. 33

1шт.

33

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

34

406692A1

TUBE

Dump; If Used

1шт.

34

443052A2

TUBE

Dump

1шт.

35

385767A3

TUBE

Right Hand; Lift; If Used

1шт.

35

443046A1

TUBE

Right Hand; Lift

1шт.

36

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

M8

2шт.

37

814-8090

BOLT,Hex, M8 x 1.25 x 90mm, Cl 8.8

M8 x 90

2шт.

38

86624185

WASHER,8.8mm ID x 17.5mm OD x 2mm Thk

9 x 17 x 1.6 mm

2шт.

39

447951A1

HARNESS

Self Level Switch

1шт.

40

405103A1

SET SCREW,Hex Skt, M6 x 25mm, Oval Pt

M6 x 1 x 25

1шт.

41

829-1406

NUT,Hex, M6 x 1, Cl 10.9

1шт.

411173A1

SWITCH

See Figure 04-11

1шт.
