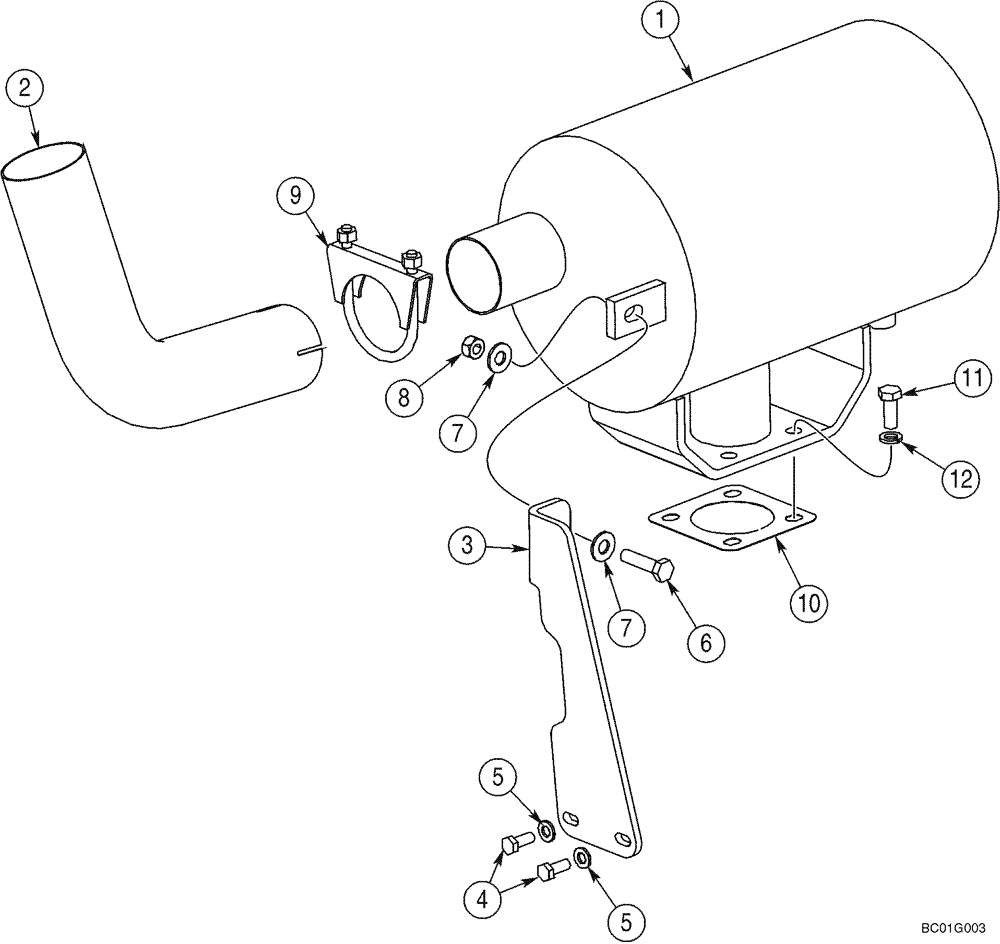

Запчасти Case 70XT (02-03) - EXHAUST SYSTEM, 60XT (02) - ENGINE

1

381661A1

MUFFLER

Spark Arrester; Used On 60XT

1шт.

1

430402A1

MUFFLER

Catalytic; Used On 60XT, If Used

1шт.

1a

431803A1

SHIELD

Muffler Cover; Used With 381661A1, If Used; European Models; Not Illustrated Separately

1шт.

2

411200A1

PIPE, EXHAUST SYSTEM

PIPE, EXHAUST Exhaust Extension; Models Without Aspirator

1шт.

2

434735A1

PIPE, EXHAUST SYSTEM

PIPE, EXHAUST Exhaust Extension; Models With Aspirator; See Figure 02-07

1шт.

3

298663A2

SUPPORT

1шт.

4

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

5

896-11008

WASHER,9mm ID x 17mm OD x 2mm Thk

9 x 17 x 2 mm

2шт.

6

614-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

1шт.

8

832-41310

NUT,M10 x 1.5, Cl 10

1шт.

9

A13240

CLAMP,2-5/8" ID

1шт.

10

J912220

GASKET,0.4mm Thk

1шт.

11

11106231

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9

4шт.

12

892-11010

LOCK WASHER,M10

4шт.

7

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

2шт.
