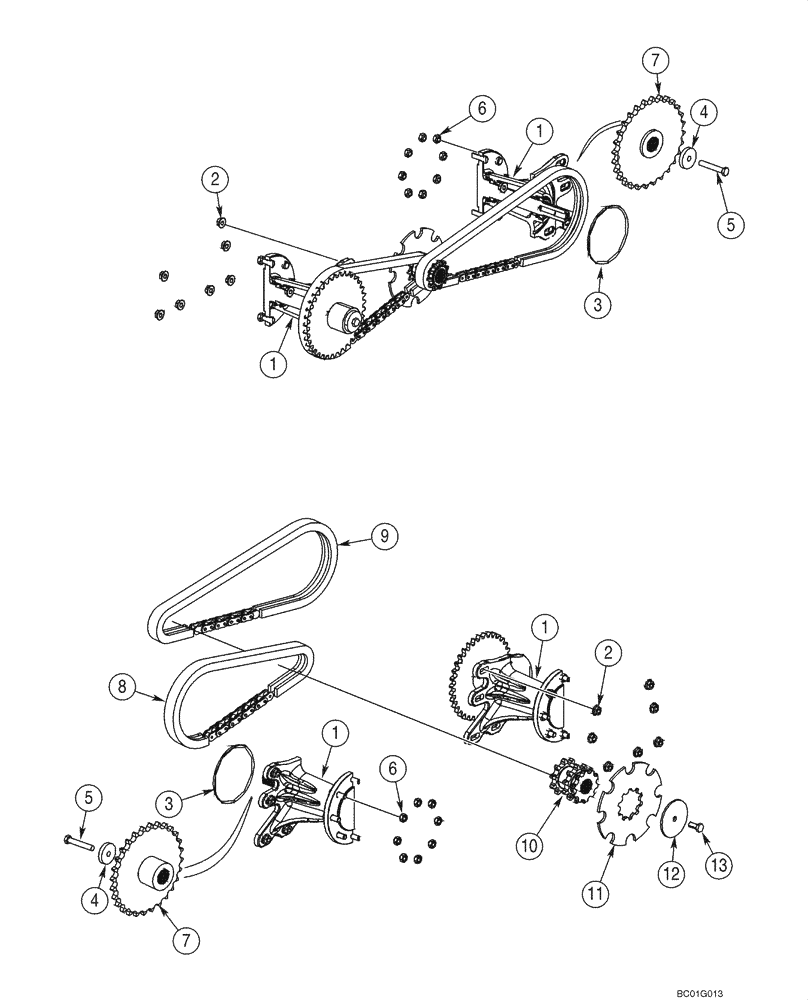

Запчасти Case 70XT (06-23) - DRIVE LINE (NORTH AMERICA) (06) - POWER TRAIN

REF

INSTRUCTION

North American Models

1шт.

1

REF

INSTRUCTION

Axle Assy; See Figure 06-25

4шт.

2

86512498

FLANGE NUT,M16 x 2, Cl 10

32шт.

3

238-5443

O-RING,0.275" Thk x 7.5" ID, -443, Cl 5, 75 Duro

4шт.

4

429233A1

WASHER,16.67mm ID x 70mm OD x 12.7mm Thk

4шт.

5

827-16080

BOLT,Hex, M16 x 2 x 80mm, Cl 10.9

Replaces 827-16100

4шт.

6

408127A1

WHEEL NUT,Conical End Hex, M16 x 2.0, 14.80mm High, Cl 10

32шт.

7

228141A2

SPROCKET ASSY.

28T

4шт.

8

47429588

CHAIN,#100, 60 Links x 31.75mm = 1905mm

100/60P; Used on right rear and left front

2шт.

9

392871A1

CHAIN (CE)

100/48P; Used on left rear and right front

2шт.

10

392869A2

SPROCKET ASSY.

10T

2шт.

11

392870A3

DRIVE PLATE

2шт.

12

369985A2

WASHER,16.27mm ID x 127mm OD x 6.35mm Thk

2шт.

13

627-16035

BOLT,Hex, M16 x 2 x 35mm, Cl 10.9, Full Thd

2шт.
