Запчасти Case 60XT (06-06) - PUMP, TANDEM - MOUNTING (06) - POWER TRAIN

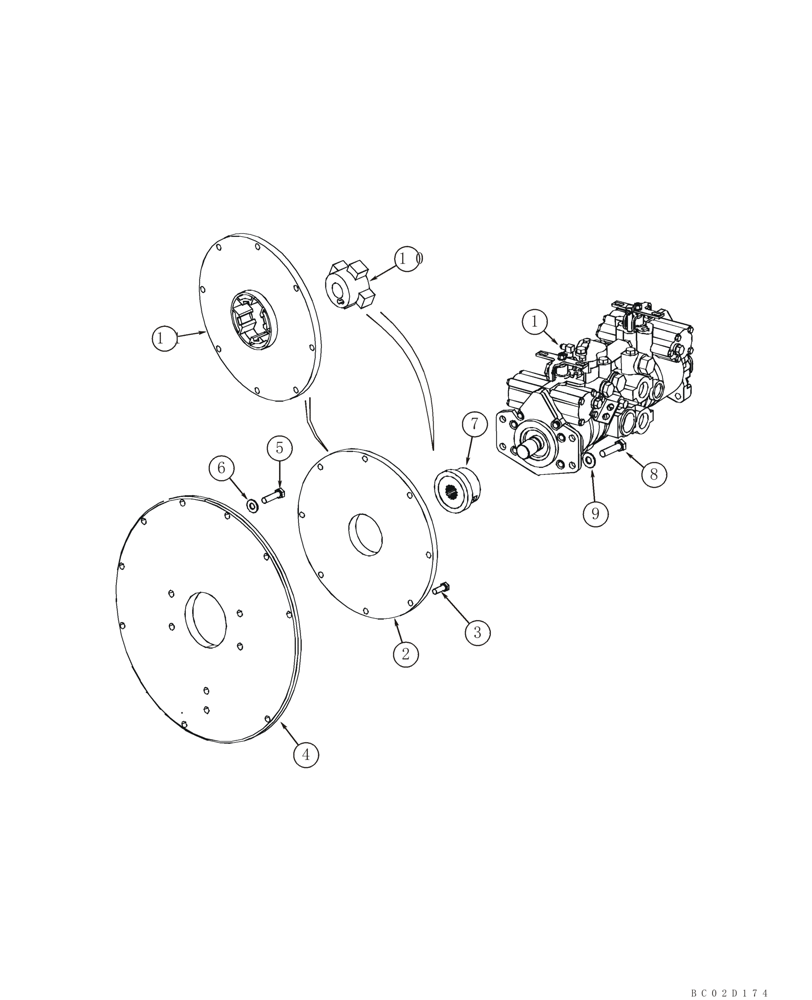

Схема запчастей Case 60XT - (06-06) - PUMP, TANDEM - MOUNTING (06) - POWER TRAIN
9
8
10
4
11
2
bc02d174
1
3
6
7
5

Артикул

Название

Примечание

Количество

1

404281A1

PUMP

Tandem; See Figure 06-08 - 06-13

1шт.

1

452013A1

PUMP,46 CC

Tandem; See Figure 06-14 - 06-19

1шт.

1

87298034

REMAN-HYD PUMP

Remanufactured PUMP

1шт.

1

87298035

CORE-HYDRAULIC PUMP

Return Number, PUMP

1шт.

1

404281A2

PUMP,46 CC

Tandem; See Figure 06-14 - 06-19

1шт.

1

87298032

REMAN-HYD PUMP

Remanufactured PUMP

1шт.

1

87298033

CORE-HYDRAULIC PUMP

Return Number, PUMP

1шт.

2

357801A1

FLANGE

1шт.

3

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

8шт.

4

434636A2

PLATE

1шт.

5

814-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8

9шт.

7

341008A2

COUPLING

19T

1шт.

8

827-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

4шт.

9

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

4шт.

10

436435A1

HUB

1шт.

11

436436A1

DRIVE PLATE,314.32mm OD

1шт.

6

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

9шт.

Выбрано товаров: 17
