Запчасти Case 60XT (04-07) - HARNESS - CHASSIS, MAIN (04) - ELECTRICAL SYSTEMS

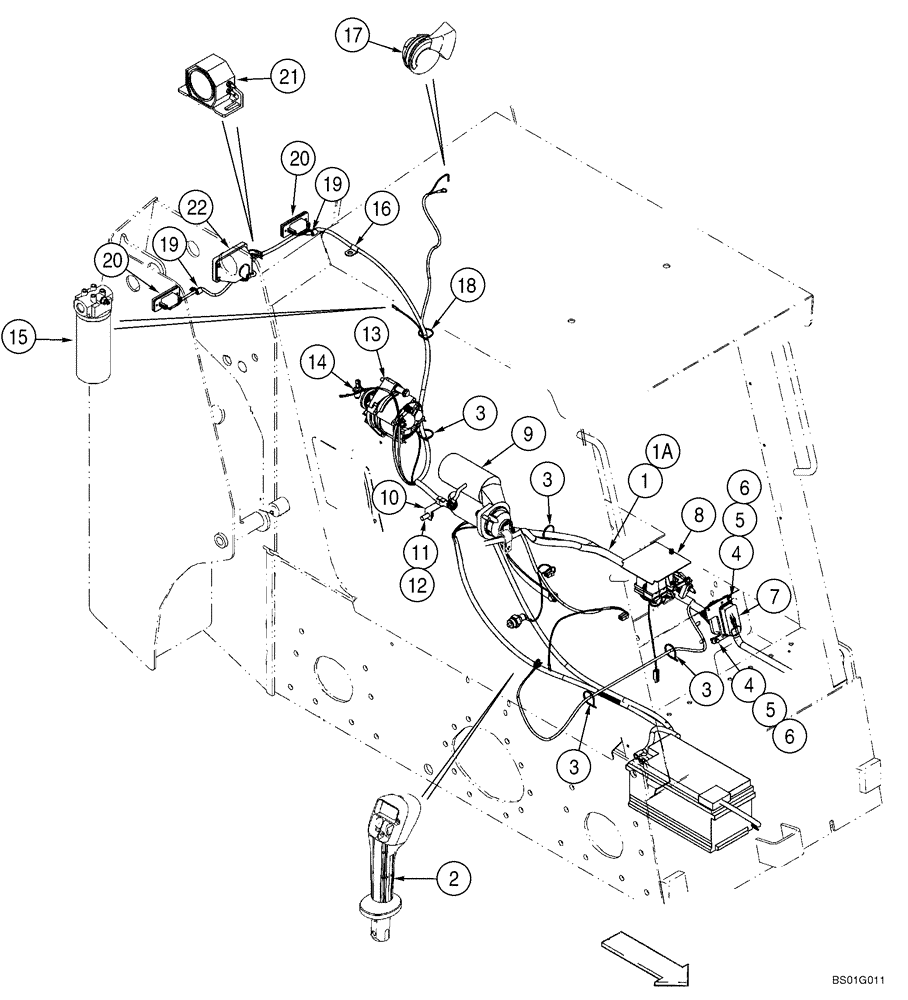

Схема запчастей Case 60XT - (04-07) - HARNESS - CHASSIS, MAIN (04) - ELECTRICAL SYSTEMS
6
10
3
1a
14
2
3
11
4
5
6
3
1
3
20
19
19
18
17
20
21
22
8
12
15
5
16
7
9
13
4

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

Right Hand Control Handle to Rear Lamps

1шт.

1

373663A7

HARNESS

Used On 60XT; Chassis; Incl. Figure 04-06 - 04-07

1шт.

1a

383427A6

HARNESS

Used On 70XT; Chassis; Incl. Figure 04-06 - 04-07

1шт.

2

REF

INSTRUCTION

Handle Control; Models With Right Hand Control Handle; See Figure 04-23

1шт.

3

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP 15".

5шт.

4

614-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

2шт.

5

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

6

832-41306

NUT,M6 x 1, Cl 10

2шт.

7

NSS

NOT SOLD SEPARAT

Shroud, Connector

1шт.

8

REF

INSTRUCTION

Block; Main Fuse and Relay; See Figure 04-13

1шт.

9

86982709

STARTER MOTOR,12V, 2.5kW

See Figure 04-01; Replaces 1987559C1

1шт.

9

86982709R

REMAN-STARTER,12V, 2.5kW

Remanufactured Starter, 12 volt 2.5KW

1шт.

9

86982709C

CORE-STARTER,12V, 2.5kW

Return Part Number

1шт.

9

104452A2R

REMAN-STARTER

Remanufactured Starter, 12 volt, 2.5KW

1шт.

9

104452A1C

CORE-STARTER

Return Part Number, Starter 12 volt, 2.5KW

1шт.

10

405163A1

CLIP

1шт.

11

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

1шт.

12

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13.5 x 28 x 4 mm

1шт.

13

A187873

ALTERNATOR,12V, 65A

12V, 65 amp; See Figure 04-02

1шт.

13

A187873GV

ALTERNATOR

Value, 12V, 65A

1шт.

14

1345488C3

TEMPERATURE SWITCH

Outboard Engine Coolant Port

1шт.

15

222756A2

FILTER ASSY

See Figure 06-05

1шт.

16

515-25111

CLAMP,7/16", Insul, 1/2" Bolt

1шт.

17

254130A1

HORN

12V; See Figure 04-29

1шт.

18

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in; Models With Horn

1шт.

19

516-2295

CLAMP,J, 7/16" Insul, 5/16" Bolt

2шт.

20

233163A2

LAMP, TAIL

LIGHT, TAIL Rear; See Figure 04-27

2шт.

21

REF

INSTRUCTION

Alarm; Backup Alarm; See Figure 04-30

1шт.

22

222004A2

HEADLIGHT,Halogen, 12V, 50W, Clear

Rear; See Figure 04-27

1шт.

Выбрано товаров: 29
