Запчасти Case 60XT (03-08) - FUEL FILTER, 4T-390 EMISSIONS CERTIFIED ENGINE (03) - FUEL SYSTEM

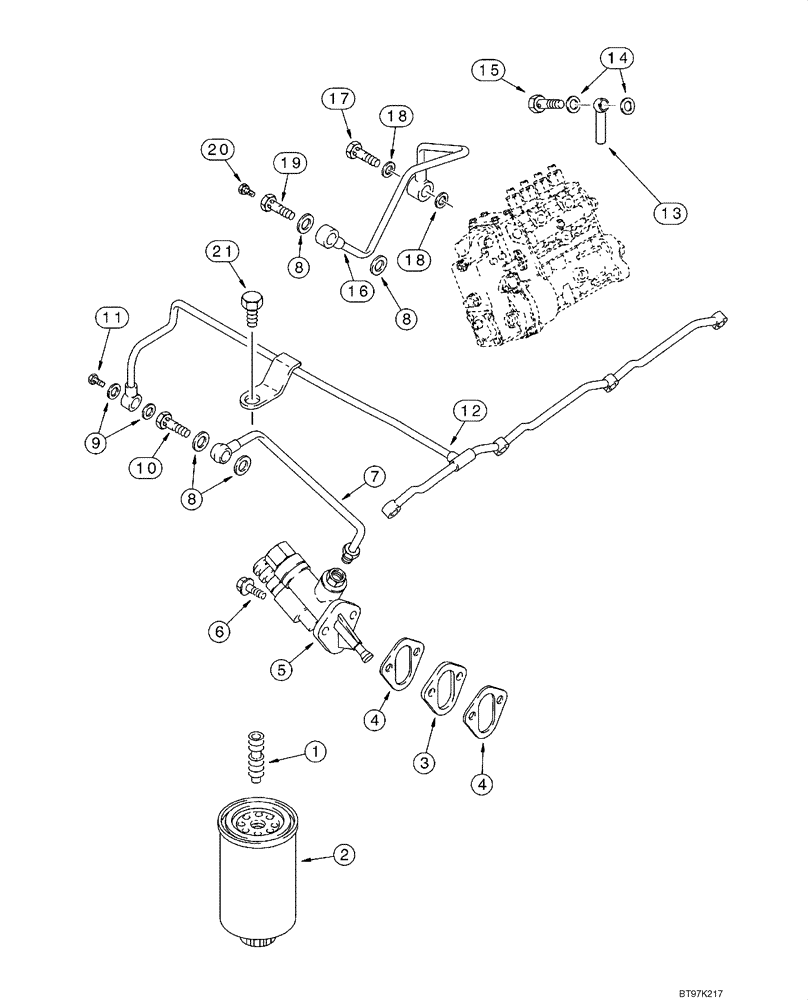

Схема запчастей Case 60XT - (03-08) - FUEL FILTER, 4T-390 EMISSIONS CERTIFIED ENGINE (03) - FUEL SYSTEM
18
11
18
19
10
5
3
4
21
15
9
12
20
8
1
16
8
14
2
8
7
17
4
13
6

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

4T-390 Emissions Certified Engine

1шт.

1

J925955

ADAPTER,M16 x 1.5 x M16 x 1.5

1шт.

2

J931062

FILTER

No Longer Available, Order J286503

1шт.

2

J286503

FUEL FILTER

1шт.

3

J914284

SPACER

1шт.

4

J939258

GASKET,1.21mm Thk

Replaces J931059

2шт.

5

87473337

FUEL PUMP

Replaces J936318 And 87648717

1шт.

6

845-8025

BOLT,Hex Flg, M8 x 25mm, Cl 8.8

2шт.

7

J917280

FUEL TUBE,8 mm OD x 231 mm L

1шт.

8

87415913

SEALING WASHER,11.71mm ID x 19.3mm OD x 1.27mm Thk

12 x 19 x 1.5 mm; Replaces J935171

4шт.

9

J918188

WASHER,7.8mm ID x 13.5mm OD x 1.2mm Thk

2шт.

10

J916361

BANJO BOLT

M12 x 24

1шт.

11

J924726

BANJO BOLT

1шт.

12

J927633

TUBE

1шт.

13

J911447

CONNECTOR, ELEC

CONNECTOR

1шт.

14

J918192

PACKING RING,14mm ID x 20mm OD x 1mm Thk

14 x 20 x 1 mm

2шт.

15

J932096

VALVE

1шт.

16

J936348

FUEL TUBE,8 mm OD x 232.2, 46.1 mm L

1шт.

17

J924725

BANJO BOLT,M14 x 1.5 x 26mm

1шт.

18

J918192

PACKING RING,14mm ID x 20mm OD x 1mm Thk

14 x 20 x 1 mm

2шт.

J905860

BANJO BOLT

Incl. 19, 20

1шт.

19

J911446

BANJO BOLT,M12 x 1.5 x 24mm

1шт.

20

J939570

BLEED SCREW,Hex, M6 x 1 x 10mm, Cl 8.8

Replaces J905403

1шт.

21

844-8025

BOLT,Hvy Hex, M8 x 25mm, Cl 8.8

2шт.

Выбрано товаров: 24
