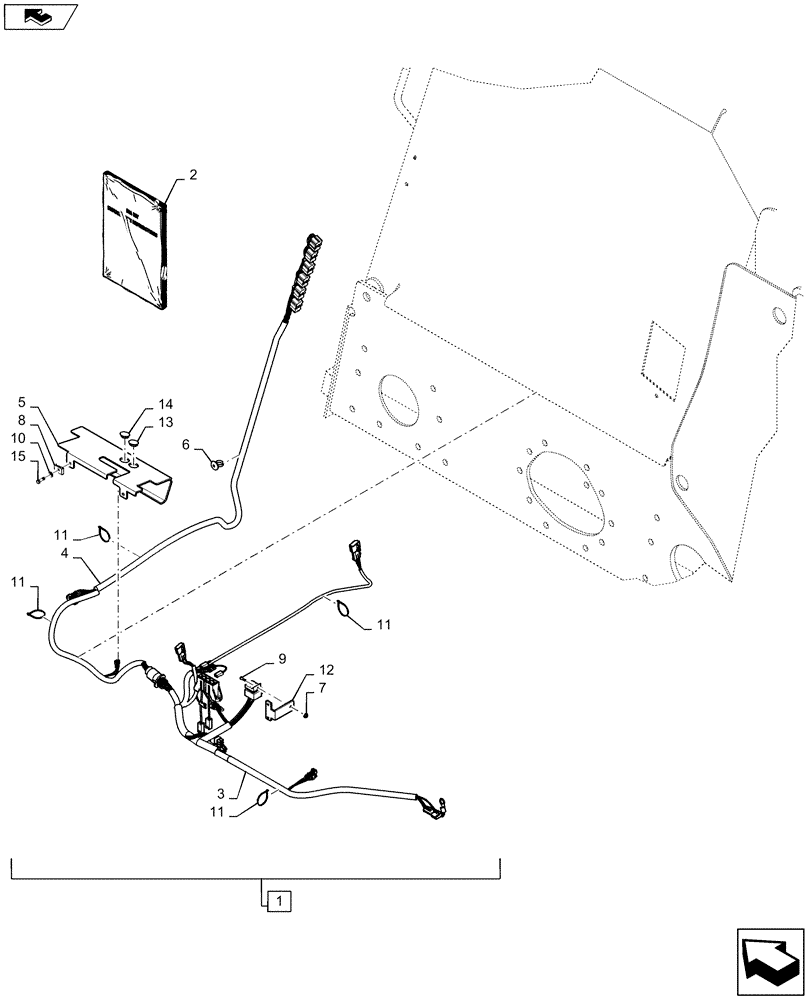

Запчасти Case 60XT (88.055.01) - DIA KIT, INSTALLATION, OPTIONAL ELECTRICAL (88) - ACCESSORIES

1

244686A1

DIA KIT, ADD PROD

Optional Electrical, Incl 2 - 15

1шт.

2

6-46231

INSTRUCTION

Installation

1шт.

3

375633A9

HARNESS

Chassis Options

1шт.

4

375634A4

HARNESS

Cab Options

1шт.

5

408464A2

COVER

Options Harness

1шт.

6

378884A2

STRAP,254mm L

Cable Tie, Nylon, Black

1шт.

7

825-5145

NUT,M5, Flg Ser

Serrated Flange

3шт.

8

833-40408

NUT,M8, U

Multi-Thread Short

2шт.

9

840-1512

SCREW,Pan, M5 x 12mm, Gr 4.8

3шт.

10

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

11

L11541

CABLE TIE,203.2mm L, Nylon

13шт.

12

405813A1

ANGLE

Options Relay Mounting

1шт.

13

353-408

PLUG,Dome, .750" hole, Nylon

Dome .750 Hole Black Nylon

1шт.

14

353-410

PLUG,Dome, .875" hole, Nylon

1шт.

15

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.
