Запчасти Case 60XT (02-16) - OIL FILTER AND COOLER (02) - ENGINE

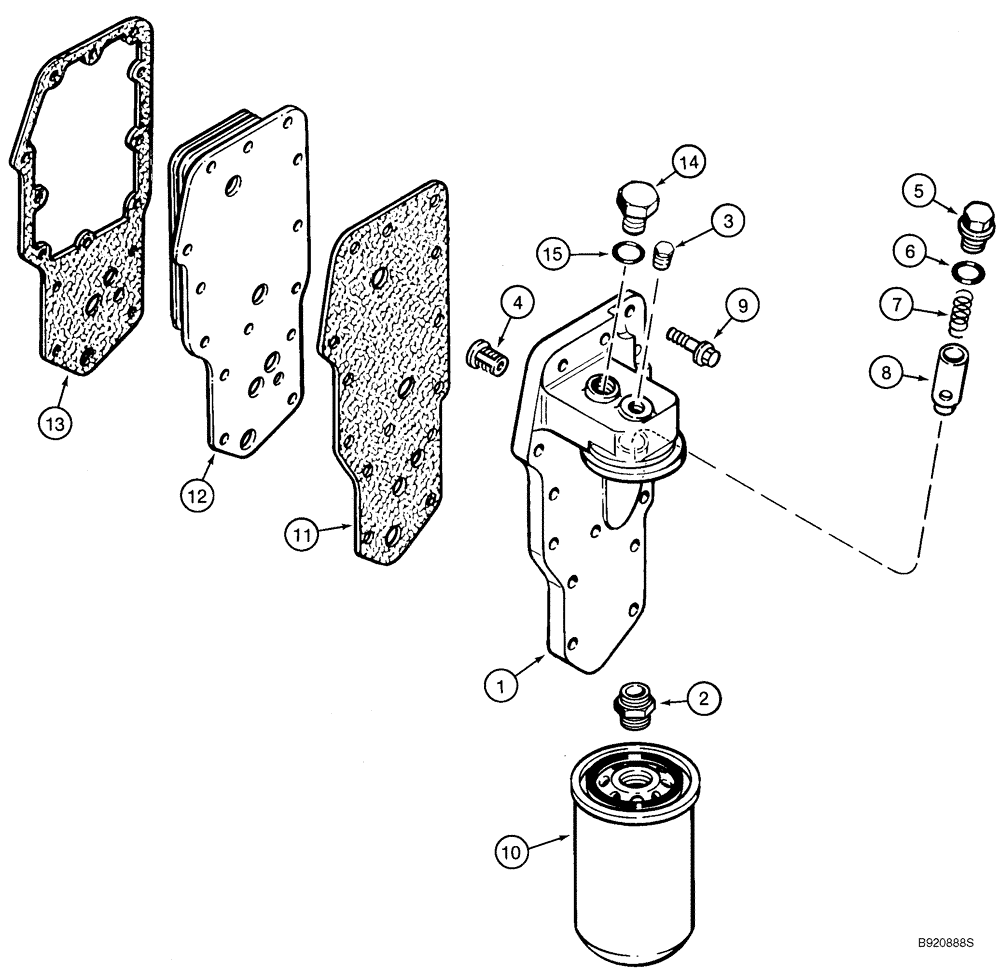

Схема запчастей Case 60XT - (02-16) - OIL FILTER AND COOLER (02) - ENGINE
10
12
9
14
11
8
4
1
2
3
5
13
6
15
7

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

4-390/4T-390 Emissions Certified Engine

1шт.

J918954

HEAD

Incl. 1, 2

1шт.

1

NSS

NOT SOLD SEPARAT

Head

1шт.

2

J909355

ADAPTER

1шт.

3

J906619

PLUG,1/8" - 27

1/8 PT

1шт.

4

J936365

VALVE PRESSURE RELIE

1шт.

5

J915787

PLUG

1шт.

6

J929457

O-RING

23/32 ID x 7/64

1шт.

7

J918427

SPRING

1шт.

8

J918428

PLUNGER

1шт.

9

845-8035

BOLT,Hvy Hex, M8 x 35mm, Cl 8.8

14шт.

10

J908616

ENGINE OIL FILTER,Single pkg qty. For multi pkg [qty.12] order J908616MP

1шт.

10

J934429

ENGINE OIL FILTER

Premium

1шт.

11

J929792

GASKET,1.2mm Thk

Used On Non-Emissions Certified Engines

1шт.

11

J942915

GASKET

Used On Emissions Certified Engines

1шт.

12

87416027

OIL COOLER

Replaces J921557

1шт.

13

J942914

GASKET

1шт.

14

J919686

PLUG

12 mm; 4-390 Engine; Incl. 15

1шт.

15

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

1шт.

Выбрано товаров: 19
