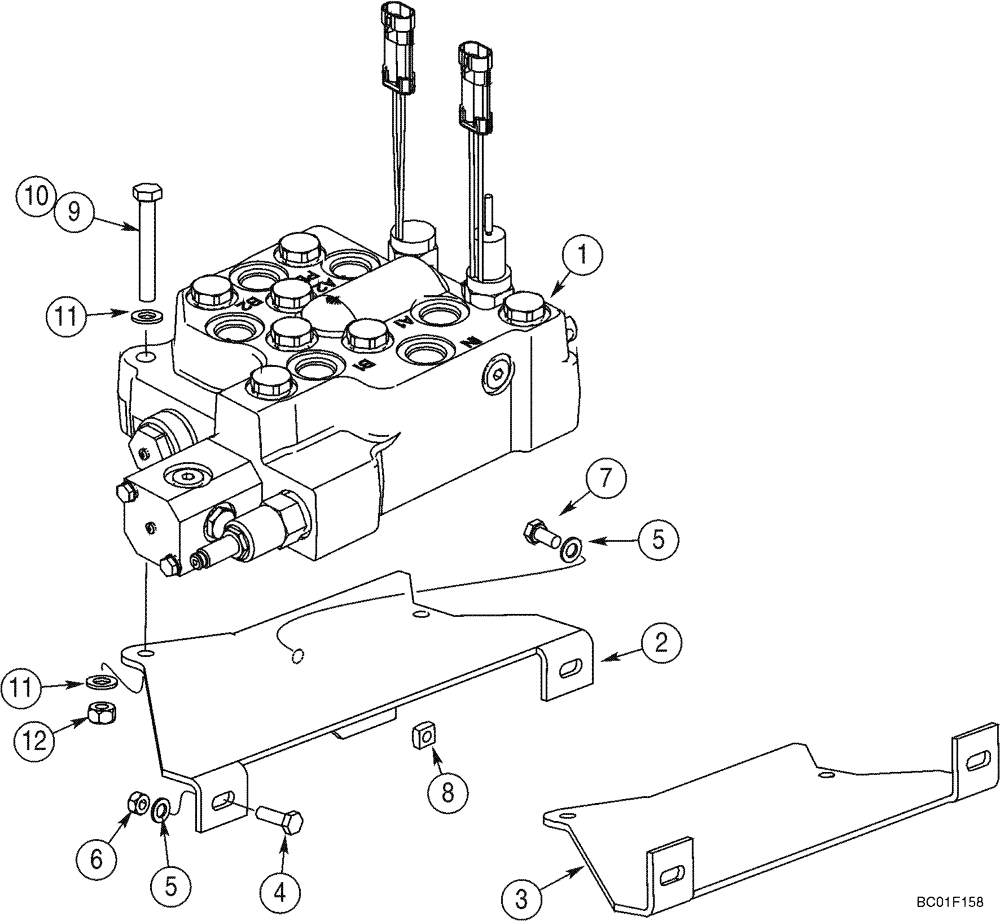

Запчасти Case 60XT (08-10) - VALVE, CONTROL - MOUNTING (NORTH AMERICA, IF USED) (08) - HYDRAULICS

REF

INSTRUCTION

North American Models; If Used, Also See Figure 08-11

1шт.

1

REF

INSTRUCTION

Loader Control Valve; See Figure 08-13

1шт.

2

410843A1

PLATE

Used On 60XT; Valve Mounting; If Used

1шт.

3

410844A2

PLATE

Used On 70XT; Valve Mounting; If Used

1шт.

4

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

5

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

5шт.

6

832-41408

NUT,M8 x 1.25, Cl 10

M8

2шт.

7

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

1шт.

8

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

M8

1шт.

9

814-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

1шт.

10

814-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 8.8

1шт.

12

832-41410

NUT,M10 x 1.5, Cl 10

2шт.

11

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.
