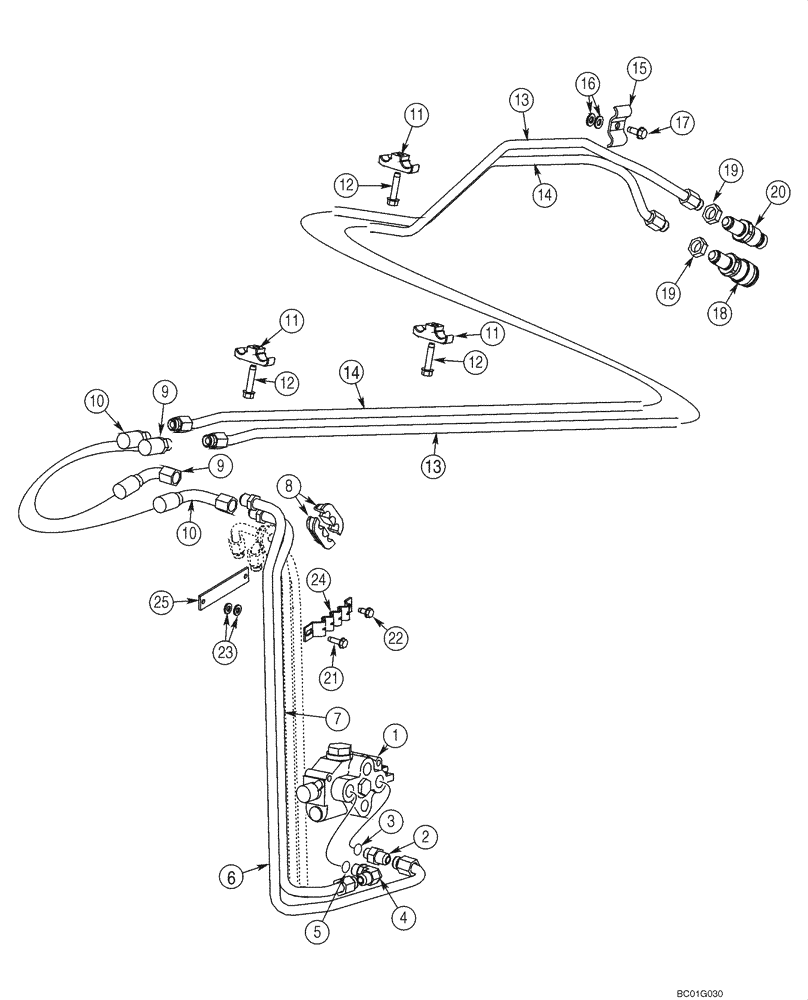

Запчасти Case 60XT (08-05) - HYDRAULICS - AUXILIARY SYSTEM (08) - HYDRAULICS

1

H674465

VALVE

Auxiliary; See Figure 08-19

1шт.

1

87435245

VALVE

Control; See Figure 08-19A

1шт.

2

218-5066

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 16 Male ORB

Incl. 3

1шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

4

218-5117

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 3/4" - 16 Male ORB

7/8 fl x 3/4 adj Or; Incl. 5

1шт.

5

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

6

406074A1

TUBE

5/8 in. dia

1шт.

7

406072A1

TUBE

5/8 in. dia

1шт.

8

376524A2

SUPPORT,5/8"

5/8 in.

2шт.

9

406240A1

HOSE ASSY.

625 mm (24-5/8 in.)

1шт.

10

406087A1

HOSE ASSY.

650 mm (25-5/8 in.)

1шт.

11

D120613

CLAMP,20mm ID

3шт.

12

281-54928

SELF-TAP SCREW,Hex Wash Hd, 3/8"-16 x 1 3/4"

3/8 x 1-3/4

3шт.

13

406332A1

TUBE

5/8 in. dia

1шт.

14

411444A1

TUBE

5/8 in.dia

1шт.

15

86501706

CLAMP

1шт.

17

281-54914

SELF-TAP SCREW,Hex Wash Hd, 3/8"-16 x 7/8"

3/8 x 7/8

1шт.

18

393394A1

COUPLING, BREAK AWAY

Female Quick Disconnect; Component Parts Not Serviced Separately

1шт.

19

595460

BHD LOCK NUT,7/8" - 14

7/8

2шт.

20

87417308

COUPLING, BREAK AWAY

Male Quick Disconnect; Replaces 393395A1; Component Parts Not Serviced Separately; Incl. 20A

1шт.

20a

87426762

RING

Not Illustrated

1шт.

21

281-54816

SCREW,Hex Wshr Hd, 5/16" - 18 x 1"

5/16 x 1

1шт.

22

281-54810

SELF-TAP SCREW,Hex Wash Hd, 5/16"-18 x 5/8"

5/16 x 5/8

1шт.

23

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

3шт.

24

406941A1

BAR

Clamp Face

1шт.

25

406940A1

BAR

Clamp Back

1шт.

16

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

3шт.
