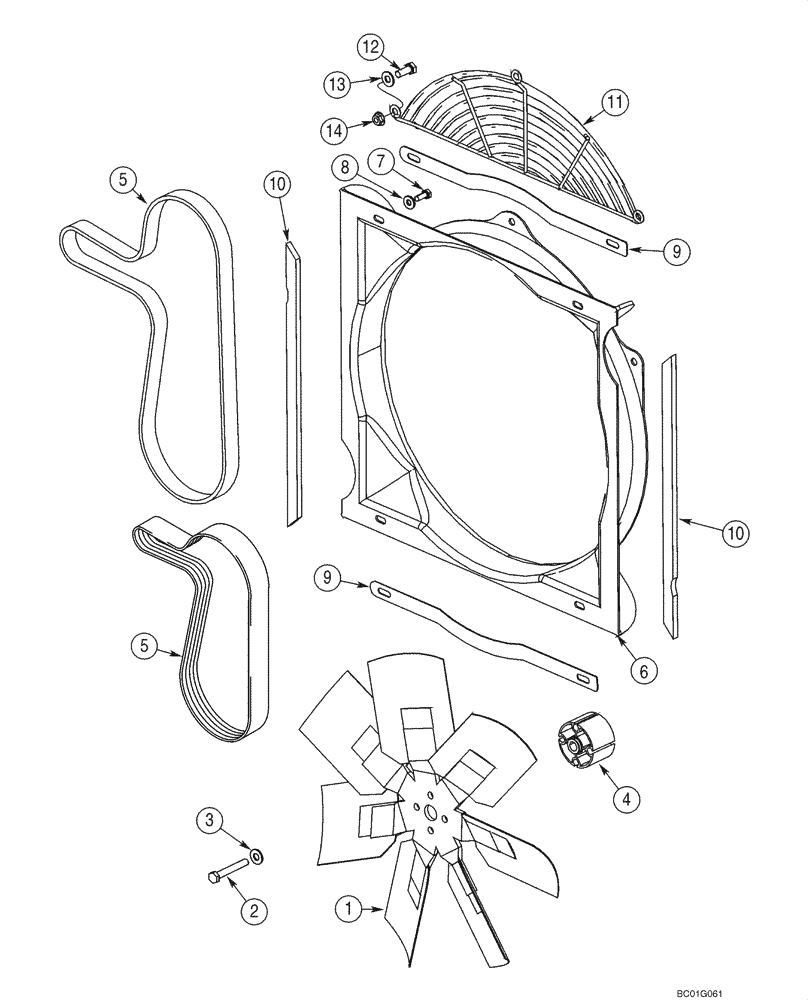

Запчасти Case 60XT (02-02) - FAN - FAN BELT (02) - ENGINE

1

412005A1

FAN

518 mm (20-3/8 in.)

1шт.

2

814-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 8.8

4шт.

4

A184523

SPACER

47.5 mm; Not Used On European 70XT

1шт.

4

A184545

SPACER

43 mm; European 70XT

1шт.

5

J911558

V-BELT,27.92mm W x 1498.6mm L, 8 Ribs

Fan, North America Only

1шт.

5

J911559

V-BELT,27.92mm W x 1574.8mm L, 8 Ribs

Fan, European 60XT

1шт.

5

J911563

V-BELT,27.92mm W x 1536.7mm L, 8 Ribs

Fan, European 70XT

1шт.

6

390981A2

SHROUD

1шт.

7

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

4шт.

8

896-15008

WASHER,9mm ID x 21mm OD x 2.5mm Thk

9 x 21 x 2.5 mm

4шт.

9

258663A1

SEAL

Fan Shroud

2шт.

10

A173165

SEALING STRIP

Side

2шт.

11

247610A2

PROTECTOR

Fan

1шт.

12

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

3шт.

14

825-51410

FLANGE NUT,M10, Flg Ser

3шт.

3

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

4шт.

13

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

3шт.
