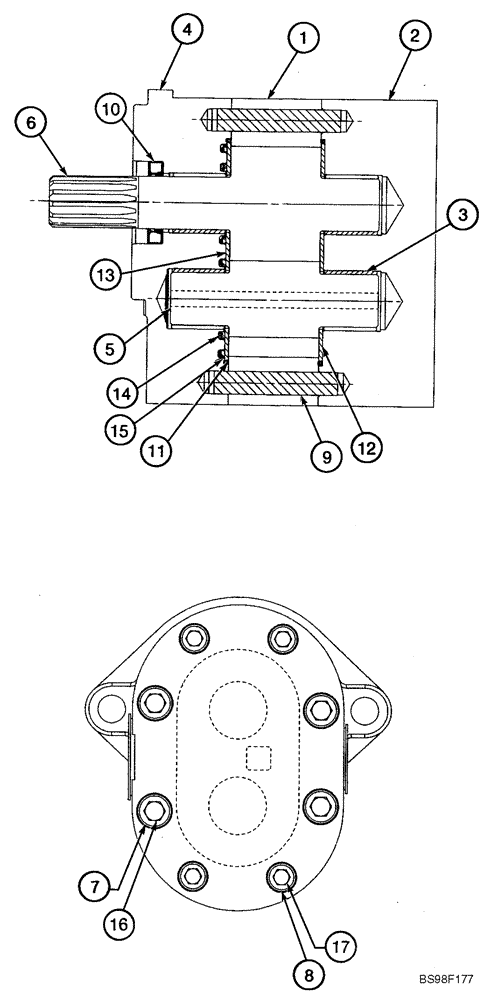

Запчасти Case 40XT (06-20) - PUMP, GEAR (06) - POWER TRAIN

298851A2

PUMP

Gear; Incl. 1 - 17; No Longer Available, Order 87406812

1шт.

87406812

PUMP

Gear; Component Parts Not Available At Time Of Printing; Incl. 87413478, Seal Kit

1шт.

87413478

SEAL KIT

Use With 87406812

1шт.

87442244

PUMP

Gear Pump, Component Parts Not Available At Time Of Printing; Replaces 87406812

1шт.

1

324571A1

LARGE PLATE

PLATE, LARGE Gear

1шт.

2

324572A1

COVER

1шт.

3

324574A1

SLEEVE

Bearing

4шт.

4

324575A1

BODY

1шт.

5

324576A1

SHAFT

Idler

1шт.

6

324577A1

SHAFT

Drive

1шт.

7

A32395

WASHER

4шт.

8

D46324

WASHER

4шт.

9

D149148

DOWEL

Pin

2шт.

10

324578A1

OIL SEAL

Oil

1шт.

11

324579A1

SEALING RING

Ring

2шт.

12

324581A1

LARGE PLATE

PLATE, LARGE Wear

1шт.

13

324582A1

LARGE PLATE

PLATE, LARGE Wear

1шт.

14

324586A1

SEAL

1шт.

15

324587A1

SEAL

1шт.

16

461-33860

HEX SOC SCREW,3/8"-16 x 3 3/4"

3/8 x 3-3/4

4шт.

17

461-33160

HEX SOC SCREW,5/16"-18 x 3 3/4"

5/16 x 3-3/4

4шт.
