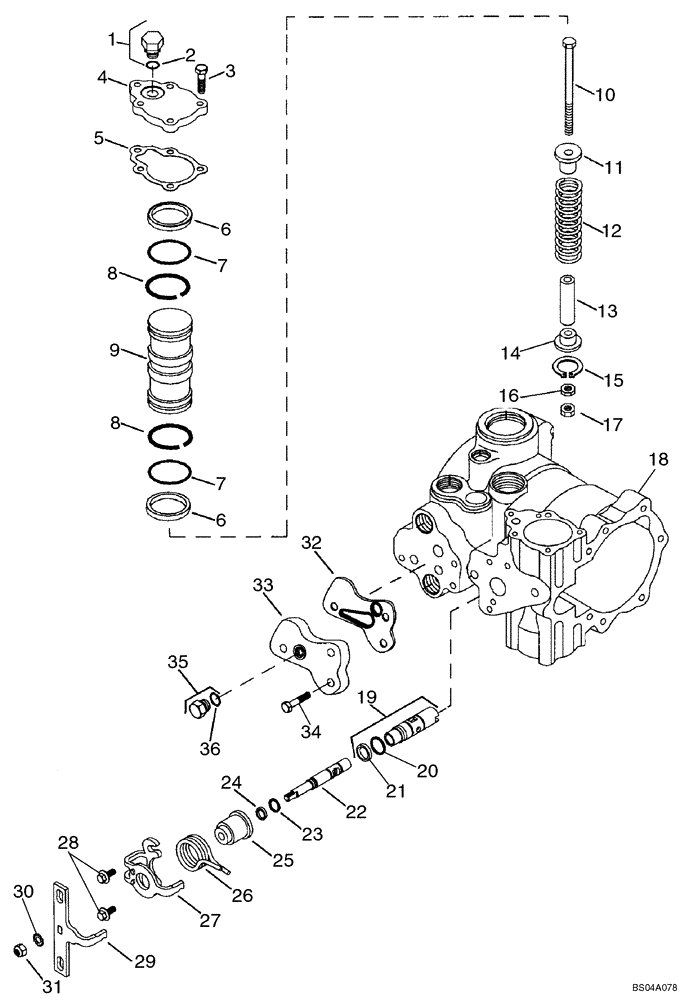

Запчасти Case 40XT (06-14) - PUMP, TANDEM (FRONT) 404281A2 (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
404281A2
PUMP,46 CC
Tandem; Incl. 1 - 36; Also Incl. Parts On Figure 06-14 - 06-19
1шт.
87298032
REMAN-HYD PUMP
Remanufactured PUMP
1шт.
87298033
CORE-HYDRAULIC PUMP
Return No, PUMP
1шт.
1
76349
PLUG,9/16" - 18 ORB
Incl. 2
1шт.
2
237-6006
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
1шт.
3
H438321
BOLT,M6 x 1 x 20mm, Cl 10.9
5шт.
4
H436053
COVER
Servo
1шт.
5
N14063
GASKET
1шт.
H673773
KIT
Incl. 6, 7
1шт.
6
N14668
RING, PISTON
2шт.
7
238-5131
O-RING,0.103" Thk x 1.674" ID, -131, Cl 5, 75 Duro
2шт.
8
100536A1
BEARING WASHER,47.24mm ID x 50.34mm OD x 3.1mm Thk
2шт.
9
H435772
PISTON
1шт.
10
370531A1
SCREW
1шт.
11
361700A1
GUIDE
1шт.
12
N13226
SPRING
1шт.
13
N13242
SLEEVE
1шт.
14
N13241
GUIDE,1.292" OD
1шт.
15
N13255
RING
1шт.
16
425-116
NUT,3/8" - 24, Gr 5
1шт.
17
324604A1
NUT,Lock
1шт.
18
402364A1
HOUSING
Incl. Figure 06-15 Ref 35, 36, Figure 06-16 Ref 2, 4
1шт.
19
110671A2
SLEEVE
Incl. 20, 21
1шт.
20
NSS
NOT SOLD SEPARAT
O-Ring
1шт.
21
86993483
BACK-UP RING,0.643"
.643; Backup
1шт.
22
86993477
SPOOL
1шт.
23
86993475
O-RING
1шт.
24
86993484
BACK-UP RING,0.390"
1шт.
25
NSS
NOT SOLD SEPARAT
Part Number Unavailable At Time Of printing
1шт.
26
407060A1
SPRING
1шт.
27
436416A1
BRACKET
Neutral Return
1шт.
28
H435770
FLANGE BOLT,1/4" - 20 x 5/8"
2шт.
29
86993478
HANDLE
Control
1шт.
30
493-41033
LOCK WASHER,0.33" ID x 0.61" OD x 0.03" Thk
1шт.
31
H436054
SPECIAL NUT,Lock, 5/16" - 18
1шт.
32
303709A1
GASKET
Suction, Filter Adapter
1шт.
33
101462A1
ADAPTER
Suction
1шт.
34
326-516
BOLT,Hex, 5/16" - 18 x 1", Gr 8
3шт.
35
76349
PLUG,9/16" - 18 ORB
Incl. 36
1шт.
36
237-6006
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
1шт.
140008A1
GASKET KIT
Repair, Seal; Incl. 06-14 Ref 5, 6, 7, 8, 20, 21, 23, 24, 32; 06-15 Ref 2, 3, 5, 10, 17, 20, 32; 06-16 Ref 3, 29, 35; 06-17 Ref 3, 11, 13, 14; 06-18 Ref 5, 6, 7, 8, 18, 21, 30, 31, 33; 06-19 Ref 11
1шт.
Выбрано товаров: 41
