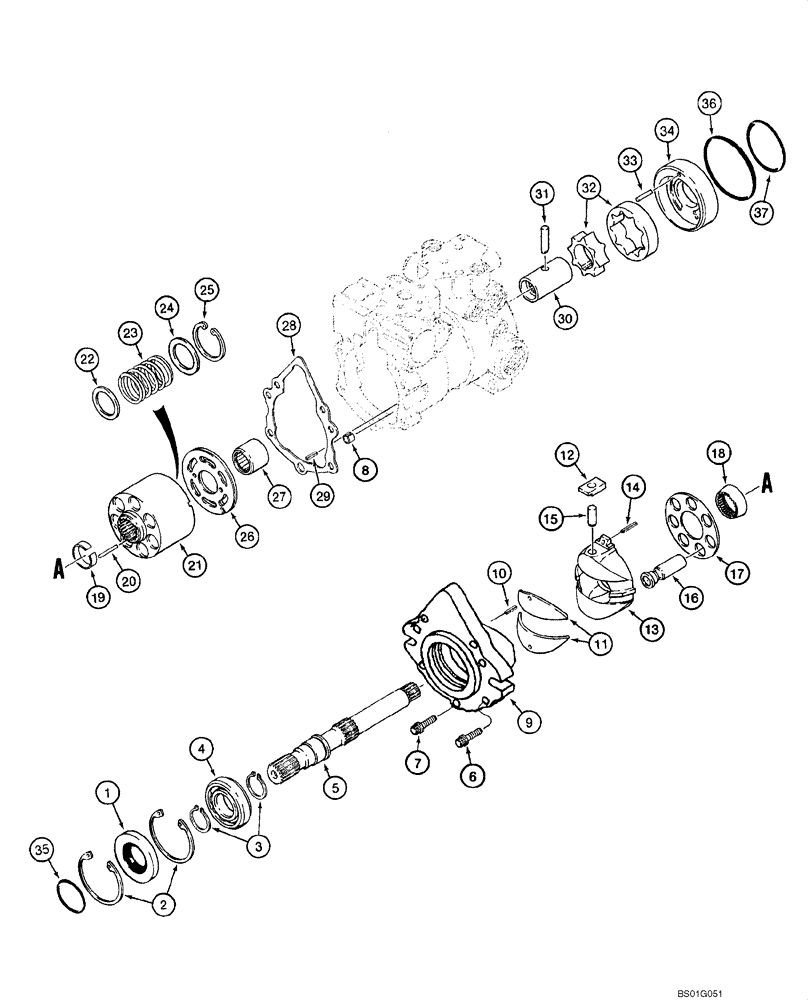

Запчасти Case 40XT (06-13) - PUMP, TANDEM (REAR) 404281A1 (06) - POWER TRAIN

404281A1

PUMP

Tandem; Incl. 1 - 37; Also Incl. Parts On Figure 06-08 - 06-12

1шт.

1

N14103

SEAL

1шт.

2

103-21281

SNAP RING,66.92mm ID x 2.36mm W, Int

2шт.

3

100-11137

SNAP RING,#137, Ext

2шт.

4

A29183

BALL BEARING,34.99mm ID x 71.99mm OD x 16.94mm W

Ball

1шт.

5

N13244

SHAFT

1шт.

6

223677A1

SCREW,Torx, 7/16"

7/16 in

6шт.

7

223680A1

SPECIAL BOLT,Torx, 3/8"

3/8 in

1шт.

8

N13994

SPACER

Pin, Roll

1шт.

9

324611A1

COVER

1шт.

10

193494A1

PIN, ROLL

2шт.

11

193488A1

BEARING LINER

Journal

2шт.

12

N13224

SLEEVE

Retainer

1шт.

178632A1

COVER

Plate Assy; Incl. 13 - 15

1шт.

13

NSS

NOT SOLD SEPARAT

PLATE

1шт.

14

38-11612

LOCK PIN,1/4" x 3/4", Slotted

1/4" x 3/4", Slotted

1шт.

15

N13254

PIN

1шт.

402366A1

KIT

Cylinder Block; Component Parts Not Serviced Separately; Incl. 16 - 25

1шт.

16

NSS

NOT SOLD SEPARAT

Piston

7шт.

17

NSS

NOT SOLD SEPARAT

Retainer

1шт.

18

NSS

NOT SOLD SEPARAT

Guide

1шт.

19

NSS

NOT SOLD SEPARAT

Ring Retaining

1шт.

20

NSS

NOT SOLD SEPARAT

Pin

3шт.

21

NSS

NOT SOLD SEPARAT

Block Cylinder

1шт.

22

NSS

NOT SOLD SEPARAT

Washer

1шт.

23

NSS

NOT SOLD SEPARAT

Spring

1шт.

24

NSS

NOT SOLD SEPARAT

Washer

1шт.

25

NSS

NOT SOLD SEPARAT

Ring Retaining

1шт.

26

128929A1

LARGE PLATE

PLATE, LARGE

1шт.

27

1277297C1

NEEDLE BEARING

Needle

1шт.

28

H436704

GASKET,0.79mm Thk

Housing

1шт.

29

38-11207

LOCK PIN,4.76mm OD x 11.11mm L, Slotted

1шт.

30

N13234

COUPLING, BREAK AWAY

1шт.

31

N13262

PIN

1шт.

32

N13247

GEAR-SET

1шт.

33

181680A1

PIN,3/16" OD x 13/16" L

1шт.

34

N13999

PLATE,3.9985" OD x 1.58" ID

Cover

1шт.

35

H435776

O-RING,44.04mm ID x 51.10mm OD x 7.06mm W

1шт.

36

H437190

O-RING

1шт.

37

238-6238

O-RING,0.139" Thk x 3.484" ID, -238, Cl 6, 90 Duro

1шт.
