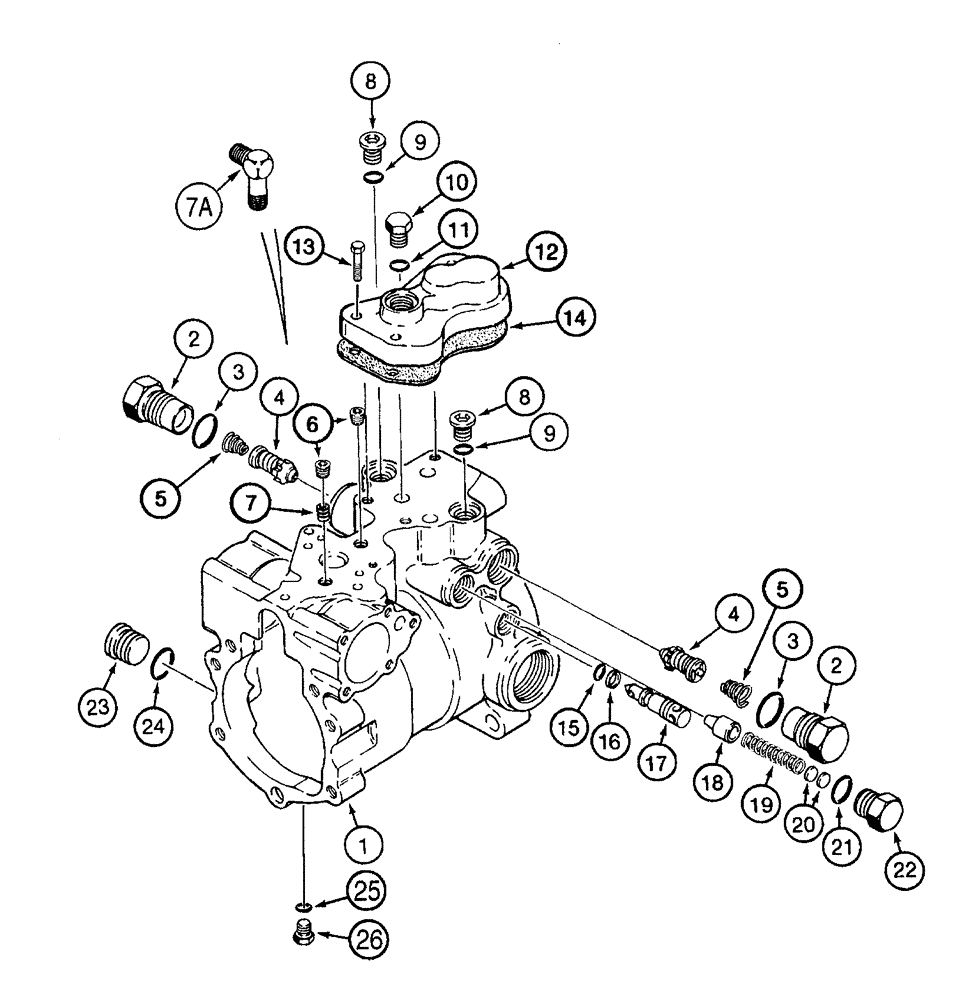

Запчасти Case 40XT (06-11) - PUMP, TANDEM (REAR) 404281A1 (06) - POWER TRAIN

404281A1

PUMP

Tandem; Incl. 1 - 26, Also Incl. Parts On Figure 06-08 - 06-13

1шт.

1

303718A1

HOUSING

1шт.

H436101

VALVE POPPET

Relief, Incl. 2 - 5

2шт.

2

NSS

NOT SOLD SEPARAT

Plug

1шт.

3

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

4

NSS

NOT SOLD SEPARAT

Valve Relief

1шт.

5

86993468

SPRING

1шт.

6

F23137

PLUG

1шт.

7

H435774

PLUG

1шт.

7a

H331884

ELBOW

90°

1шт.

8

76349

PLUG,9/16" - 18 ORB

Incl. 9

2шт.

9

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

10

76349

PLUG,9/16" - 18 ORB

Incl. 11

1шт.

11

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

12

101462A1

ADAPTER

1шт.

13

326-516

BOLT,Hex, 5/16" - 18 x 1", Gr 8

3шт.

14

303709A1

GASKET

1шт.

15

238-5012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

1шт.

16

S99877

BACK-UP RING,Split, 9.91mm ID x 12.65mm OD x 1.32mm Thk

Backup

1шт.

17

H436008

BY-PASS VALVE

Relief

1шт.

18

V38371

VALVE

Poppet

1шт.

19

244898A1

SPRING

1шт.

20

H407767

KIT

Shim

1шт.

21

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

22

N13266

PLUG

1шт.

23

9841223

PLUG,1-1/16" - 12 ORB

Incl. 24

1шт.

24

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

25

9672438

PLUG,7/16" - 20 ORB

Incl. 26

1шт.

26

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.
