Артикул
Название
Примечание
Количество
1
614-10025
BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8
Mounting; If Used
2шт.
2
895-15010
WASHER,11mm ID x 24mm OD x 2mm Thk
Mounting; If Used
2шт.

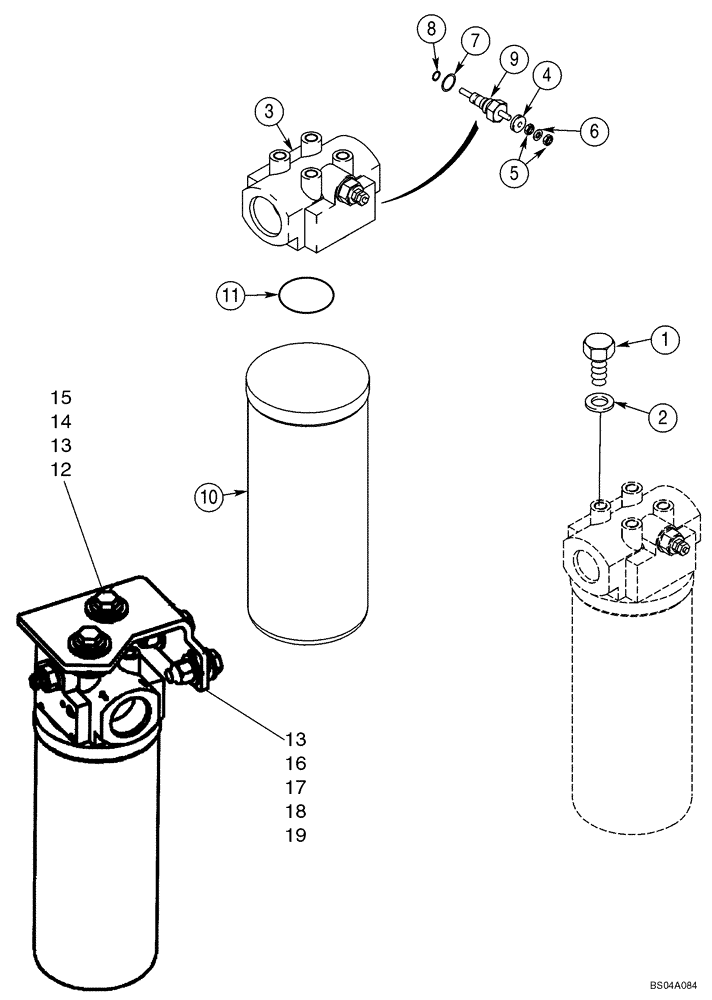

222756A2
FILTER ASSY
Return; Incl. 3 - 10
1шт.
3
222758A1
HEAD
If Used; Incl. N13268
1шт.
3
87439984
FILTER HEAD
Replaces 222758A1; Incl. N13268
1шт.
N13268
PRESSURE SWITCH
Incl. 4 - 10
1шт.
4
NSS
NOT SOLD SEPARAT
Washer; Red, White
1шт.
5
129-667
NUT,#10-32, LH
2шт.
6
493-21020
LOCK WASHER,Int Tooth, #10
(3/16")
1шт.
7
237-6006
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
1шт.
8
238-5011
O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro
1шт.
9
NSS
NOT SOLD SEPARAT
Indicator
1шт.
REF
INSTRUCTION
BOLT-ON MOUNTING
1шт.
12
814-10040
BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8
2шт.
13
895-15010
WASHER,11mm ID x 24mm OD x 2mm Thk
6шт.
14
D52275
WASHER,9.92mm ID x 31.75mm OD x 2.78mm Thk
4шт.
15
D52276
ISOLATOR,10.16mm ID x 28.07mm OD x mm L
Mounting, Radiator
2шт.
16
87403128
ANGLE
Filter Mount; Replaces 446002A1
1шт.
17
349192A1
SPACER
1шт.
18
614-10035
BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd
2шт.
19
832-10410
NUT,M10 x 1.5, Cl 8
2шт.
87407092
KIT
Filter Mounting Bracket Replacement; Incl. 13 (Quantity 2), 14, 15, 16, 18
1шт.
