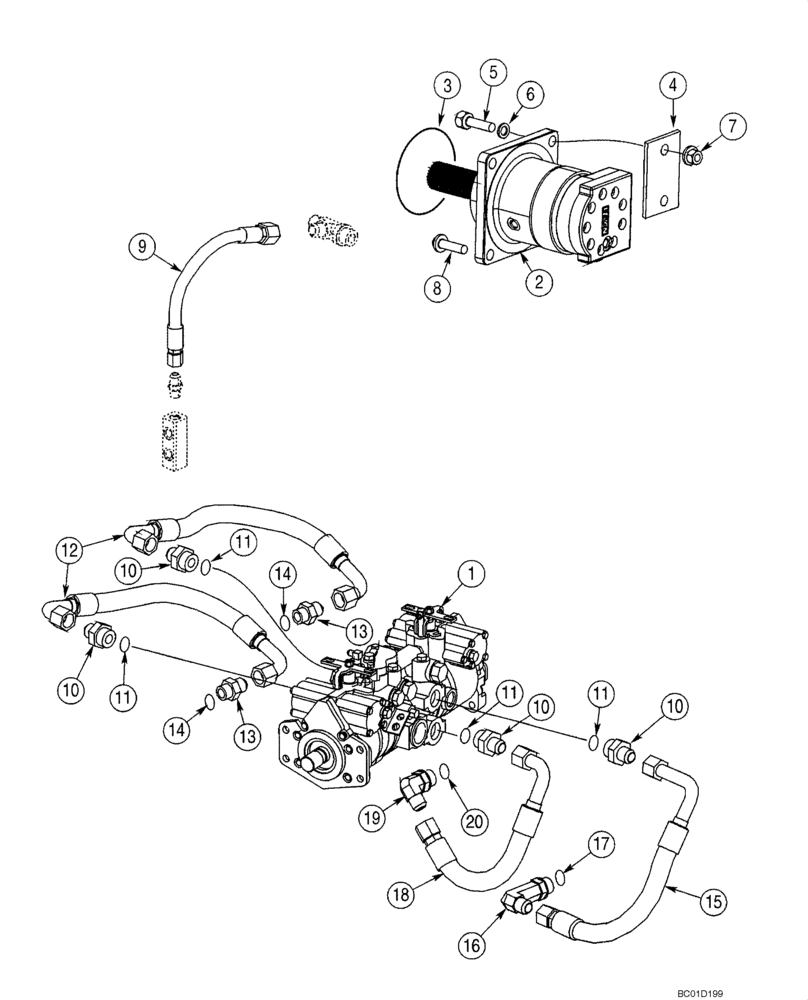

Запчасти Case 40XT (06-04) - HYDROSTATICS - PUMP AND DRIVE MOTORS (06) - POWER TRAIN

*

EUROPEAN MODELS, NORTH AMERICAN MODELS WITH HYDRAULIC BRAKES

1шт.

1

404281A1

PUMP

Tandem; See Figure 06-08

1шт.

1

404281A2

PUMP,46 CC

Tandem; See Figure 06-14

1шт.

1

87298032

REMAN-HYD PUMP

Remanufactured PUMP

1шт.

1

87298033

CORE-HYDRAULIC PUMP

Return No, PUMP

1шт.

2

371560A1

MOTOR, HYDRAULIC

W/ Brake, See Figure 06-22, 07-02 - 07-04

2шт.

2

87523839R

REMAN-HYD MOTOR

40XT Reman for new PN 371560A1

2шт.

2

87523839C

CORE-MOTOR HYDRAULIC

Return number

2шт.

2

87523839

MOTOR, HYDRAULIC,491.61CC

W/ Brake, Replaces 371560A1 See Fig 06-22A

2шт.

2

87523839R

REMAN-HYD MOTOR

40XT

2шт.

2

87523839C

CORE-MOTOR HYDRAULIC

Return number

2шт.

2

47508309

MOTOR, HYDRAULIC

W/ Brake, Replaces 87523839

2шт.

2

47508309R

REMAN-HYD MOTOR

W/ Brake

2шт.

2

47508309C

CORE-MOTOR HYDRAULIC

Return Number

2шт.

3

238-5433

O-RING,0.275" Thk x 5.475" ID, -433, Cl 5, 75 Duro

2шт.

4

401195A1

PLATE

Brake Tube Cover

2шт.

5

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

4шт.

6

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

4шт.

7

825-51412

FLANGE NUT,M12, Flg Ser

4шт.

8

396491A1

BOLT

8шт.

9

391752A1

HOSE ASSY.

521 mm, 20-1/2 in.; If Used; Left Hand Motor Case Drain; Attaches To 218-5239, 218-444; See Figure 06-01, Ref. 19, and 07-04, Ref. 7

1шт.

9

443937A1

521 mm, 20-1/2 in.; If Used; Left Hand Motor Case Drain; Attaches To 218-5239, 218-444; See Figure 06-01, Ref. 19, and 07-04, Ref. 7

1шт.

10

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Incl. 11

4шт.

11

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

12

393297A2

HOSE ASSY.

551 mm, 21-11/16 in.; Pump To Drive Motor

2шт.

13

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Incl. 14

2шт.

14

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

15

404483A1

HOSE ASSY.

475 mm, 18-3/4 in.; Pump To Drive Motor

1шт.

16

218-5553

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

1-1/6 fl x or, 90°; Incl. 17

1шт.

17

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

18

404486A2

HOSE ASSY.

475 mm, 18-3/4 in.; Pump To Drive Motor

1шт.

19

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Incl. 20

1шт.

20

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.
