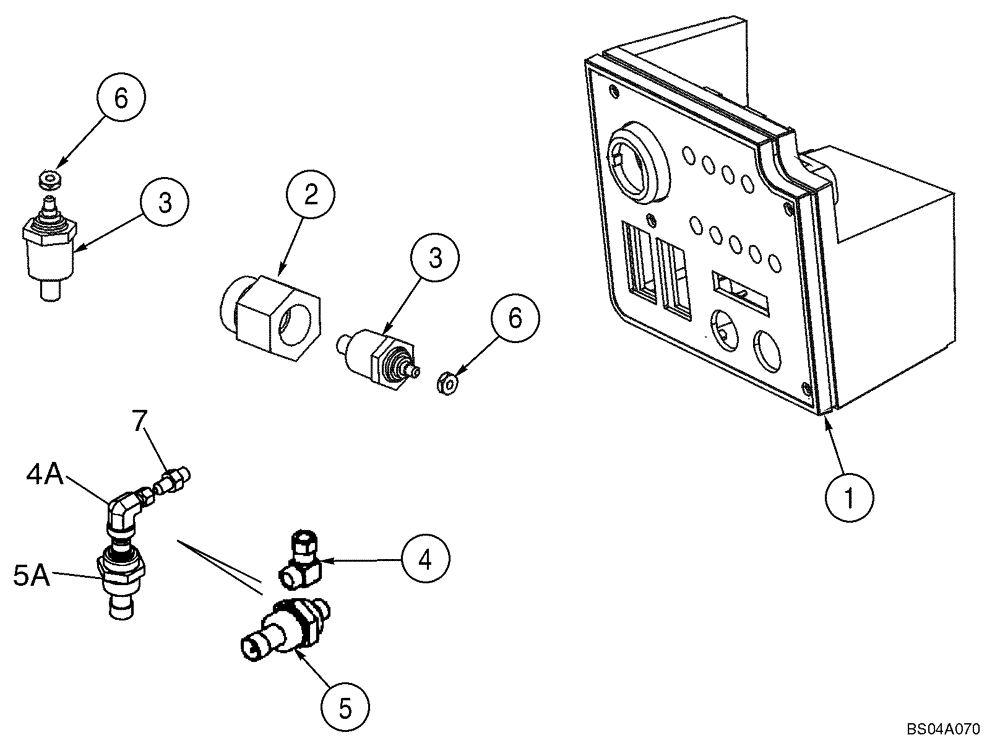

Запчасти Case 40XT (04-31) - ENGINE - SHUTDOWN, AUTOMATIC, NORTH AMERICAN MODELS (04) - ELECTRICAL SYSTEMS

1

189493A1

PANEL, INSTRUMENTS

PANEL, INSTRUMENT Right Hand Deluxe; See Figure 04-08, Ref. 11

1шт.

2

218-5424

FITTING

1-1/16 or x 1/2 fem PT

1шт.

3

A166057

TEMPERATURE SENDER,1/2" - 14 NPTF

Transmission Oil Temperature

2шт.

4

357762A1

ELBOW

1шт.

4a

87417547

90 ELBOW

Replaces 357762A1

1шт.

5

426036A1

SENSOR

Engine Oil Pressure

1шт.

5a

405439A1

PRESSURE SWITCH

Engine Oil; Replaces 426036A1

1шт.

6

225-14210

NUT,#10-32

2шт.
