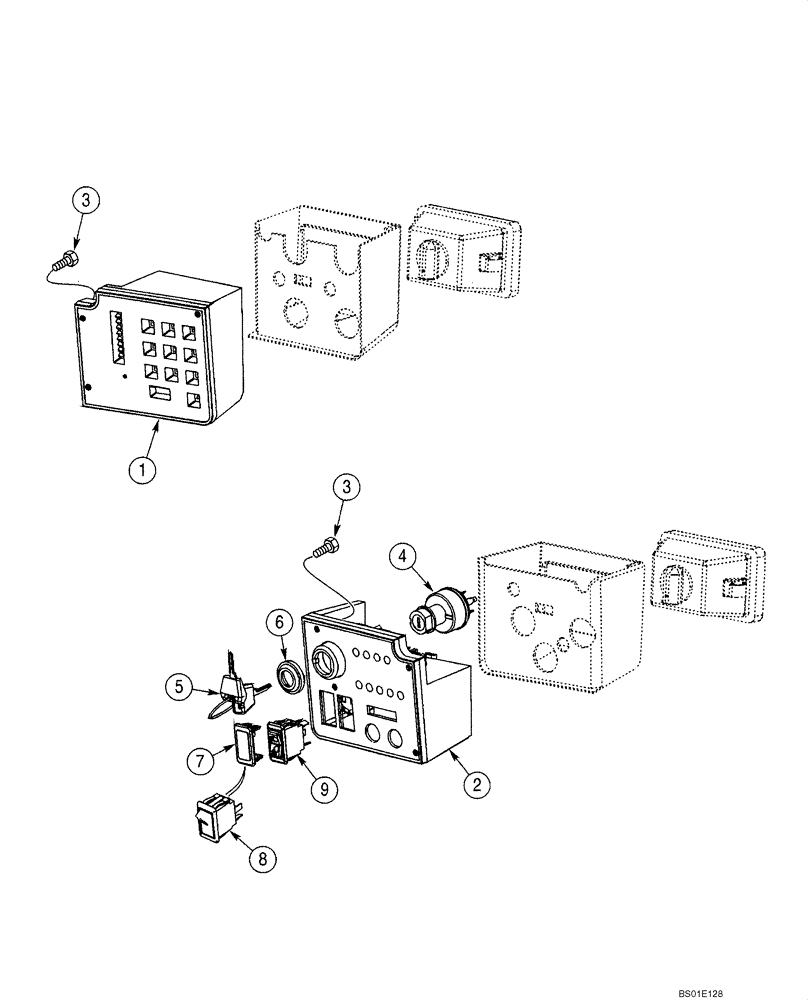

Запчасти Case 40XT (04-26) - INSTRUMENT PANEL - STANDARD (04) - ELECTRICAL SYSTEMS

1

389971A1

PANEL, INSTRUMENTS

PANEL, INSTRUMENT Left Hand

1шт.

389971A1R

REMAN-INSTR CLUSTER

40XT

1шт.

389971A1C

CORE-CLUSTER, INSTR

Return Number

1шт.

2

189492A3

PANEL, INSTRUMENTS

PANEL, INSTRUMENT Right Hand

1шт.

3

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

7шт.

4

282775A1

IGNITION SWITCH

Incl. 5, 6

1шт.

5

1964831C2

IGNITION KEY

Padded

1шт.

6

A77314

NUT

1шт.

7

86000535

PLUG,1.427" x .62", Plastic

Cover Switch Hole; Models without Thermostart

1шт.

8

223838A1

CONTROL

Rocker; Models With Thermostart; See Figure 02-06

1шт.

9

223836A1

LIGHT SWITCH

Rocker; Lamp

1шт.
