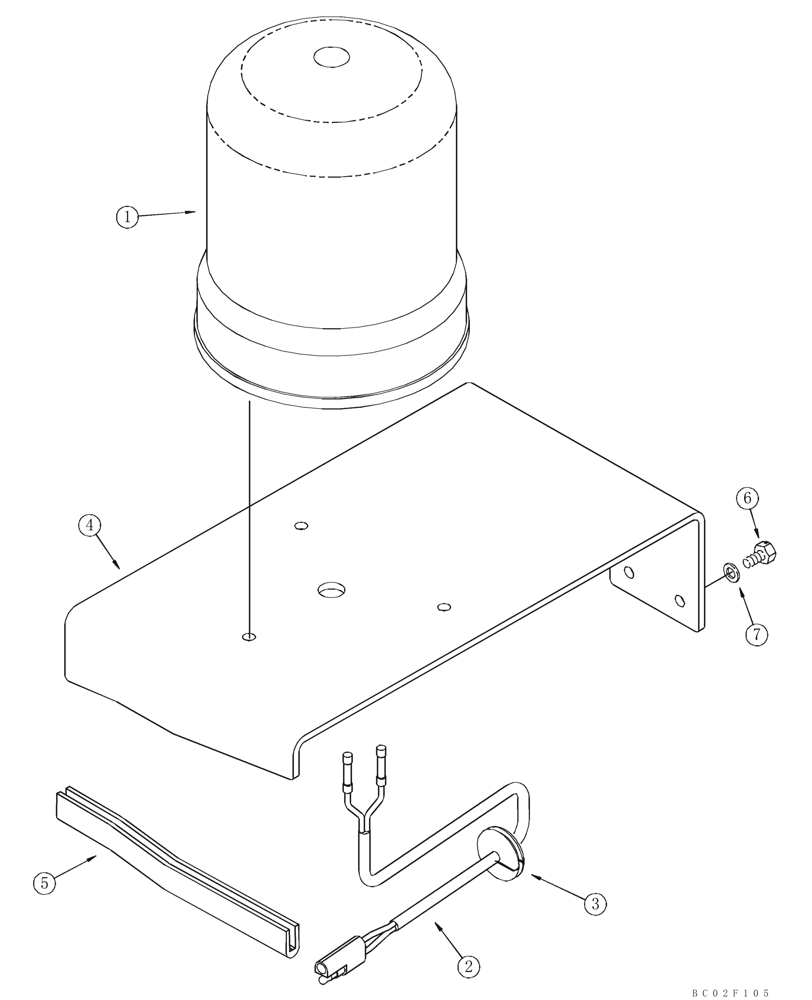

Запчасти Case 40XT (04-25) - LAMP ASSY - BEACON, ROTATING (04) - ELECTRICAL SYSTEMS

1

B506838

BEACON ROTATING

BEACON BEACON Rotating; Component Parts Not Serviced Separately; Replaces E99128

1шт.

2

293828A1

HARNESS

Rotating Beacon; Attaches To 373664A1; See Figure 04-08

1шт.

3

248-1237

GROMMET,1/4" ID x 1" Groove Dia, Diag Cut

No Longer Used, Order 87530614

1шт.

3

87530614

GROMMET

1шт.

4

414032A1

SUPPORT

1шт.

5

293470A1

ORNAMENTAL STRIP

TRIM

1шт.

6

281-54712

SCREW,Hex Wshr Hd, 1/4" - 20 x 3/4"

3шт.

7

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

3шт.

133714A1

BEACON SWITCH

Rocker, Beacon; See Figure 04-11

1шт.

A149800

FUSE,10 Amp

10 amp; See Figure 04-14

1шт.
