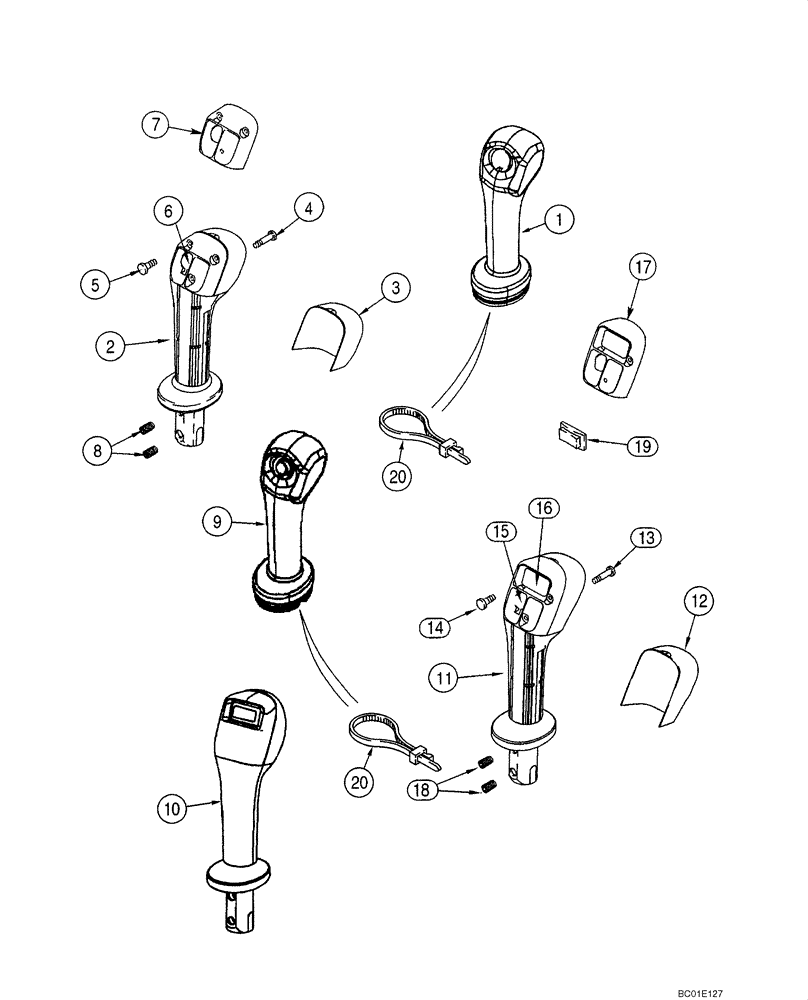

Запчасти Case 40XT (04-24) - CONTROLS, LEFT HAND - HANDLE (04) - ELECTRICAL SYSTEMS

1

369957A1

GRIP

HANDLE Control; North America Only; No Switches, Component Parts Not Serviced Separately

1шт.

235765A2

HANDLE

Control; Left Hand; Single Switch; For Decals, See Figure 09-59; Incl. 2 - 8

1шт.

2

NSS

NOT SOLD SEPARAT

HANDLE Control; Single Switch

1шт.

3

291792A1

CAP

Single Switch

1шт.

4

187-1931

SELF-TAP SCREW,Cross Pan Hd, #6 x 1"

No. 8-16 st x 1-1/8; Single Switch

1шт.

5

187-1930

SELF-TAP SCREW,Cross Pan Hd, #6 x 5/8"

No. 6 st x 5/8; Single Switch

3шт.

6

303892A1

SWITCH

Push Button, Brake, Single

1шт.

7

291795A2

PLASTIC PLATE

Single Switch

1шт.

8

878-2058

SET SCREW,Hex Skt, M5 x 8mm, Cone Pt

M5 x 8; Single Switch

2шт.

9

395944A2

HANDLE

Control; Europe Only; Left Hand; Single Switch; Brake, Component Parts Not Serviced Separately

1шт.

10

395926A2

HANDLE

Control; North America Only; Left Hand; Single Switch; High Flow, Component Parts Not Serviced Separately

1шт.

235909A3

HANDLE

Control; Left Hand, Two Switch; For Decals, See Figure 09-59; Incl. 11 - 19

1шт.

11

NSS

NOT SOLD SEPARAT

Handle control, Two Switch

1шт.

12

291793A1

CAP

Two Switch

1шт.

13

187-1931

SELF-TAP SCREW,Cross Pan Hd, #6 x 1"

Two Switch; No. 8-16 st x 1-1/8

1шт.

14

187-1930

SELF-TAP SCREW,Cross Pan Hd, #6 x 5/8"

Two Switch; No. 6 st x 5/8

3шт.

15

303892A1

SWITCH

Push Button; Brake

1шт.

16

291804A1

SWITCH

Rocker; High Flow

1шт.

17

291798A2

PLASTIC PLATE

Two Switch

1шт.

18

878-2058

SET SCREW,Hex Skt, M5 x 8mm, Cone Pt

M5 x 8; Two Switch

2шт.

19

303893A1

BOOT

Rocker Switch; Two

1шт.

20

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in.; Two Switch

1шт.

REF

INSTRUCTION

LEVER Control; Two Switch; See Figure 09-13

1шт.
