Запчасти Case 40XT (04-17) - HARNESS - DOOR, FRONT (04) - ELECTRICAL SYSTEMS

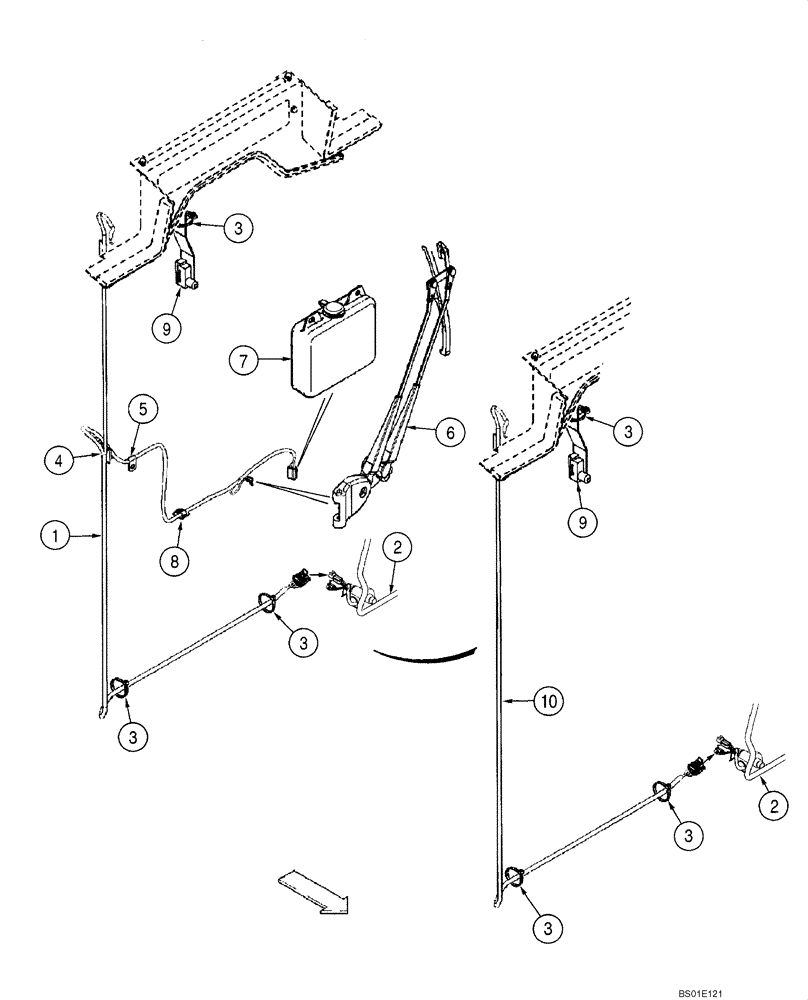

Схема запчастей Case 40XT - (04-17) - HARNESS - DOOR, FRONT (04) - ELECTRICAL SYSTEMS
3
9
8
3
1
2
10
6
3
3
2
4
7
9
3
5
3

Артикул

Название

Примечание

Количество

1

398298A2

HARNESS

Front door; Models With Glass; See Figure 09-30

1шт.

2

373664A5

HARNESS

Cab; See Figure 04-08

1шт.

3

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in.

3шт.

4

515-2179

CLAMP,5/16", Insul, 1/4" Bolt

(7.9 mm)

1шт.

5

A37179

CLIP

7.9 mm; Replaces 515-2379

1шт.

6

398129A2

KIT

Wiper; See Figure 04-22

1шт.

7

322651A1

RESERVOIR ASSY.

Component Parts Not Serviced Separately

1шт.

8

H439303

CLIP

1шт.

9

392269A2

SWITCH

Seat

1шт.

10

398374A2

HARNESS

Door Switch; Models With Lexan Front; See Figure 09-31

1шт.

Выбрано товаров: 10
