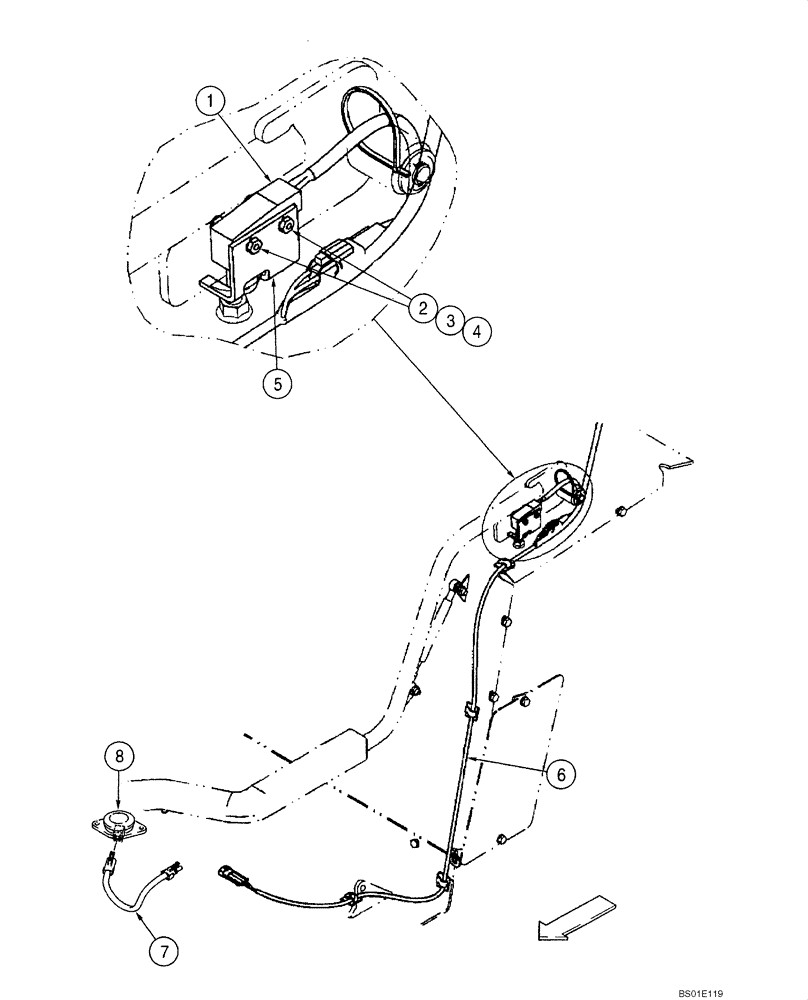

Запчасти Case 40XT (04-15) - HARNESS - SEAT BAR (04) - ELECTRICAL SYSTEMS

1

392269A2

SWITCH

Seat Bar; See Figure 09-25

1шт.

2

193-1003

NUT,Keps, w/LW,#6-32

2шт.

3

440-10620

SCREW,Phillips Drive, Pan HD, #6 - 32 x 1-1/4"

No. 6 x 1-1/4

2шт.

4

495-31016

WASHER,#6

2шт.

5

379616A2

ANGLE

1шт.

6

373664A5

HARNESS

Cab; See Figure 04-08

1шт.

7

302137A2

HARNESS

Seat Switch

1шт.

8

242306A2

SWITCH

Operator Presence; See Figure 09-23, 09-24

1шт.
