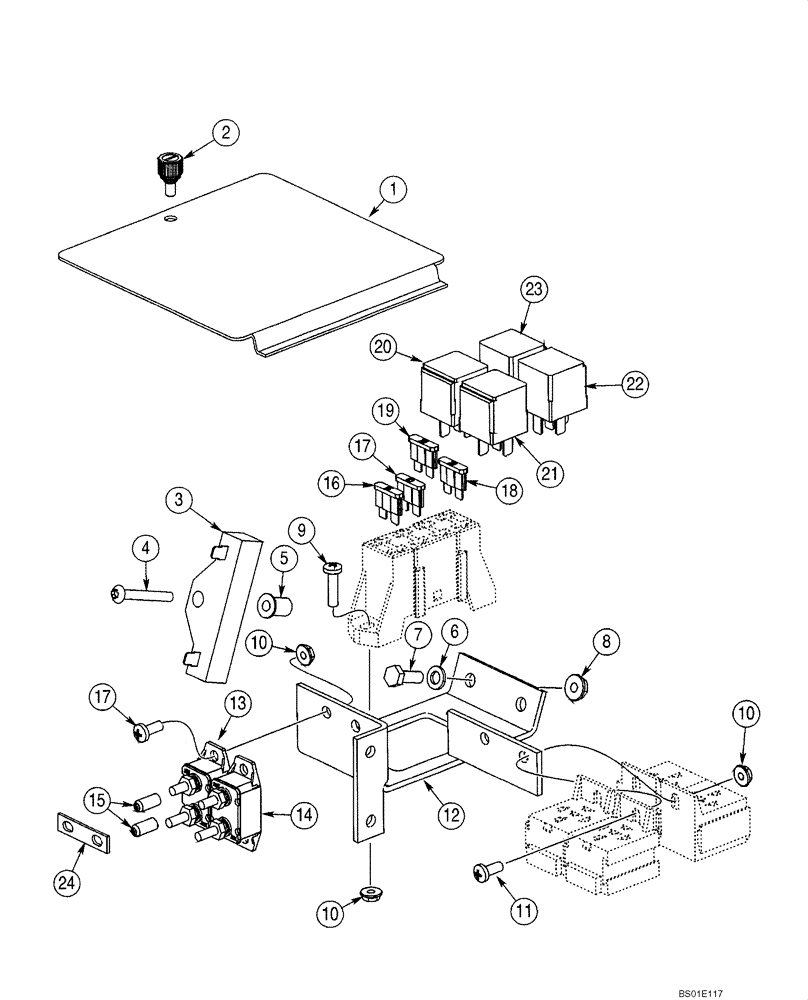

Запчасти Case 40XT (04-13) - FUSE AND RELAY - MAIN (04) - ELECTRICAL SYSTEMS

373663A7

HARNESS

Chassis; See Figure 04-06

1шт.

373664A5

HARNESS

Cab; See Figure 04-08

1шт.

1

379516A2

PANEL

Fuse And Relay Cover

1шт.

2

379518A1

SCREW,5mm OD x 21.3mm L

M5

1шт.

3

107558C1

RESISTOR

25 ohm

1шт.

4

190-104

SCREW,Phil Pan Hd, #10 - 32 x 1 1/2"

No. 10 NF x 1-1/2

1шт.

5

D122634

ISOLATOR,12.7mm OD x 14.1mm L

1шт.

6

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

7

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

2шт.

8

825-5146

SERRATED NUT,M6, Flg Ser

2шт.

9

840-1520

SCREW,Phillips Drive, Pan HD, M5 x 20mm, Cl 4.8

2шт.

10

825-5145

NUT,M5, Flg Ser

6шт.

11

840-1512

SCREW,Pan, M5 x 12mm, Gr 4.8

4шт.

12

378906A3

BRACKET

Assy

1шт.

13

303886A1

BREAKER

40 amp

1шт.

14

303884A1

BREAKER

15 amp

1шт.

15

247333A1

CAP

4шт.

16

A149801

FUSE,Lt Blue, 15 Amp

15 amp; Interlock

1шт.

17

A149800

FUSE,10 Amp

10 amp; Horn; Backup Alarm

1шт.

18

A149802

FUSE

20 amp; Lights

1шт.

19

A149804

FUSE

30 amp; Models With Heater And Glass Front Door

1шт.

20

314451A1

RELAY

40 amp, 12V; Starter

1шт.

21

314451A1

RELAY

40 amp, 12V; Main Power

1шт.

22

314451A1

RELAY

40 amp, 12V; Engine Shutdown

1шт.

23

314451A1

RELAY

40 amp, 12V; Loader Valve

1шт.

24

245860C1

BAR

2 Hole Circuit Breaker

1шт.
