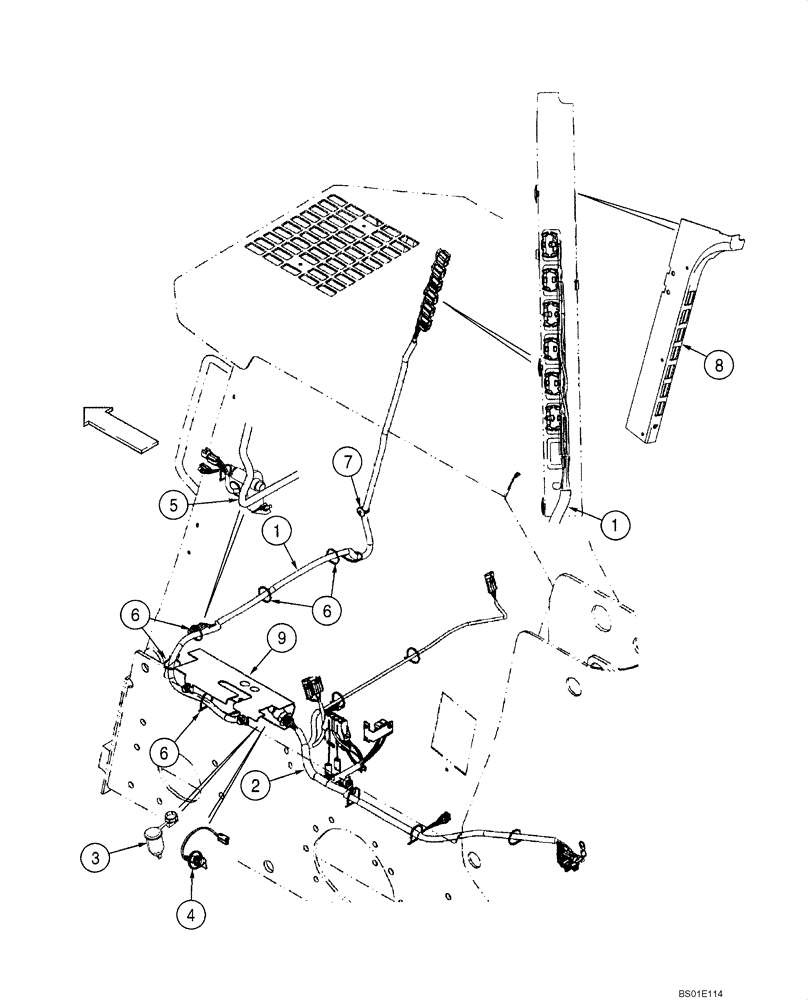

Запчасти Case 40XT (04-10) - HARNESS - CAB OPTIONS (04) - ELECTRICAL SYSTEMS

1

375634A4

HARNESS

Cab Options

1шт.

2

375633A8

HARNESS

Chassis Options; See Figure 04-09

1шт.

3

283779A1

POWER SOCKET,12V

North America Only; Accessory, See Figure 04-20

1шт.

4

REF

INSTRUCTION

Europe Only; Electrical Accessory Socket; See Figure 04-21

1шт.

5

373664A5

HARNESS

Main Cab; See Figure 04-08

1шт.

6

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in.

6шт.

7

378884A2

STRAP,254mm L

1шт.

8

376599A4

PANEL

Optional Switch; See Figure 04-11

1шт.

9

408464A2

COVER

Options Harness; See Figure 04-12

1шт.
