Запчасти Case 40XT (04-07) - HARNESS - CHASSIS, MAIN (04) - ELECTRICAL SYSTEMS

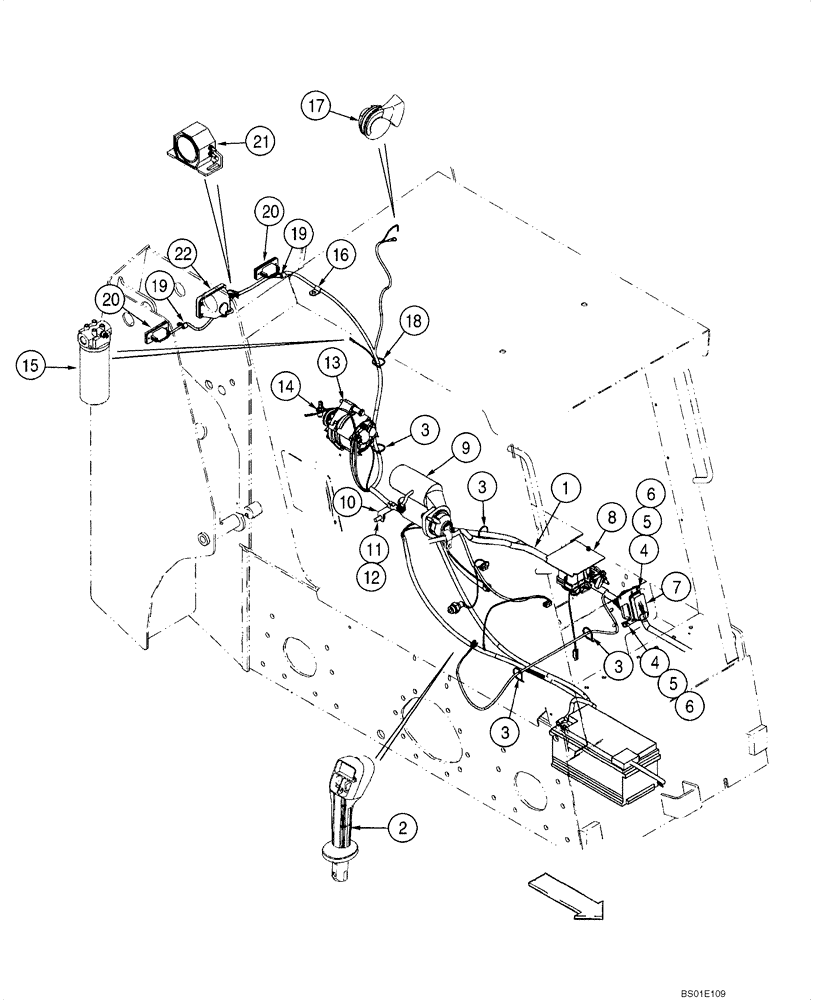

Схема запчастей Case 40XT - (04-07) - HARNESS - CHASSIS, MAIN (04) - ELECTRICAL SYSTEMS
19
4
12
5
10
20
13
11
6
6
3
5
16
3
17
9
22
3
8
19
1
7
21
4
18
3
2
14
20
15

Артикул

Название

Примечание

Количество

1

373663A7

HARNESS

Chassis; See Figure 04-06

1шт.

2

REF

INSTRUCTION

HANDLE Control; Models With Right Hand Control Handle; See Figure 04-23

1шт.

3

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP 15".

5шт.

4

614-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

2шт.

5

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

6

832-41306

NUT,M6 x 1, Cl 10

2шт.

7

NSS

NOT SOLD SEPARAT

SHROUD Connector

1шт.

8

REF

INSTRUCTION

BLOCK Main Fuse And Relay; See Figure 04-13

1шт.

9

86982709

STARTER MOTOR,12V, 2.5kW

ASSY See Figure 04-01; Replaces 1987559C1

1шт.

9

86982709R

REMAN-STARTER,12V, 2.5kW

Reman for New PN 86982709

1шт.

9

86982709C

CORE-STARTER,12V, 2.5kW

Return Part Number

1шт.

9

104452A2R

REMAN-STARTER

Remanufactured Starter 12 volt, 2.5KW

1шт.

9

104452A1C

CORE-STARTER

Return Part Number, Starter12 volt, 2.5KW

1шт.

10

405163A1

CLIP

1шт.

11

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

1шт.

12

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13.5 x 28 x 4 mm

1шт.

13

A187873

ALTERNATOR,12V, 65A

12V, 65 amp; See Figure 04-02

1шт.

13

A187873GV

ALTERNATOR

Value, 12V, 65A

1шт.

14

1345488C3

TEMPERATURE SWITCH

Outboard Engine Coolant Port

1шт.

15

222756A2

FILTER ASSY

See Figure 06-05

1шт.

16

515-25111

CLAMP,7/16", Insul, 1/2" Bolt

1шт.

17

254130A1

HORN

12V; See Figure 04-29

1шт.

18

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in.; Models With Horn

1шт.

19

516-2295

CLAMP,J, 7/16" Insul, 5/16" Bolt

2шт.

20

233163A2

LAMP, TAIL

LIGHT, TAIL See Figure 04-27

2шт.

21

REF

INSTRUCTION

ALARM Backup; See Figure 04-30

1шт.

22

222004A2

HEADLIGHT,Halogen, 12V, 50W, Clear

Work; Rear; See Figure 04-27

1шт.

Выбрано товаров: 27
