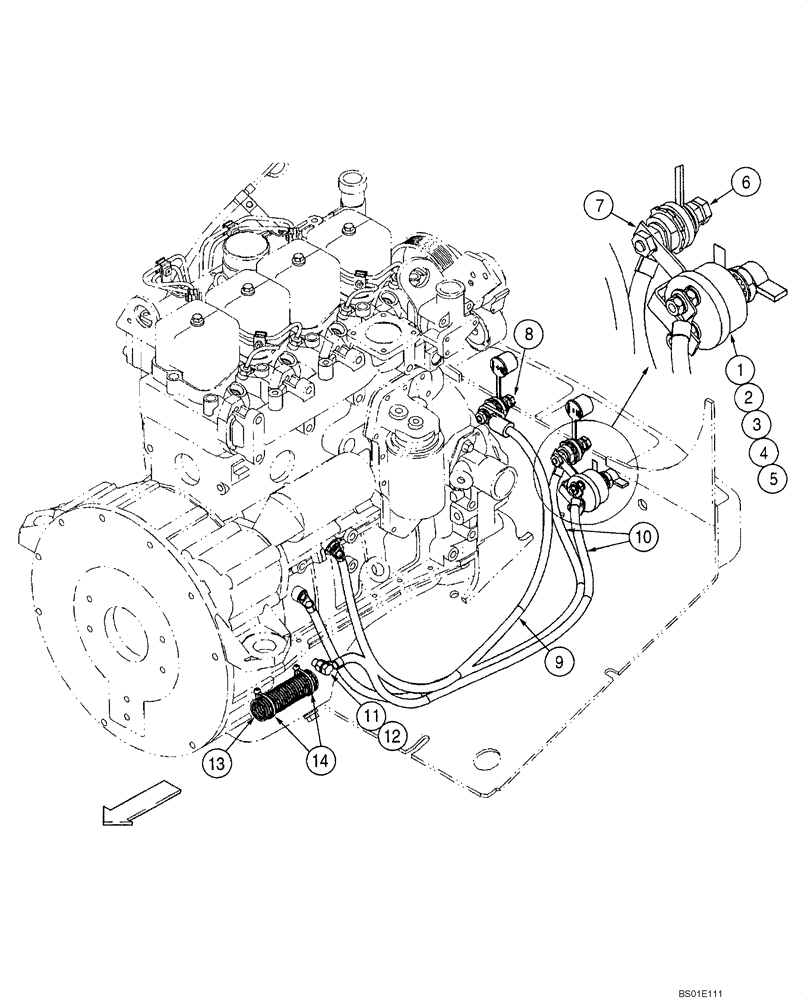

Запчасти Case 40XT (04-05) - BATTERY - DISCONNECT SWITCH AND JUMP START (04) - ELECTRICAL SYSTEMS

R52278

SWITCH

Disconnect; For Decal 176332A1; See Figure 09-60; Incl. 1 - 5

1шт.

87458467

ROTARY SWITCH

Component Parts Not Serviced Separately; Replaces R52278

1шт.

1

NSS

NOT SOLD SEPARAT

BODY

1шт.

2

NSS

NOT SOLD SEPARAT

NUT 3/8 NF

6шт.

3

492-11038

LOCK WASHER,3/8"

4шт.

4

131-573

NUT,#10-32

4шт.

5

492-11010

LOCK WASHER,#10

4шт.

6

399384A1

TERMINAL CONNECTOR

Negative Remote Jump Start

1шт.

7

399665A2

ANCHOR

BRACKET Battery Jump Start

1шт.

8

399383A1

TERMINAL CONNECTOR,3/8"-16 UNC

Positive Remote Jump Start

1шт.

9

399581A1

CABLE

ASSY Positive Battery

1шт.

10

399580A1

CABLE

ASSY Negative Battery

2шт.

11

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

1шт.

12

832-41312

NUT,M12 x 1.75, Cl 10

1шт.

13

308651A1

COVER

Protective

1шт.

14

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in.

2шт.
