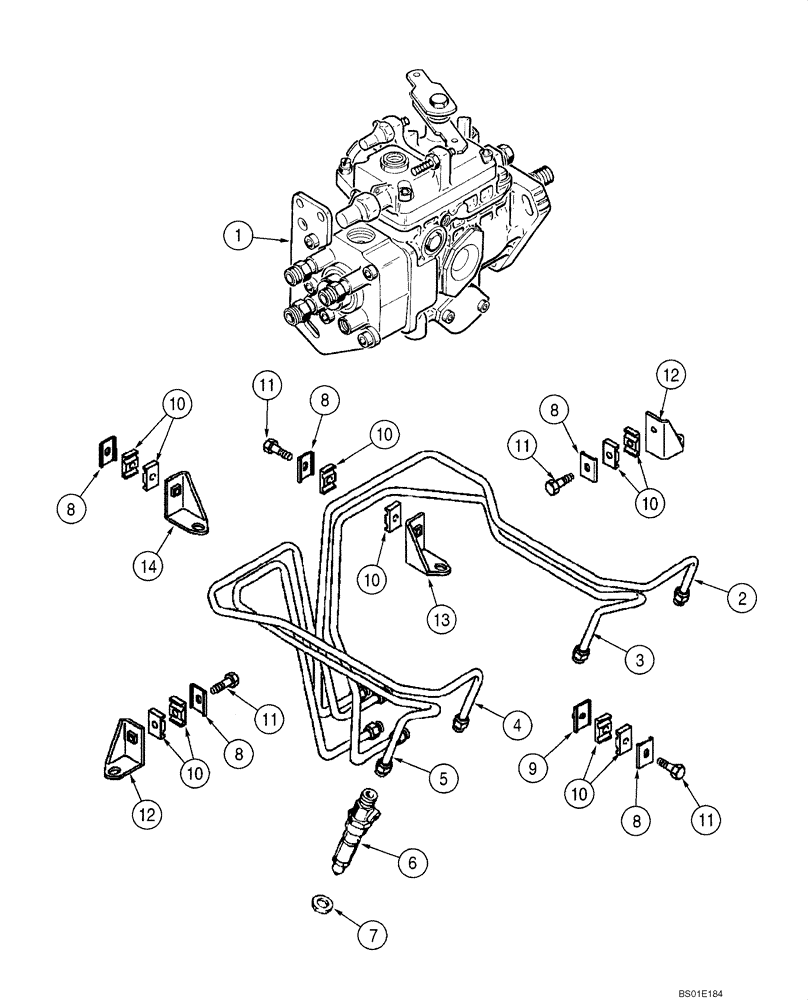

Запчасти Case 40XT (03-04) - FUEL INJECTION SYSTEM (03) - FUEL SYSTEM

1

J935677

PUMP, FUEL INJECTION

PUMP, INJECTION ASSY See Figure 03-06

1шт.

2

J935691

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 750 mm L

No. 1

1шт.

3

J935693

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 750 mm L

No. 2

1шт.

4

J935696

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 750 mm L

No. 3

1шт.

5

J935698

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 750 mm L

No. 4

1шт.

6

J935213

INJECTOR ASSY.

Nozzle; See Figure 03-07

4шт.

6

JR935213

REMAN-FUEL INJECTOR

REMANUFACTURED INJECTION NOZZLE

4шт.

6

JC935213

CORE-FUEL INJECTOR

Return Number, INJECTION NOZZLE

4шт.

7

J923261

WASHER,7.2mm ID x 15mm OD x 2.5mm Thk

2.5 mm; See Figure 03-07

4шт.

8

CURJ904711

CLAMP

8шт.

9

J907546

BRACE

4шт.

10

J917746

CLAMP

16шт.

11

J920854

CAPTIVE WASHER SCREW,HWH, M5 x 0.8 x 24.5mm, Cl 8.8

8шт.

12

J935746

BRACE

2шт.

13

J935748

BRACE

1шт.

14

J935700

BRACE

1шт.
