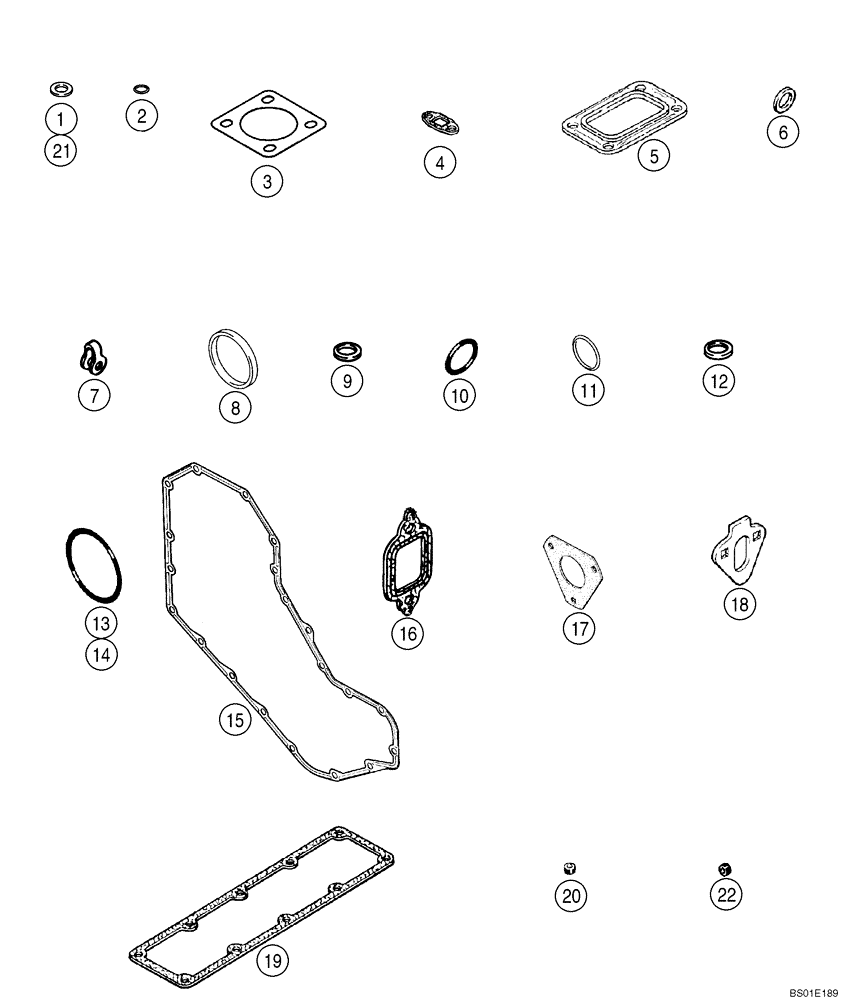

Запчасти Case 40XT (02-23) - GASKET KIT, BASIC SERVICE ENGINE (02) - ENGINE

A77993

GASKET KIT

Kit, Gasket - Basic Engine 4 Cyl. Cav And VE Pumps; Incl. 1 - 21

1шт.

1

222-993

GASKET,3/8 Tube, Fl, Copper

Not Used In This Application

2шт.

2

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

See Figure 02-11, Ref. 15

2шт.

3

J912220

GASKET,0.4mm Thk

Pipe; See Figure 02-03, Ref. 10

1шт.

4

J937706

GASKET,0.79mm Thk

Mounting, Not Used In This Application

2шт.

5

J919369

GASKET,0.5mm Thk

Mounting, Not Used In This Application

1шт.

6

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

See Figure 02-12, Ref. 12

1шт.

7

J903380

SEAL

See Figure 03-05, Ref. 21

4шт.

8

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

See Figure 02-09, Ref. 20

1шт.

9

J937142

SEAL,7mm ID x 15mm OD x 1.5mm Thk

1,5 mm; See Figure 03-04, Ref. 7 and 03-07, Ref. 3; Replaces J923261

4шт.

10

J906696

SEAL,41mm ID x 43mm OD x 2.5mm H

38 mm ID; Not Used In This Application

1шт.

11

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

50 mm ID; See Figure 02-16, Ref. 32

1шт.

12

J909356

SEAL,Square, 1.68mm Thk x 15.6mm ID, -16

See Figure 03-07, Ref. 2

4шт.

13

J910517

O-RING

See Figure 02-16, Ref. 40

1шт.

14

J912473

SEAL,157mm ID x 163.18mm OD x 7.03mm Thk

SEALRING See Figure 02-18, Ref. 2

1шт.

15

J914385

GASKET,1.02mm Thk

Cover; See Figure 02-09, Ref. 3

1шт.

16

J927154

GASKET,0.38mm Thk

Manifold; See Figure 02-10, Ref. 2

4шт.

17

87413428

GASKET,1.2mm Thk

Mounting, See Figure 03-06, Ref. 29; Replaces J931607

1шт.

18

J939258

GASKET,1.21mm Thk

Mounting; See Figure 03-05, Ref. 3; Replaces J931059

1шт.

19

J938153

MANIFOLD GASKET,0.8mm Thk

Manifold; See Figure 02-10, Ref. 7

1шт.

20

222-101

SLEEVE,3/16" Tube

See Fig 03-05, Ref. 14

3шт.

21

87415913

SEALING WASHER,11.71mm ID x 19.3mm OD x 1.27mm Thk

12 x 19 x 1.5 mm; See Figure 03-05, Ref. 7; Replaces J935171

4шт.

22

222-103

SLEEVE,5/16" Tube

See Figure 03-05, Ref. 9

4шт.
