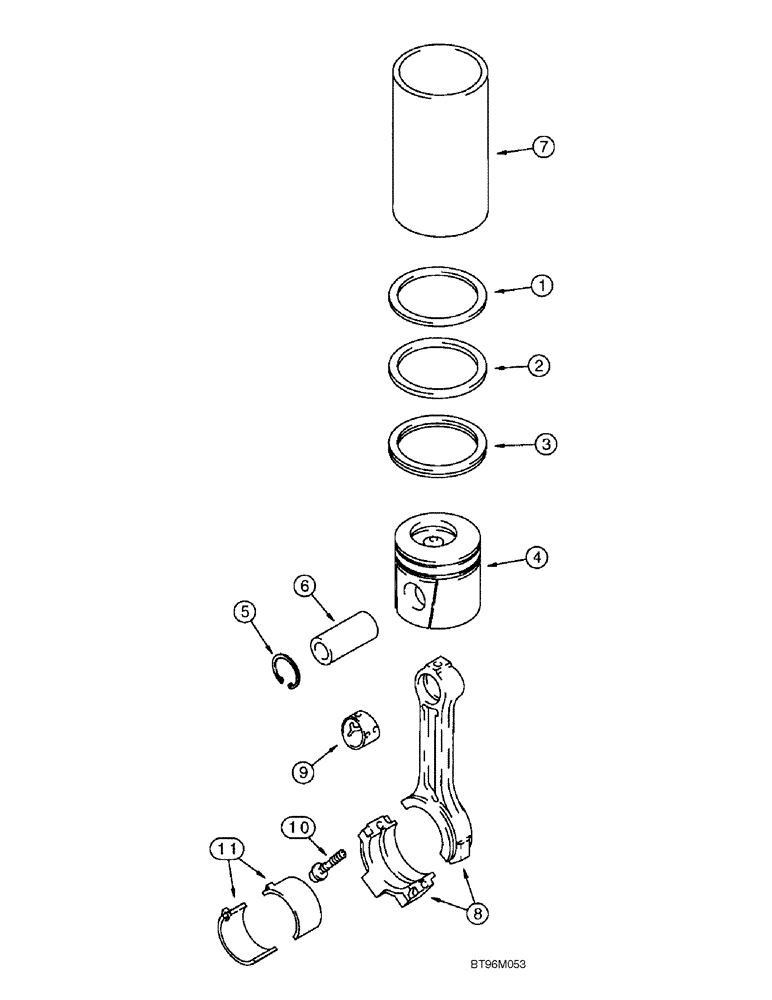

Запчасти Case 40XT (02-19) - PISTONS - CONNECTING RODS (02) - ENGINE

J800681

SET OF PARTS

KIT Piston, Use To Service 3935447; Incl. 1 - 5, J804930

4шт.

J800682

SET OF PARTS

KIT Piston, Use To Service 3935442; Incl. 1 - 5, J804930

4шт.

J800683

SET OF PARTS

KIT Piston, Use To Service 3935443; Incl. 1 - 5, J804930

4шт.

J804930

PISTON RING SET

Standard; Incl. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

RING Top

1шт.

2

NSS

NOT SOLD SEPARAT

RING Middle

1шт.

3

NSS

NOT SOLD SEPARAT

Ring, Piston oil

1шт.

4

NSS

NOT SOLD SEPARAT

Piston

1шт.

5

J920691

SPECIAL RING

2шт.

6

J934047

PIN,40mm OD x 82.68mm L

1шт.

J800684

SET OF PARTS

KIT Piston; Oversize; 0.5 mm; Incl. 1 -5, J804931

4шт.

J804931

PISTON RING SET

Oversize; 0.5 mm; Incl. Ref. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

RING Top

1шт.

3

NSS

NOT SOLD SEPARAT

Ring, Piston oil

1шт.

2

NSS

NOT SOLD SEPARAT

RING Middle

1шт.

4

NSS

NOT SOLD SEPARAT

Piston

1шт.

5

J920691

SPECIAL RING

2шт.

6

J934047

PIN,40mm OD x 82.68mm L

1шт.

J804932

PISTON RING SET

Oversize; 1.0 mm; Incl. Ref. 1 - 3

1шт.

J800685

SET OF PARTS

KIT Piston; Oversize; 1.0 mm; Incl. 1 - 5, J804932

4шт.

3

NSS

NOT SOLD SEPARAT

Ring, Piston oil

1шт.

1

NSS

NOT SOLD SEPARAT

RING Top

1шт.

2

NSS

NOT SOLD SEPARAT

RING Middle

1шт.

4

NSS

NOT SOLD SEPARAT

Piston

1шт.

5

J920691

SPECIAL RING

2шт.

6

J934047

PIN,40mm OD x 82.68mm L

1шт.

7

J904166

SLEEVE

Use With J800681, J800682, J800683

1шт.

8

J942581

ROD, CONNECTING

ASSY Incl. 8 - 10; If Used; Machined; Machined Rods and Fractures Rods Can Not Be Used In The Same Engine Due To Weight Differences

4шт.

8

JR942581

REMAN-CONNECTING ROD

Assy, If Used, Machined

4шт.

8

JC942581

CORE-ROD CONNECTING

Return Number

4шт.

8

87413279

ROD, CONNECTING

4шт.

8

87417069

REMAN-CONNECTING ROD

Assy, If Used, Fractured Split

4шт.

8

87417070

CORE-ROD CONNECTING

Return Number

4шт.

9

J941476

BUSHING

ASSY Incl. 8 - 10; If Used; Fractured Split; Machined Rods and Fractures Rods Can Not Be Used In The Same Engine Due To Weight Differences

1шт.

10

J900919

BOLT,Flng, MJ11 x 1.25 x 59mm, Cl 12.9

M11 x 59

2шт.

11

A77894

BEARING SET,69mm ID x 73.53mm OD x 31mm W

Standard

4шт.

11

A77466

BEARING SET

Undersize; 0.25 mm

4шт.

11

A77467

BEARING LINER

Undersize; 0.50 mm

4шт.

11

A77468

BEARING SET

Undersize; 0.75 mm

4шт.

11

A77469

BEARING SET

Undersize; 1.00 mm

4шт.

9

87403209

BUSHING,40.03mm ID x 43.1mm OD x 38.1mm L

1шт.

10

87413283

BOLT,Flng, M11 x 1.25 x 58mm, Cl 10.9

M11 x 59

2шт.

11

87425525

CRANKSHAFT BEARING

Standard

4шт.

11

87425526

CRANKSHAFT BEARING

Undersize; 0.25 mm

4шт.

11

87425527

BEARING SET

Undersize; 0.50 mm

4шт.

11

87425528

CRANKSHAFT BEARING

Undersize; 0.75 mm

4шт.

11

87425529

CRANKSHAFT BEARING

Undersize; 1.00 mm

4шт.
