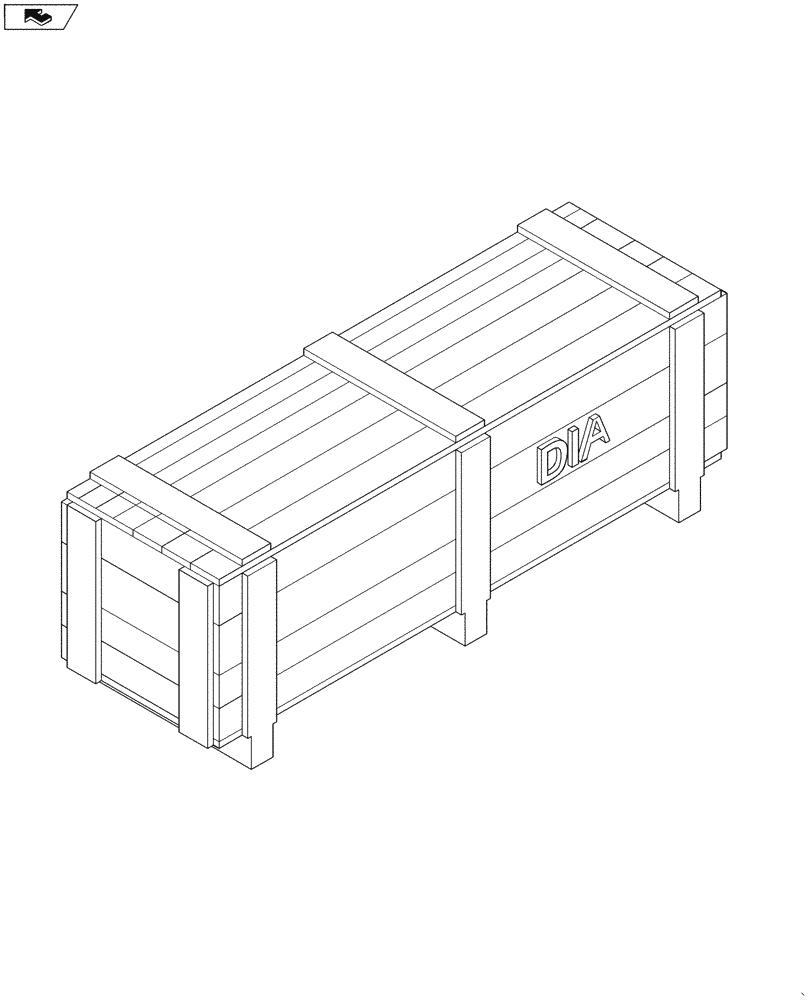

Запчасти Case 40XT (88.088.01) - DIA KIT, CONTROL /A, FOOT THROTTLE EUROPE (88) - ACCESSORIES

1

431773A1

SERVICE KIT

Control, Foot Throttle Europe

1шт.

2

186905A1

BUSHING

Bearing, Throttle

1шт.

3

187035A2

SLEEVE

Throttle Pivot

1шт.

4

225-14210

NUT,#10-32

3шт.

5

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

4шт.

6

376948A1

BOLT

Pivotm12 x 80mm, Class 10.9, ZND

1шт.

7

376951A2

CONTROL

Weld Assembly, Throttle/Foot

1шт.

8

379301A1

CLEVIS,#10 - 32

Auxiliary Control Special

1шт.

9

387006A1

BRACKET

Foot Throttle Cbl Mounting

1шт.

10

387007A2

BRACKET

Throttle Cbl Mounting

1шт.

11

387014A1

CABLE

Throttle

1шт.

12

425-144

JAM NUT,Jam, 1/4"-20, G5

1шт.

13

431775A1

PEDAL ASSY.

Foot Throttle Europe

1шт.

14

434778A1

TENSION SPRING

1шт.

15

492-11010

LOCK WASHER,#10

1шт.

16

495-71053

WASHER,13.49mm ID x 44.45mm OD x 2.54mm Thk

1шт.

17

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

4шт.

18

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

1шт.

19

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

4шт.

20

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

2шт.

21

D131983

COTTER PIN,1.04mm OD x 21.4mm L, Ring

Ring

1шт.

22

H32961

CLEVIS COUPLING,7.94mm OD x 29.34mm L

Pin

1шт.

23

L12437

BALL JOINT,#10 - 32 x 7/8"

1шт.

24

L14781

BUSHING,12.8mm ID x 15.94mm OD x 25.4mm L

Oilite

1шт.
