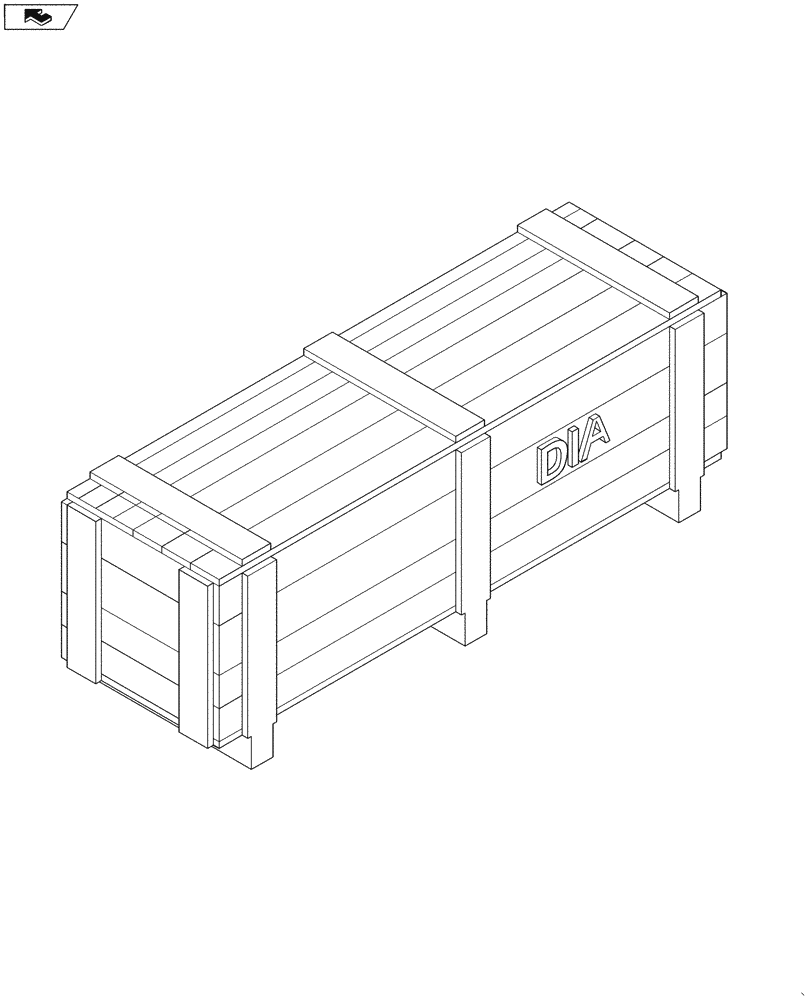

Запчасти Case 40XT (88.035.01) - DIA KIT, INSTALLATION, RIDE CONTROL, FIELD KIT (18R) (88) - ACCESSORIES

1

397187A1

SERVICE KIT

I/, Ride Control, Field Kit, 18r, Incl 2 - 31

1шт.

2

7-18894

Installation

1шт.

3

214-1444

HOSE CLAMP,58.6mm - 82.5mm

Type F 44 NH

2шт.

4

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

Short Tubenh

1шт.

5

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

Short Tube

1шт.

6

218-5222

TEE,37 Degree, 9/16"-18, x 9/16"-18, Fem Sw Run

1шт.

7

218-5280

ELBOW,90 Degree, 3/4"-16, 37 Degree x 9/16"-18, O-Ring

Elbow

2шт.

8

218-5351

HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, O-Ring

1шт.

9

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

Square

2шт.

10

255927A1

WARNING DECAL

Ride Cont Warning

1шт.

11

384260A1

WARNING DECAL,168mm x 88mm H

Accumulator In System Warning

1шт.

12

304083A1

DECAL

Ride Control Option_Decalcomania

2шт.

13

87428444

VALVE

Solenoid Ride Control

1шт.

14

411378A2

SUPPORT

Bracket, Valve Mounting

1шт.

15

310838A1

HARNESS

Ride Control All Xt

1шт.

16

395831A1

ACCUMULATOR

Hydraulic

1шт.

17

396559A1

HOSE ASSY.

Valve To Rod End

1шт.

18

396561A1

HOSE ASSY.

Vavle To Base

1шт.

19

396563A1

HOSE ASSY.

Valve To Tank

1шт.

20

396565A1

HOSE ASSY.

Valve To Acc

1шт.

21

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

2шт.

22

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

2шт.

23

814-8080

BOLT,Hex, M8 x 1.25 x 80mm, Cl 8.8

2шт.

24

832-41308

NUT,M8 x 1.25, Cl 10

2шт.

25

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

26

379501A1

HANDLE

RH-Horn, Ride Cont,Turn Signal

1шт.

27

INF10242

Schematic, Hydraulic Lift, Plumbing

1шт.

28

218-5182

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Without-Ring

1шт.

29

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

30

380017A1

LEVER ASSY.

With, Controls Deluxe RH

1шт.

31

372075A2

BOOT

Adapter, Mounting Ux02 For Xt Handles

1шт.
