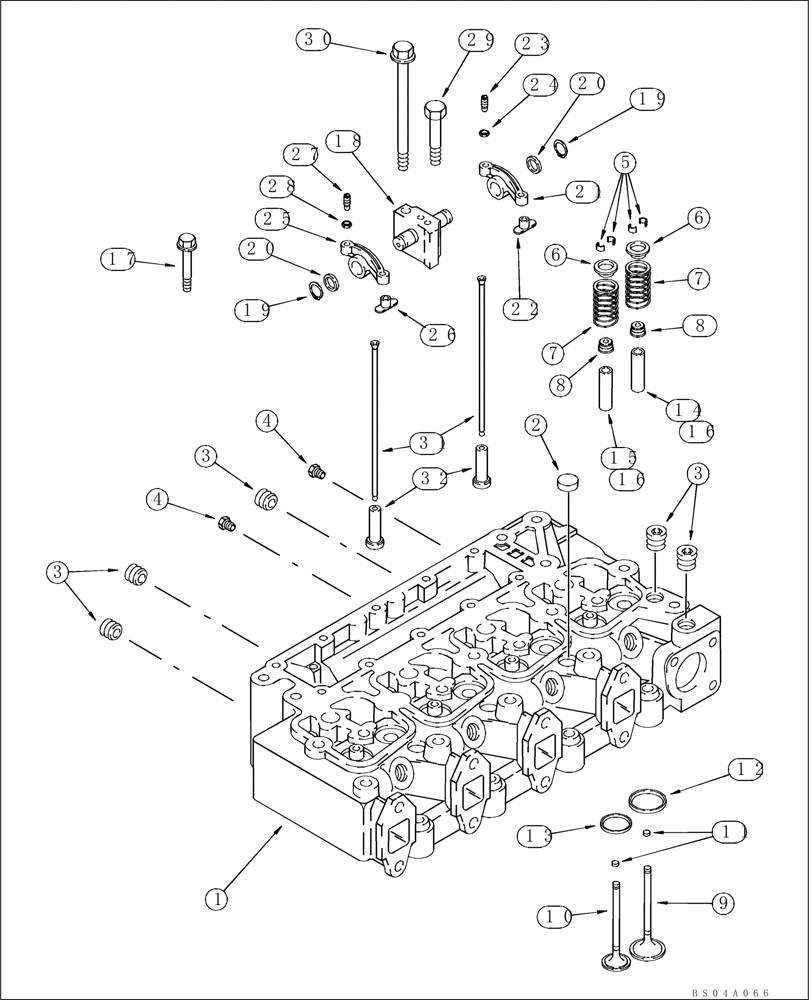

Запчасти Case 40XT (02-14) - CYLINDER HEAD - VALVE MECHANISM, 4-390 EMISSIONS CERTIFIED ENGINE (02) - ENGINE
№
Артикул
Название
Примечание
Количество
J933494
HEAD (CYLINDER)
Incl. 1 - 10; If Used
1шт.
JR933494
REMAN-CYLINDER HEAD
Reman For New P/N J933494
1шт.
JC930913
CORE-CYLINDER HEAD
Return Part Number For J933494
1шт.
87429905
HEAD (CYLINDER)
Incl. 1 - 10; If Used
1шт.
87429906
REMAN-CYLINDER HEAD
Cylinder Head
1шт.
87429907
CORE-CYLINDER HEAD
Return Part Number
1шт.
1
J933419
HEAD (CYLINDER)
Incl. 2; Part Of J933494
1шт.
1
NSS
NOT SOLD SEPARAT
HEAD Cylinder Incl. 2; Part Of 87429905
1шт.
2
A77783
PLUG
Expansion, 21 mm OD
3шт.
3
217-466
DRAIN PLUG,Sq Soc, 1/2" - 14, NTPF
5шт.
4
J906619
PLUG,1/8" - 27
1/8 PT
2шт.
5
CASJ900250
RETAINER
16шт.
6
J935038
RETAINER
Used With J933494
8шт.
6
87433959
RETAINER
Valve Spring; Used With 87429905
8шт.
7
J932453
SPRING
8шт.
8
J921640
SEAL
Used With J933494
8шт.
8
87433962
SEAL
Valve Stem; Used With 87429905
8шт.
9
J920867
VALVE
Intake
4шт.
10
J920868
VALVE
Exhaust
4шт.
11
J910412
WEAR PAD
Intake And Exhaust; Service Repair Only
1шт.
12
J906854
SEAT, VALVE
Intake; Service Repair Only
4шт.
13
J904105
SEAT, VALVE
Exhaust; Service Repair Only
4шт.
14
J904408
GUIDE
14 mm OD; Intake; Service Repair Only
4шт.
15
J904409
GUIDE
14 mm OD; Exhaust; Service Repair Only
4шт.
17
J920779
BOLT,Flng, M12 x 1.75 x 70mm, Cl 12.9
70 mm, Bolts By Exhaust Manifold
4шт.
17
J920780
BOLT,Flng, M12 x 1.75 x 120mm, Cl 12.9
120 mm
10шт.
18
J922488
SUPPORT
4шт.
19
J900242
SNAP RING
8шт.
20
J900245
WASHER
8шт.
21
J910811
ROCKER
Incl. 22 - 24
4шт.
22
NSS
NOT SOLD SEPARAT
INSERT
1шт.
23
J937438
ADJUSTMENT SCREW,Hex Skt, 3/8" - 24 x 33mm, Adj, Ball Point
Replaces J934086
1шт.
25
J910810
ROCKER
Incl. 26 - 28
4шт.
26
NSS
NOT SOLD SEPARAT
INSERT
1шт.
27
J937438
ADJUSTMENT SCREW,Hex Skt, 3/8" - 24 x 33mm, Adj, Ball Point
Replaces J934086
1шт.
29
J901221
BOLT
M8 x 75
4шт.
30
J920781
BOLT,Flng, M12 x 1.75 x 180mm, Cl 12.9
180 mm
4шт.
31
J284377
PUSH ROD
8шт.
Выбрано товаров: 42
