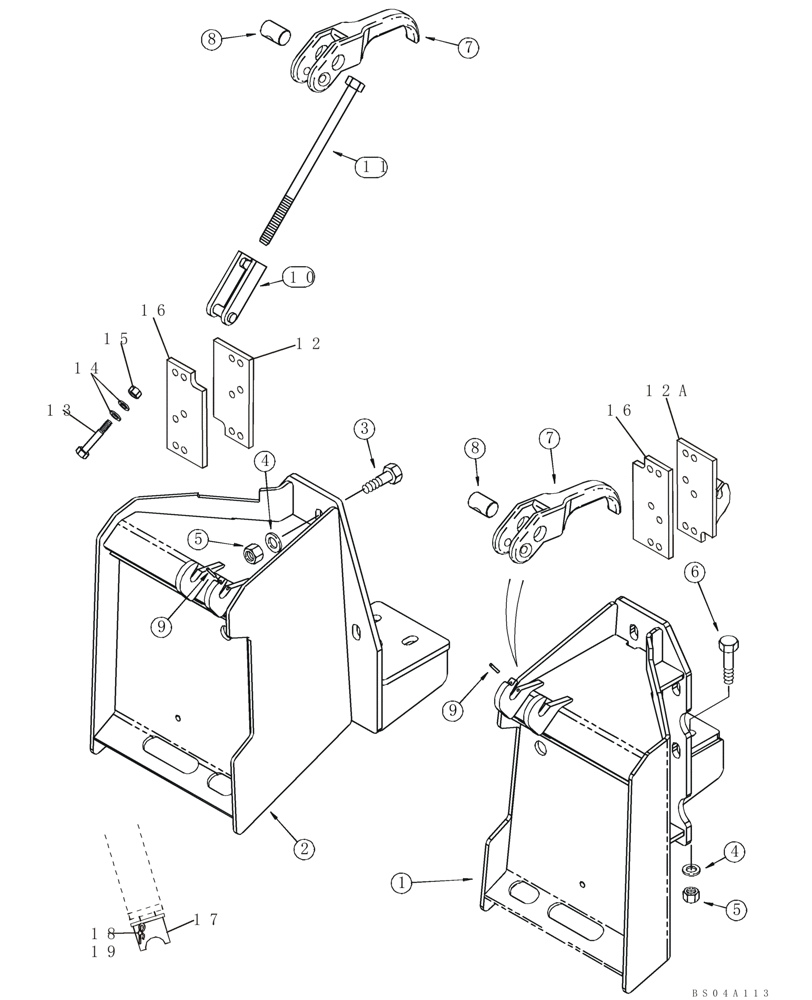

Запчасти Case 40XT (09-49) - BACKHOE - FRAME (NORTH AMERICA) D125 (09) - CHASSIS

REF

INSTRUCTION

D125 BACKHOE

1шт.

1

300462A1

MOUNTING PARTS

Left Hand

1шт.

2

300463A1

MOUNTING PARTS

Right Hand

1шт.

3

413-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

10шт.

4

H426817

WASHER

14шт.

5

232-41112

NUT,3/4"-10, GC

14шт.

6

413-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

3/4 x 3

4шт.

7

298185A1

HANDLE

2шт.

8

224024A1

PIN,38.1mm OD x 60mm L

2шт.

9

38-31224

PIN,3/16" x 1 1/2", Coiled

3/16" x 1 1/2", Coiled

2шт.

10

400808A1

CLEVIS

Replaces 224029A1

2шт.

11

828-20260

BOLT,Hex, M20 x 2.5 x 260mm, Cl 10.9

M20 x 260; 10.9

2шт.

12

401086A1

HOOK

Right Hand Backhoe Anchor; Replaces 226812A2

2шт.

12a

401087A1

HOOK

Left Hand Backhoe Anchor; Replaces 226812A2

1шт.

13

426-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 8

8шт.

14

496-21053

WASHER,17/32" x 1 1/16" x .134"

(M13.5 x 27 x 3.4)

16шт.

15

232-4118

NUT,1/2"-13, GC

8шт.

16

401048A1

BAR

Backup

2шт.

17

436857A1

COLLAR ASSY.

Coupler Stop; Attaches To Tilt Cylinder, See Figure 08-02

2шт.

18

439-1856

HEADED PIN,1/2" x 3 1/2"

1/2 x 3-1/2

2шт.

19

136-163

HAIR PIN COTTER,Int, 5/16" x .177

5/16

2шт.
