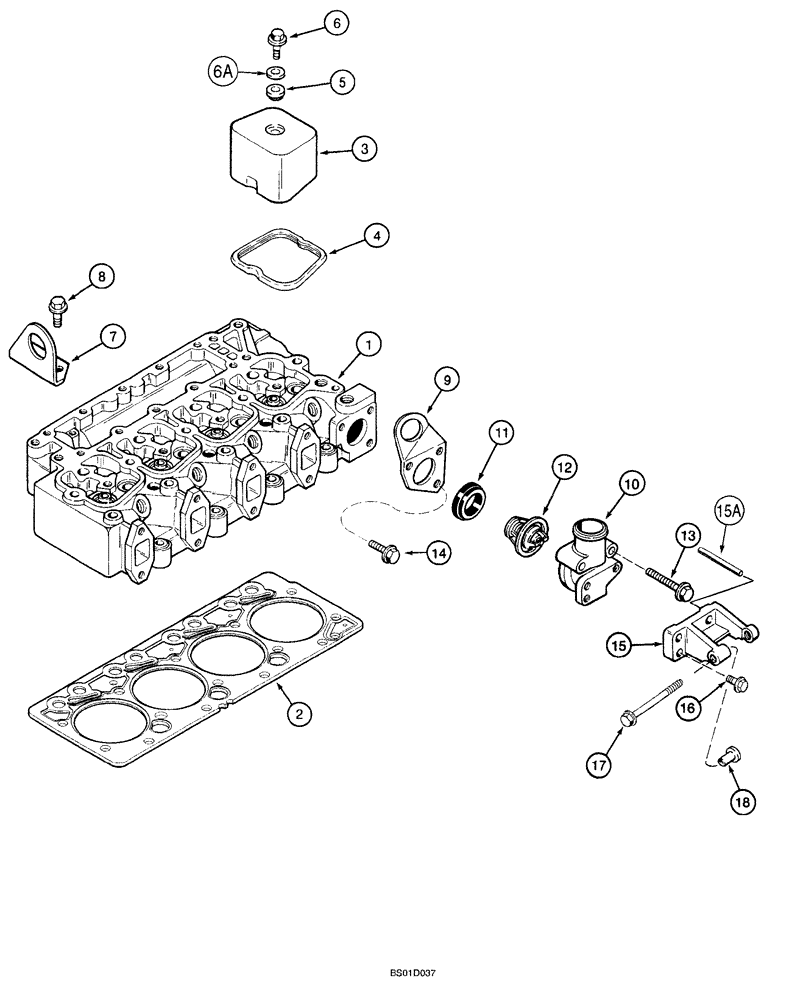

Запчасти Case 40XT (02-13) - CYLINDER HEAD - COVER - 4-390 EMISSIONS CERTIFIED ENGINE (02) - ENGINE

1

REF

INSTRUCTION

HEAD See Figure 02-14

1шт.

2

J283333

CYLINDER HEAD GASKET,2.32mm Thk

Cylinder Head

1шт.

2

J283336

GASKET

Cylinder Head; 0.25 mm

1шт.

2

J283338

GASKET

Cylinder Head; 0.50 mm

1шт.

3

J928404

COVER

4шт.

4

J930906

GASKET

4шт.

5

J935449

ISOLATOR,10.2mm ID x 19mm OD x 10.1mm L

4шт.

6

J907049

BOLT,Hex

M8 x 21

4шт.

6a

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16")

4шт.

7

J908118

BRACKET

1шт.

8

854-12030

BOLT,Hvy Hex, M12 x 30mm, Cl 10.9

2шт.

9

J903757

BRACKET

Thermostat And Housing

1шт.

10

J285102

HOUSING

Thermostat

1шт.

A77736

THERMOSTAT

Thermostat And Housing; Incl. 11, 12

1шт.

11

J923331

GASKET

Thermostat And Housing

1шт.

12

NSS

NOT SOLD SEPARAT

Thermostat And Housing

1шт.

13

845-8070

BOLT,Hvy Hex, M8 x 70mm, Cl 8.8

2шт.

14

845-8035

BOLT,Hvy Hex, M8 x 35mm, Cl 8.8

1шт.

15

J287096

SUPPORT

Incl. 15A

1шт.

15a

838-5310

LOCK PIN,M3 x 10, Slotted

Thermostat And Housing

2шт.

16

845-8025

BOLT,Hex Flg, M8 x 25mm, Cl 8.8

3шт.

17

814-10100

BOLT,Hex, M10 x 1.5 x 100mm, Cl 8.8

1шт.

18

J902469

SPACER

1шт.
