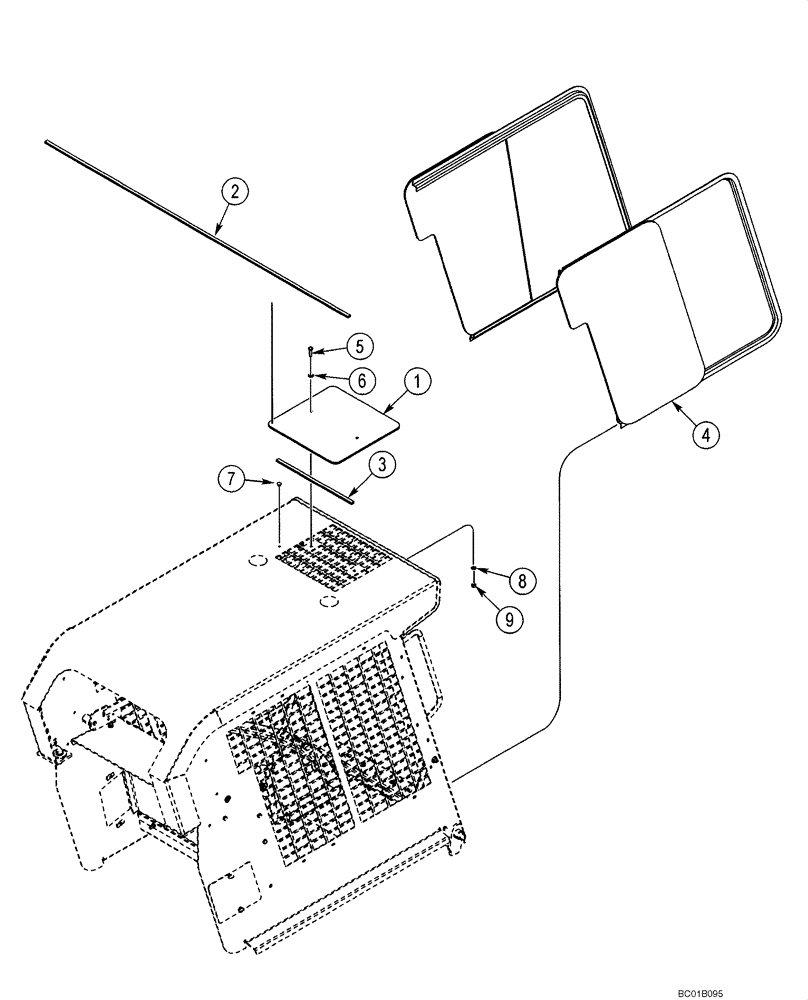

Запчасти Case 40XT (09-34) - WINDOWS - SIDE AND TOP (09) - CHASSIS

1

395445A2

WINDOW

Top

1шт.

2

429075A1

SEALING STRIP

Top Window

1шт.

3

429078A1

SEALING STRIP

Top Window

1шт.

4

381224A4

WINDOW ASSY

Left Hand and Right Hand; Cab Enclosure; See Figure 09-34A

1шт.

5

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

2шт.

6

394277A1

SEALING WASHER,7mm ID x 18.5mm OD x 3.5mm Thk

M8 x 20

2шт.

7

353-400

PLUG,Dome, .250" hole, Nylon

2шт.

8

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

9

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.
