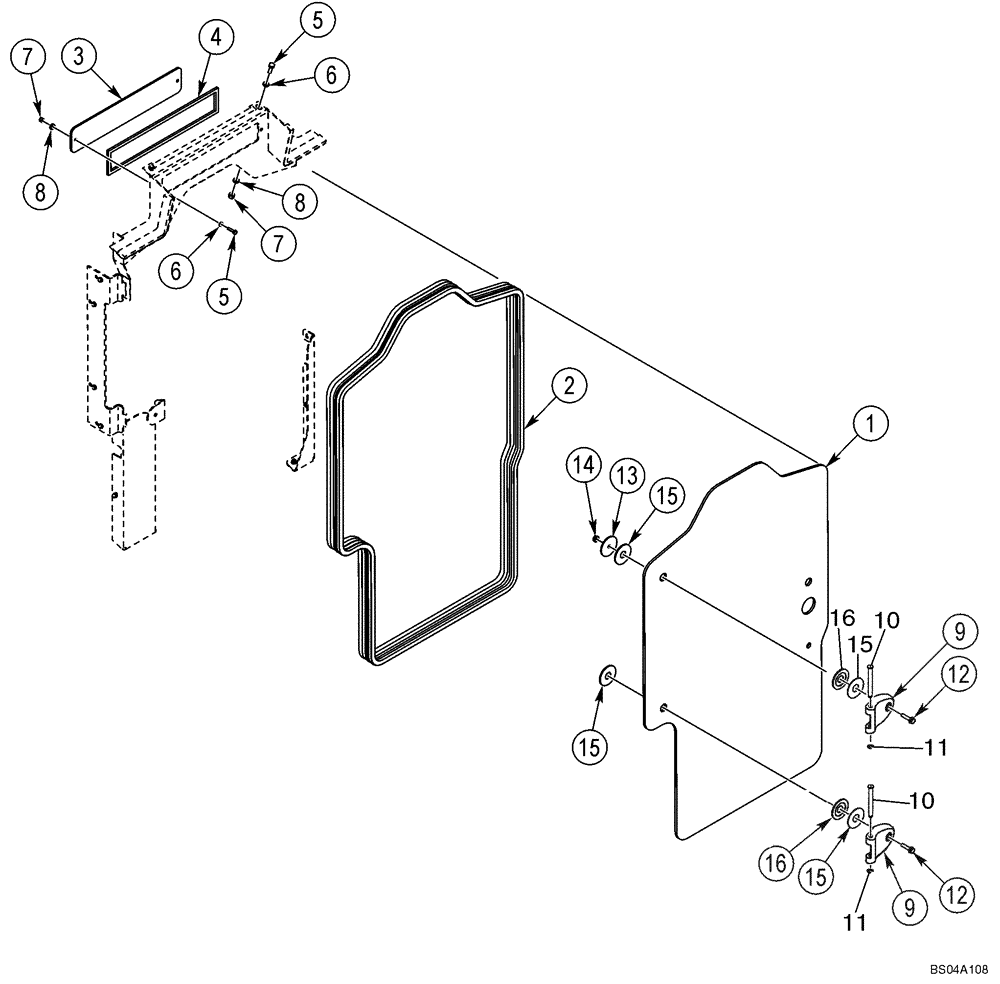

Запчасти Case 40XT (09-31) - DOOR, FRONT - WINDSHIELD, LEXAN, NORTH AMERICA ONLY (09) - CHASSIS

1

428891A1

GLASS

Polycarbonate, Lexan

1шт.

2

398886A1

SEAL,3378mm L

1шт.

3

402237A1

WINDOW

Door Frame

1шт.

4

394437A3

SEAL, GLASS

Top Window

1шт.

5

614-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

2шт.

6

103777A1

SEALING WASHER

2шт.

7

832-10406

NUT,M6 x 1, Cl 8

2шт.

8

895-30100

WASHER,6.6mm ID x 15mm OD x 1.6mm Thk

6.6 x 15 x 1.6

2шт.

9

304921A1

HINGE

2шт.

10

178819A3

PIN,10mm OD x 94.55mm L

2шт.

11

235754A1

CLIP,ELECTRICAL

Ring, Retaining

2шт.

12

844-8040

BOLT,Hvy Hex, M8 x 40mm, Cl 8.8

2шт.

13

376332A1

WASHER,9mm ID x 60mm OD x 3.4mm Thk

60 mm OD

1шт.

14

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

3шт.

15

376336A1

RUBBER WASHER

60 mm OD

4шт.

15a

87446347

SPACER

21.5 OD; If Used, Between Ref 15, 16; Not Illustrated

2шт.

16

396848A2

WASHER,22mm ID x 60mm OD x 0.51mm Thk

7/8 x 2-3/8 x 1/16

2шт.

398374A2

HARNESS

Door Switch; See Figure 04-17

1шт.
