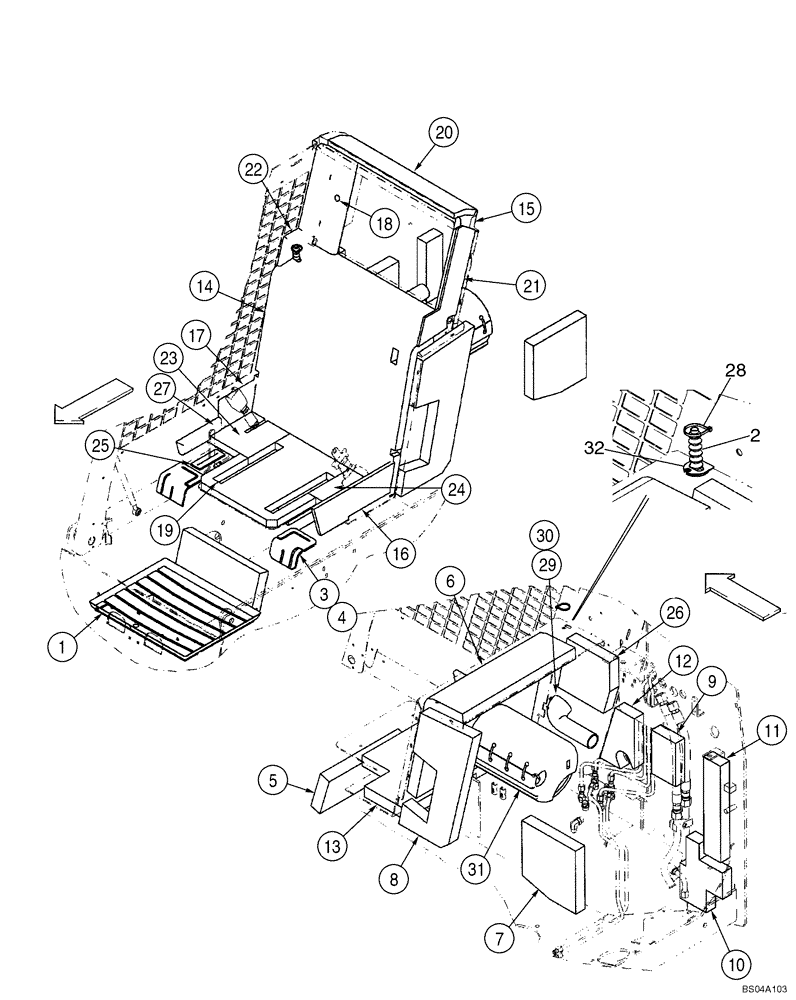

Запчасти Case 40XT (09-21) - NOISE CONTROL, EUROPEAN MODELS (09) - CHASSIS

1

398109A2

FLOOR MAT

1шт.

2

400988A1

BOOT

Seat Bar

1шт.

3

401210A1

MAT

Controls Sound Barrier

2шт.

4

401213A1

MAT

Controls Sound Barrier

2шт.

5

402017A1

PAD

Heel Plate

1шт.

6

402018A1

PAD

Heat Shield

1шт.

7

402022A1

PAD

Tower; Left Hand Upper; Rear

1шт.

8

402023A1

PAD

ROPS, Wing; Left Hand

1шт.

9

402032A1

PAD

Tower; Right Hand; Middle

1шт.

10

402034A1

PAD

Tower; Right Hand Lower, Rear

1шт.

11

402036A1

PAD

Tower; Right Hand Upper; Rear

1шт.

12

402037A1

PAD

Right Hand Tower Gusset

1шт.

13

402038A1

PAD

Seat Plate

1шт.

14

402039A1

INSULATING PANEL

Heat Shield

1шт.

15

402040A1

PAD

Window, Left Hand Rear

1шт.

16

402041A1

PAD

Side Screen, Left Hand Lower

1шт.

17

402042A1

PAD

Side Screen, Right Hand Lower

1шт.

18

402043A1

PAD

Window, Right Hand Rear

1шт.

19

402044A1

INSULATING PANEL

Seat Plate

1шт.

20

402045A1

PAD

Rear Window, top

1шт.

21

402046A1

PAD

Side Screen, Left Hand Upper

1шт.

22

402047A1

PAD

Side Screen, Right Hand Upper

1шт.

23

429672A1

INSULATING PANEL

Seat Plate, Right Hand

1шт.

24

429673A1

INSULATING PANEL

Seat Plate, Left Hand

1шт.

25

430284A1

INSULATING PANEL

Hand Throttle Seal

1шт.

26

431657A1

PAD

Side Screen, Right Hand

1шт.

27

434733A1

PAD

Side Screen, Right Hand Lower

1шт.

28

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in.

1шт.

29

214-1456

HOSE CLAMP,#56, 3.06" - 4", Type F Worm

1шт.

30

87573940

HOSE

Inlet Extension; Replaces 315522A1

1шт.

31

431803A1

SHIELD

Muffler Wrap

1шт.

32

445343A1

PLATE

Plate, Boot Hold Down

1шт.
