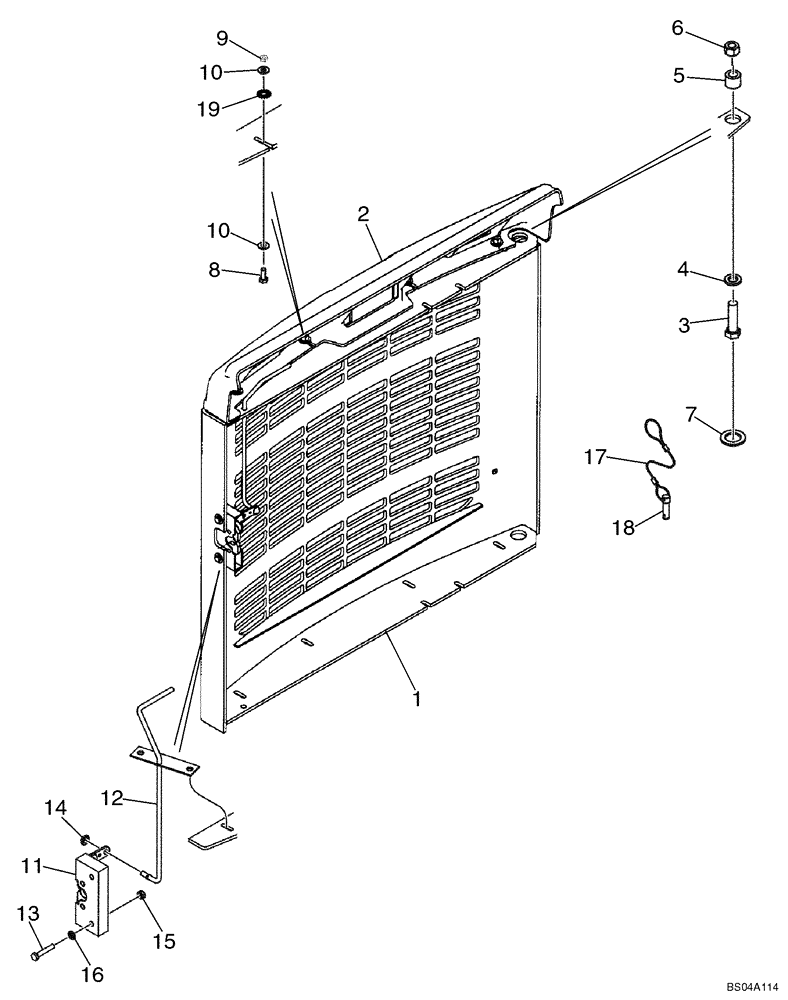

Запчасти Case 40XT (09-19) - DOOR, REAR (09) - CHASSIS

385491A1

Door Assy; Rear; Not Available As An Assembly, Order Components; Incl. 1, 2, 8-16

1шт.

1

385488A5

DOOR ASSY.

1шт.

2

385490A1

DOOR COVER

Fairing; Rear

1шт.

3

827-16060

BOLT,Hex, M16 x 2 x 60mm, Cl 10.9

1шт.

4

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

1шт.

5

248461A1

BUSHING,16.5mm ID x 24mm OD x 22mm L

1шт.

6

832-41316

NUT,M16 x 2, Cl 10

1шт.

7

248988A1

THRUST WASHER

Thrust

1шт.

8

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

4шт.

9

832-10408

NUT,M8 x 1.25, Cl 8.8

4шт.

10

896-15008

WASHER,9mm ID x 21mm OD x 2.5mm Thk

9 x 21 x 2.5 mm

8шт.

11

R55002

LATCH

1шт.

12

408001A1

ROD

Latch Pull

1шт.

13

814-6035

BOLT,Hex, M6 x 1 x 35mm, Cl 8.8

2шт.

14

380751A1

NUT

Push Cap

1шт.

15

832-41406

NUT,M6 x 1, Cl 8

M6, 10.9

2шт.

16

86624182

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

2шт.

17

297245A1

CABLE

Door Stop; Europe Only; Incl. 18, Also Incl. Figure 09-18 Ref 15, 16

1шт.

18

H439276

PIN,12mm OD x 50mm L

Rear Door Lock; Europe Only

1шт.

19

86632601

LOCK WASHER,8.4mm ID x 15mm OD x 0.8mm Thk

M8

4шт.
