(09-14) - LINKAGE - LOADER AND GROUND DRIVE

Запчасти Case 40XT (09-14) - LINKAGE - LOADER AND GROUND DRIVE (09) - CHASSIS

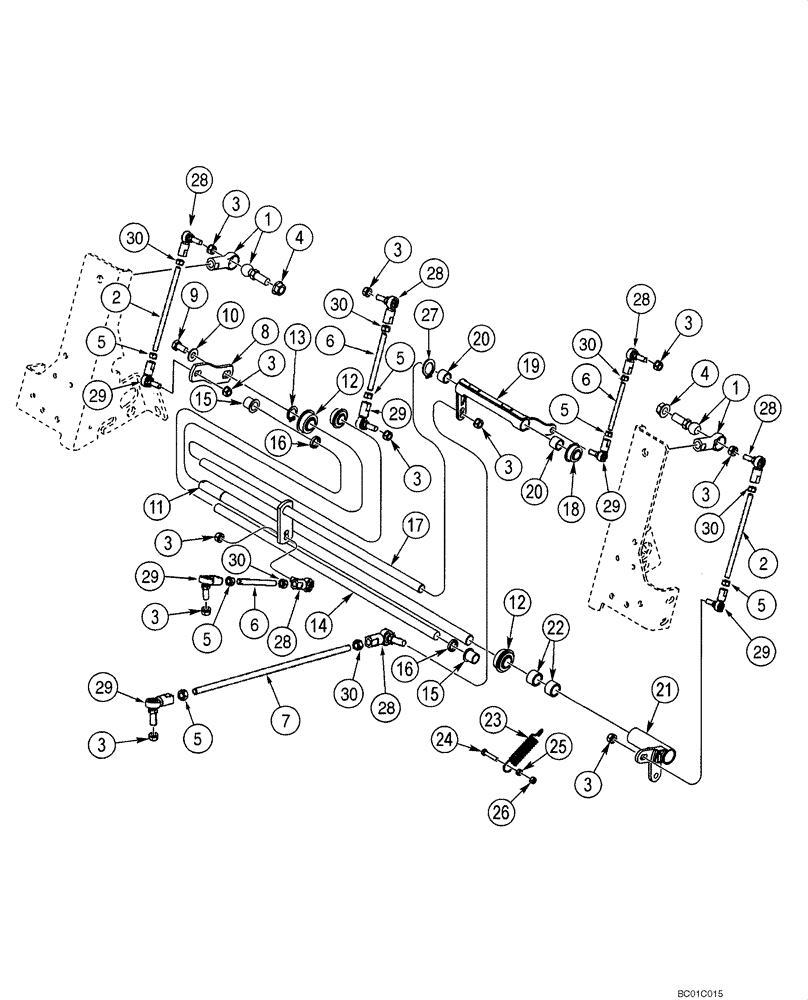

Схема запчастей Case 40XT - (09-14) - LINKAGE - LOADER AND GROUND DRIVE (09) - CHASSIS
3
29
9
28
10
5
3
15
30
24
30
28
5
11
6
6
20
3
28
30
30
21
5
3
2
5
3
30
16
15
1
29
8
23
28
16
26
5
20
2
28
3
5
14
13
27
12
6
3
1
19
22
29
30
18
28
4
3
29
17
12
3
29
3
25
3
29
4
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

LEFT HAND TO RIGHT HAND CONTROL FRAMES

1шт.

1

L44143

BALL JOINT

If Used

2шт.

1

443241A1

BALL JOINT,1/2" - 20 x 2-1/8" L

If Used: Replaces L44143

2шт.

2

180682A1

STEM

185.5 mm

2шт.

3

232-4616

LOCK NUT,3/8"-24, GC

(Replaces 410525A1)

12шт.

4

410478A1

LOCK NUT

2шт.

5

125-11011

NUT,3/8"-24, G5, LH

6шт.

6

249367A2

ROD

115 mm

3шт.

7

435565A1

ROD

Linkage; Ground Drive; Adjustment

1шт.

8

377410A2

LEVER

Crank

1шт.

9

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

1шт.

10

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

11 x 24 x 3 mm

1шт.

11

385784A2

ROD ASSY.

Loader Control

1шт.

12

409847A3

SPHERICAL BEARING,19.05mm ID x 37.97mm OD x 19.1mm W

Connecting Rod, 3/4 shaft

2шт.

13

103-1475

SNAP RING,#75, Ext

1шт.

13a

103-11118

SNAP RING,#118, Ext

Not Illustrated

1шт.

13b

103-11143

FASTENER

Retaining Ring; #143; Not Illustrated

1шт.

14

409840A2

SHAFT

Handle

1шт.

15

367582A1

BUSHING,15.88mm ID x 19.05mm OD x 19.1mm L

2шт.

16

409856A1

SPACER

2шт.

17

367583A5

LEVER ASSY.

Ground Drive

1шт.

18

409846A3

SPHERICAL BEARING,15.88mm ID x 31.62mm OD x 15.9mm W

Connecting Rod, 5/8 shaft

2шт.

19

367585A3

CRANK

1шт.

20

409844A1

BEARING, NEEDLE,Needle, 15.88mm ID x 20.64mm OD x 15.9mm W

5/8 shaft

2шт.

21

385783A3

CRANK

1шт.

22

409845A1

BEARING, NEEDLE,Needle, 19.05mm ID x 25.4mm OD x 15.9mm W

3/4 shaft

2шт.

23

120952A1

SPRING

1шт.

24

614-6030

BOLT,Hex, M6 x 1 x 30mm, Cl 8.8, Full Thd

1шт.

25

829-1406

NUT,Hex, M6 x 1, Cl 10.9

M6, 10.9

1шт.

26

832-41406

NUT,M6 x 1, Cl 8

1шт.

27

100-1462

SNAP RING,#62, Ext

1шт.

28

230425A1

BALL JOINT,3/8" - 24 x 1-3/5"

3/8 fem

6шт.

29

230426A1

BALL JOINT,3/8" - 24 x 1-3/5"

6шт.

30

425-116

NUT,3/8" - 24, Gr 5

6шт.
