Запчасти Case 40XT (02-09) - FRONT GEAR COVER - 4-390 EMISSIONS CERTIFIED ENGINE (02) - ENGINE

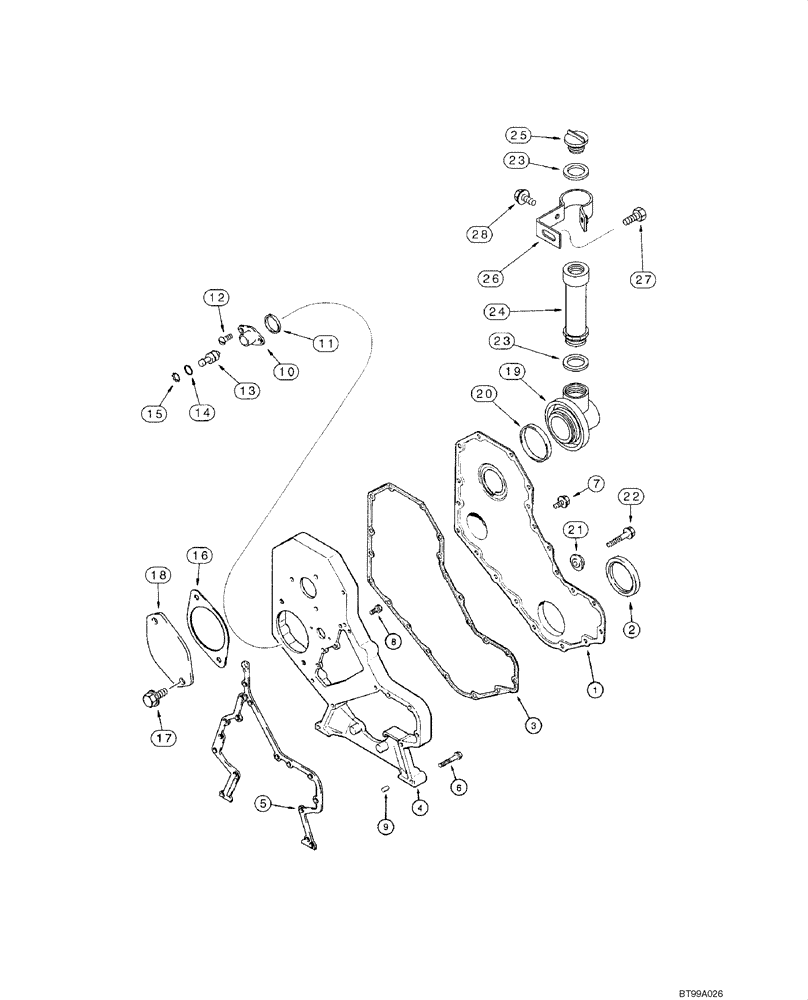

Схема запчастей Case 40XT - (02-09) - FRONT GEAR COVER - 4-390 EMISSIONS CERTIFIED ENGINE (02) - ENGINE
26
17
25
23
27
8
23
18
16
13
19
11
3
9
15
20
1
12
22
14
4
7
21
6
28
5
10
24
2

Артикул

Название

Примечание

Количество

1

J903794

COVER

Uses Ref 3, Gasket J914385

1шт.

1

J286312

COVER

Uses J823494, Liquid Gasket

1шт.

J823494

SEALANT

Use Between Cover J286312 And Housing J920758

1шт.

2

NSS

NOT SOLD SEPARAT

SEAL Order A77889, A77890; See Figure 02-17

1шт.

3

J914385

GASKET,1.02mm Thk

Use With Cover J903794 And Housing J920758

1шт.

4

J920758

HOUSING

1шт.

5

J938156

GASKET,0.79mm Thk

Housing

1шт.

6

845-8050

BOLT,Hvy Hex, M8 x 50mm, Cl 8.8

10шт.

7

J924962

FLANGE BOLT

M8 x 16

11шт.

8

J926846

FLANGE BOLT

M8 x 20

5шт.

9

J900257

PIN,10.01mm OD x 16mm L

16 mm

2шт.

10

J919683

HOUSING

1шт.

11

J915772

SEAL,Square, 1.68mm Thk x 29.87mm ID, -25

SEALRING

1шт.

12

J907998

SCREW,M5 x 0.8 x 17mm, Cl 8.8

2шт.

13

J903924

PIN,18.87mm OD x 55mm L

1шт.

14

J913994

O-RING

1шт.

15

100-2587

SNAP RING,0.875", Int, #87

1шт.

16

J938655

GASKET,1.27mm Thk

Plate; Replaces J929751

1шт.

17

854-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

2шт.

18

J914868

COVER

PLATE

1шт.

19

J921644

ADAPTER

1шт.

20

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

1шт.

21

J912772

RETAINER

1шт.

22

845-8060

BOLT,Hvy Hex, M8 x 60mm, Cl 8.8

1шт.

22

87421315

FLANGE BOLT,Hex, M8 x 1.25 x 65mm, Cl 10.9

M8 x 65; Use With Cover J286312

1шт.

23

J902363

O-RING,30mm ID x 48mm OD x 3mm Thk

No Longer Used; Order J936876

2шт.

23

J936876

SEALING RING,30mm ID x 48mm OD x 2.8mm Thk

2шт.

24

J914738

TUBE,32 mm ID x 38 mm OD x 138 mm L

1шт.

25

J901895

CAP

Filler

1шт.

26

J918182

CLAMP,38mm ID

1шт.

27

845-6015

BOLT,Hvy Hex, M6 x 15mm, Cl 8.8

1шт.

28

615-10016

BOLT,Hex, M10 x 1.5 x 16mm, Cl 8.8, Full Thd

1шт.

Выбрано товаров: 32
