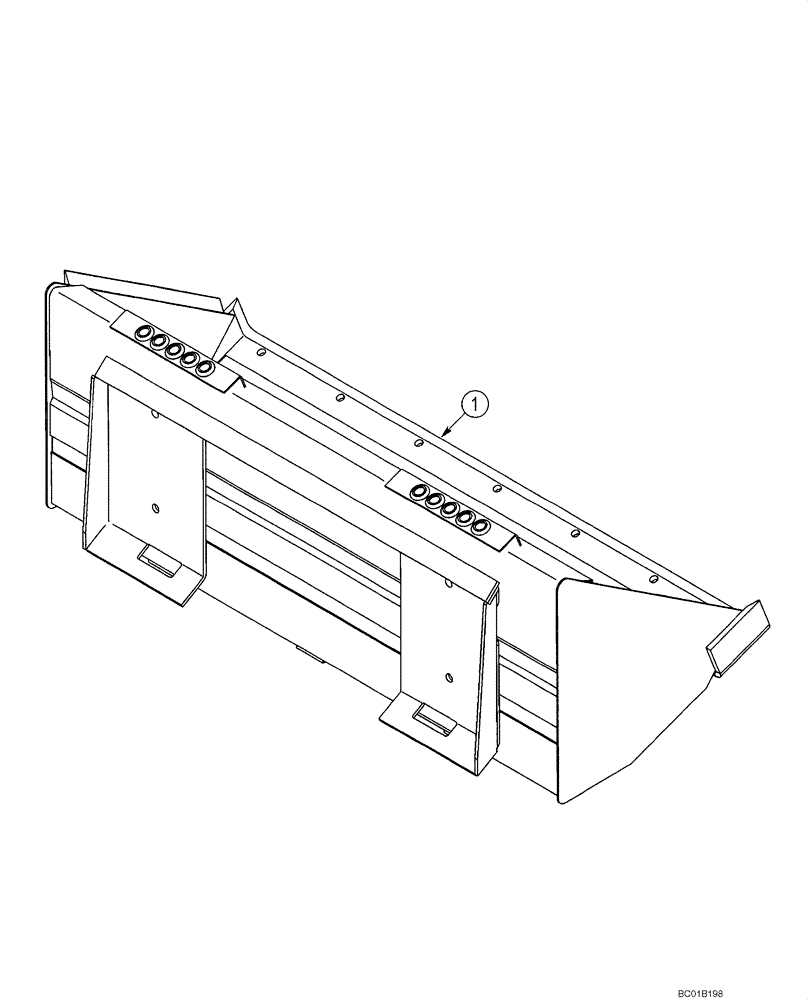

Запчасти Case 40XT (09-05) - BUCKETS - LOADER, DIRT / FOUNDRY (09) - CHASSIS

REF

INSTRUCTION

DIRT / FOUNDRY

1шт.

1

86618349

BUCKET

BUCKET, 1524 mm, 60 in.; Order From Machinery Price List

1шт.

1

86618350

BUCKET

BUCKET, 1676 mm, 66 in.; Order From Machinery Price List

1шт.

1

86618351

BUCKET

BUCKET, 1829 mm, 72 in.; Order From Machinery Price List

1шт.

450941A1

KIT

Bucket Reinforcement Kit; Incl. 2 - 4, Component Parts Not Illustrated Separately; For Use With Buckets 86618349 - 86618355, 86618357 - 86618361, 86618363, 86618364

1шт.

2

9822175

PLATE

Lower Support

2шт.

3

448481A1

BAR

Upper Support, Long

6шт.

4

448610A1

BAR

Upper Support, Short

6шт.
