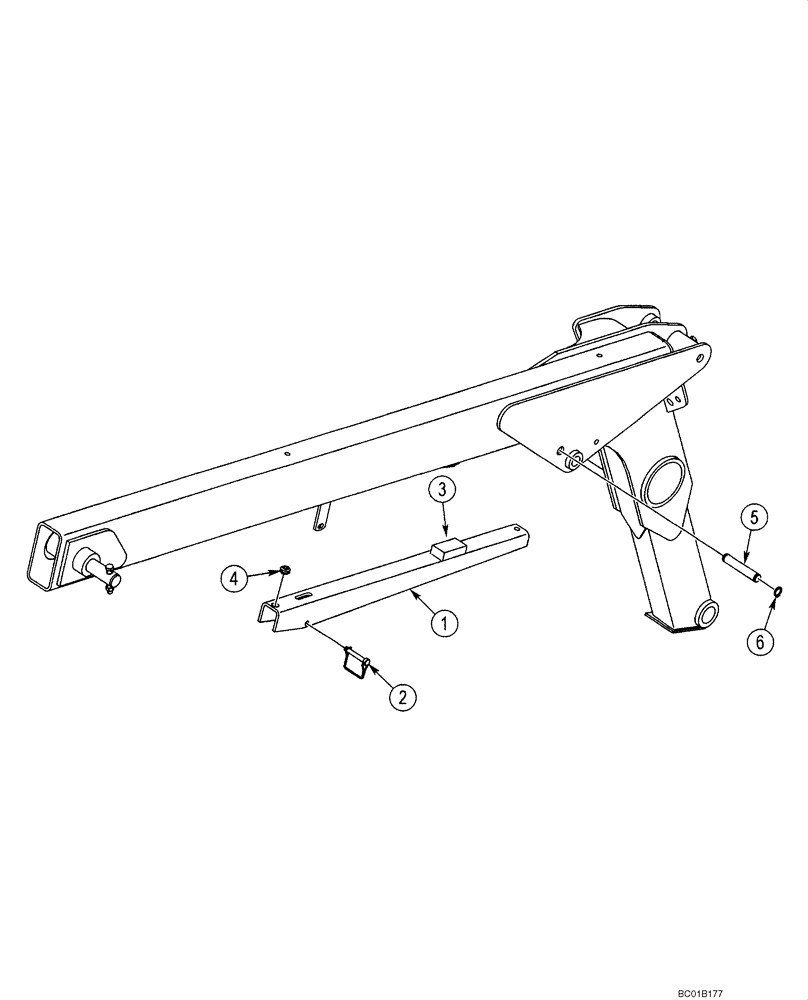

Запчасти Case 40XT (09-02) - SUPPORT - LOADER FRAME (09) - CHASSIS

1

405858A2

STRUT

If Used; North America BSN JAF03745549, Europe BSN JAF0348068

1шт.

1

449433A1

STRUT

If Used; Not Illustrated; North America ASN JAF03745550, Europe ASN JAF0348069

1шт.

2

87711364

PIN,9.53mm OD

Replaces 407108A1

1шт.

3

406623A2

PAD

Loader Strut

1шт.

4

248-2198

GROMMET,3/8" ID x 5/8" Groove Dia

1шт.

5

405854A1

PIN

1шт.

6

103-1675

SNAP RING,#75, .750, Ext

2шт.
