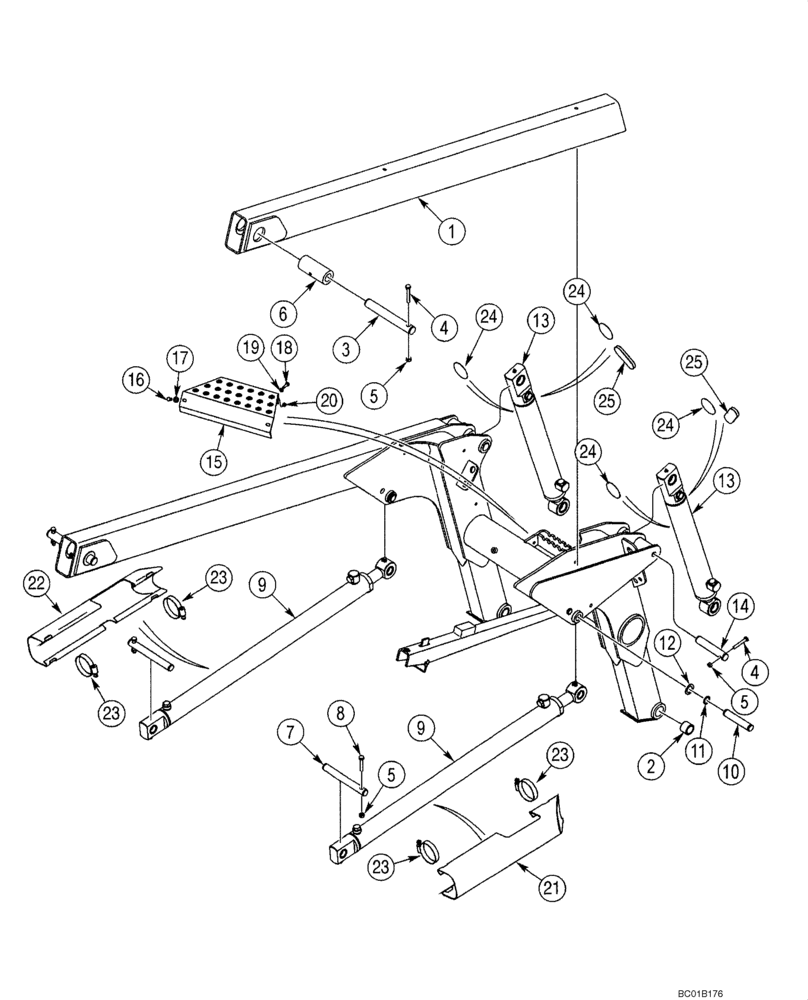

Запчасти Case 40XT (09-01) - FRAME - LOADER LIFT (09) - CHASSIS

369030A7

Frame Assy; Loader Arm; Used In Production, For Service Order 434787A1; Incl. 1, 2

1шт.

1

434787A1

ARM

Kit, Loader; Incl. Decals 2, 3, 7 on Figure 09-57 and Decal 10 on Figure 09-60

1шт.

2

D33827

BUSHING,31.98mm ID x 41.27mm OD x 31.8mm L

32 mm, 1-1/4 in.

4шт.

3

382837A1

PIN,31.75mm OD x 234.6mm L

2шт.

4

814-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 8.8

4шт.

5

832-41410

NUT,M10 x 1.5, Cl 10

6шт.

6

219-86

LUBE NIPPLE,1/8" NPTF

Bushing Grease

2шт.

7

382838A1

PIN,25.4mm OD x 215mm L

Lift Cylinder

2шт.

8

814-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

2шт.

9

86614636

CYLINDER ASSY.

Loader Lift, 2-1/4 x 35-5/32; See Figure 08-16; North America Before S/N JAF0374550 , European Models Before S/N JAF0348069

2шт.

9

447170A1

CYLINDER ASSY.,Double Acting, 40mm Rod, 893mm Stroke

Loader Lift, 2-1/4 x 35-5/32; See Figure 08-16A; North America S/N JAF0374550 And After, European Models S/N JAF0348069 And After

2шт.

9

87438185

CYLINDER ASSY.,Double Acting, 38.1mm Rod, 893mm Stroke

Loader Lift, 2-1/4 x 35-5/32; See Figure 08-16B; Replaces 447170A1

2шт.

10

405853A1

PIN

Cylinder

2шт.

11

103-1698

SNAP RING,#98, Ext

4шт.

12

495-81187

WASHER,1 1/16" x 1 5/8" x .065"

1-1/16 x 1-3/4 x 1/16

4шт.

13

86640307

CYLINDER ASSY.

Bucket Tilt; 2-1/2 x 14-1/2, 14.52, str; See Figure 08-17; North America Before S/N JAF0374550 , European Models Before S/N JAF0348069

2шт.

87461812R

REMAN-HYD CYLINDER

40XT S/N JAF0374550 & AFT. BSN JAF400555 Reman for new P/N 447169A1

2шт.

87461812C

CORE-HYD CYLINDER

Return Number

1шт.

13

447169A1

CYLINDER ASSY.

Bucket Tilt; 2-1/2 x 14-1/2, 14.52, str; See Figure 08-17A; North America S/N JAF0374550 And After, European Models S/N JAF0348069 And After; BSN JAF400555

2шт.

87461812R

REMAN-HYD CYLINDER

40XT S/N JAF0374550 & AFT. BSN JAF400555 Reman for new P/N 447169A1

2шт.

87461812C

CORE-HYD CYLINDER

Return Number

1шт.

13

87438183

CYLINDER ASSY.

Bucket Tilt; 2-1/2 x 14-1/2, 14.52, str; See Figure 08-17B; Replaces 447169A1; ASN JAF400555

2шт.

87461812R

REMAN-HYD CYLINDER

40XT S/N JAF0374550 & AFT. BSN JAF400555 Reman for new P/N 447169A1

2шт.

87461812C

CORE-HYD CYLINDER

Return Number

1шт.

14

393742A1

PIN

Cylinder

2шт.

434789A1

STEP

Kit; Incl. 15 and Decals 251748A1and D137186, See Figure 09-60

1шт.

15

409422A1

STEP

1шт.

16

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

2шт.

17

896-15008

WASHER,9mm ID x 21mm OD x 2.5mm Thk

9 x 21 x 2.5 mm

2шт.

18

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

2шт.

19

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

20

832-41408

NUT,M8 x 1.25, Cl 10

M8

2шт.

21

429619A1

COVER

Right Hand Lift Cylinder; European Models

1шт.

22

429620A1

COVER

Left Hand Lift Cylinder; European Models

1шт.

23

214-1444

HOSE CLAMP,58.6mm - 82.5mm

European Models

4шт.

24

429630A2

CAP COVER,43mm OD

Cover; 43 mm, European Models; Replaces 429630A1, 50 mm

4шт.

25

429631A1

Cover; 28 x 74 mm, European Models

4шт.
