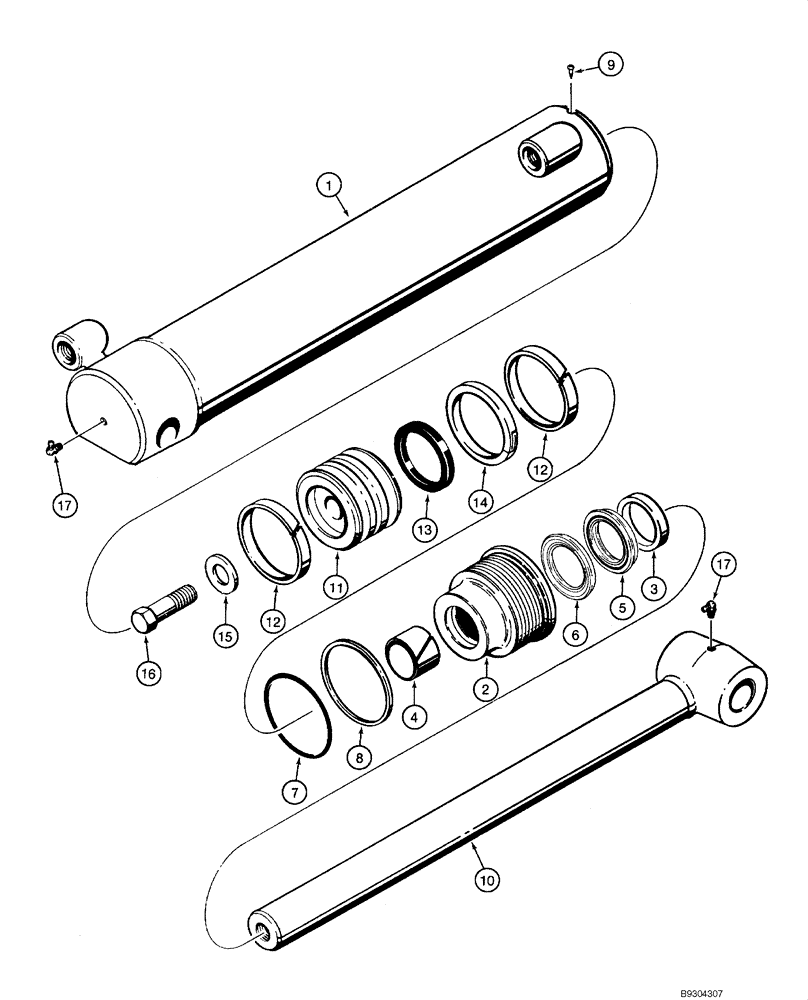

Запчасти Case 40XT (08-36) - CYLINDER ASSY - BOOM, DIPPER, AND BUCKET (D100) (08) - HYDRAULICS

G100936

CYLINDER,Double Acting, 38.1mm Rod, 371.35mm Stroke

3 (76) ID x 14-5/8 in (372 mm); Incl. 1 - 17; Boom, Dipper And Bucket For D100

3шт.

1

G100937

TUBE,76.2 mm DIA x 550.9 mm L

1шт.

NSS

NOT SOLD SEPARAT

Gland Assy; Cylinder; Incl. 2 - 8; Has Identification Groove On Outer Lip

1шт.

2

1542962C1

GLAND

Cylinder

1шт.

3

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

Piston Rod

1шт.

4

G102424

BUSHING,38.1mm ID x 41.17mm OD x 25.15mm L

1шт.

1542874C1

SEAL KIT,38.1mm Rod

Incl 5, 6; Not Serviced Separately, Order 1543252C1

1шт.

5

1542997C1

SEALING RING

Not Serviced Separately, Order 1543252C1

1шт.

6

NSS

NOT SOLD SEPARAT

Seal; Not Serviced Separately, Order 1543252C1

1шт.

7

238-5234

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

1шт.

8

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

1шт.

9

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

1шт.

10

G101357

ROD

1-1/2 in (38 mm)

1шт.

11

G100442

PISTON

Cylinder

1шт.

12

G100449

WEAR RING,Split, 69.85mm ID x 76.2mm OD x 9.52mm Thk

Piston

2шт.

13

G100444

SEALING RING,Square, 5.28mm Thk x 62.61mm ID

Piston Seal

1шт.

14

G102288

SEAL,Locking, 71.71mm ID x 76.43mm OD x 6.96mm Thk

Piston

1шт.

15

S94643

WASHER,19.43mm ID x 38.1mm OD x 6.35mm Thk

1шт.

16

25863R1

BOLT,Hex, 3/4" - 16 x 2 1/2", Gr 8

1шт.

17

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

2шт.

1543252C1

SEAL KIT

Incl. 3 - 8, 12 - 14; Also Incl. Buffer Seal Not Used In This Application

1шт.
