Артикул
Название
Примечание
Количество

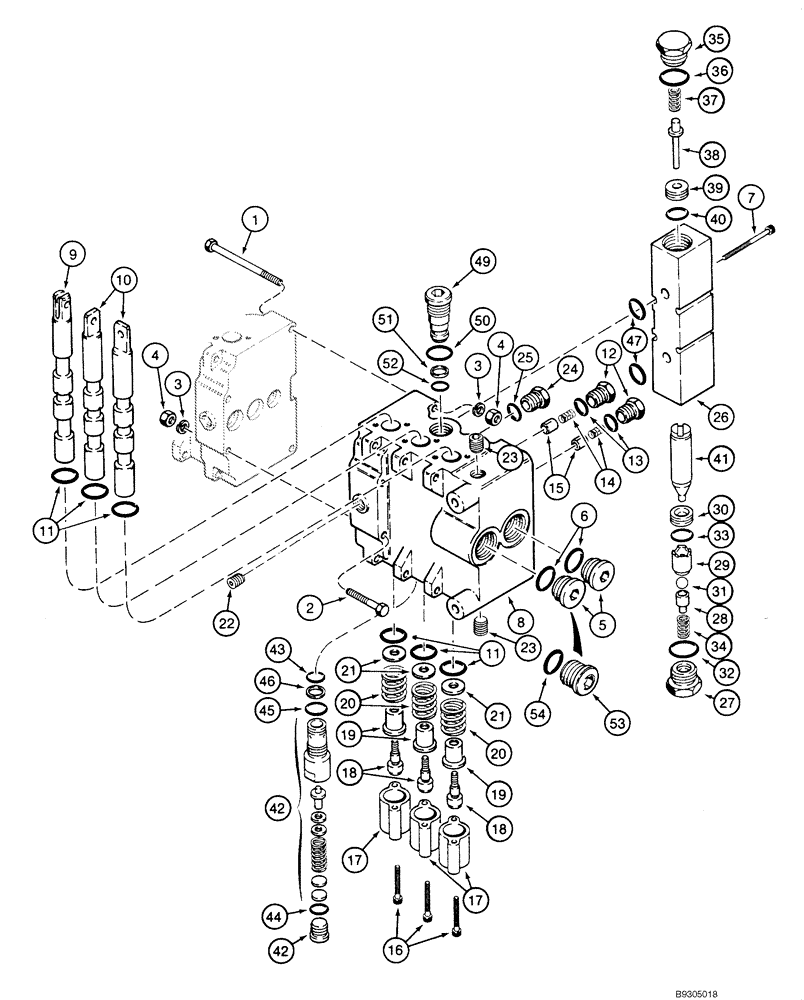

H674300
VALVE
Control; Backhoe; Manufactured By Dukes; Incl. Figure 08-32 - 08-34; No Longer Available, Order 87400023
1шт.
87400023
VALVE
Control; Backhoe; Manufactured By Dukes; Incl. Figure 08-32 - 08-34
1шт.
1
414-448
BOLT,Hex, 1/4" - 28 x 3", Gr 5
2шт.
2
414-436
BOLT,Hex, 1/4" - 28 x 2-1/4", Gr 5
2шт.
3
495-11028
WASHER,1/4", SAE
(9/32 x 5/8 x 1/16")
4шт.
4
425-114
NUT,1/4"-28, G5
4шт.
6
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
1шт.
7
62-31040
HEX SOC SCREW,#10 - 32 x 2 1/2"
4шт.
H674528
HYD VALVE SECTION
Outlet; No Longer Available, Order 87407875
1шт.
87407875
HYD VALVE SECTION
Outlet
1шт.
8
NSS
NOT SOLD SEPARAT
Body; Outlet Section
1шт.
9
NSS
NOT SOLD SEPARAT
Spool; Stabilizer
1шт.
10
NSS
NOT SOLD SEPARAT
Spool; Dual Control
2шт.
11
H438030
O-RING
6шт.
H438024
SET
Load Check; No Longer Available, Order 87407876
2шт.
87407876
KIT
Load Check
2шт.
12
H438231
PLUG
Incl. 13
1шт.
14
NSS
NOT SOLD SEPARAT
Spring; Poppet
1шт.
15
NSS
NOT SOLD SEPARAT
Poppet; Load Check
1шт.
H438021
SET
Spring Centering
3шт.
16
62-31024
SCREW,Hex Soc Hd, #10-32 x 1 1/2"
2шт.
17
NSS
NOT SOLD SEPARAT
Cap
1шт.
18
NSS
NOT SOLD SEPARAT
Bolt
1шт.
19
NSS
NOT SOLD SEPARAT
Spacer
1шт.
20
N9539
TENSION SPRING
1шт.
21
495-11034
WASHER,5/16", SAE
(11/32 x 11/16 x 1/16")
1шт.
22
H438960
PLUG
1шт.
23
217-433
PLUG,Hex Soc, 1/4" - 18 NPTF
Replaces 221-841
1шт.
24
H438231
PLUG
Load Check
1шт.
100405A2
BLOCK ASSY.
Pilot Check; Incl. 26-41
1шт.
26
NSS
NOT SOLD SEPARAT
Body; Pilot Check
1шт.
27
H438031
PLUG
Pilot Check
1шт.
28
H438032
SLEEVE VALVE
Pilot Check
1шт.
29
H438033
CUP
Check Ball
1шт.
30
113746A1
SEAT
Pilot Check
1шт.
31
113748A1
BALL
Pilot Check
1шт.
32
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
1шт.
33
238-6016
O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro
1шт.
34
102712A1
SPRING
Pilot Check
1шт.
35
113751A1
PLUG
Pilot Check
1шт.
36
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
1шт.
37
113747A1
SPRING
Poppet
1шт.
38
H438334
VALVE
Cartridge
1шт.
39
113750A1
SEAT
Poppet
1шт.
40
238-6016
O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro
1шт.
41
113749A1
PLUNGER
Pilot Check
1шт.
H674533
VALVE
Relief; Incl. 42
1шт.
42
NSS
NOT SOLD SEPARAT
Valve; Relief
1шт.
H674536
O-RING
Relief Valve; Incl. 43 - 46
1шт.
45
237-6008
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
1шт.
46
NSS
NOT SOLD SEPARAT
Ring
1шт.
47
238-6113
O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro
Check Assy
2шт.
48
H438039
LARGE PLATE
PLATE, LARGE Bottom Port Of Stabilizer Section; Not Illustrated
2шт.
H438954
PLUG
Body
1шт.
49
NSS
NOT SOLD SEPARAT
Plug; Body
1шт.
50
237-6008
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
1шт.
51
H438339
GASKET
1шт.
53
H438953
PLUG
3/4 in; Outlet Port; If Used
1шт.
54
238-6016
O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro
1шт.
111935A1
SET OF PARTS
Plunger; Incl. 35 - 41
1шт.
13
237-6006
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
1шт.
25
237-6006
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
1шт.
44
237-6006
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
1шт.
Выбрано товаров: 66
