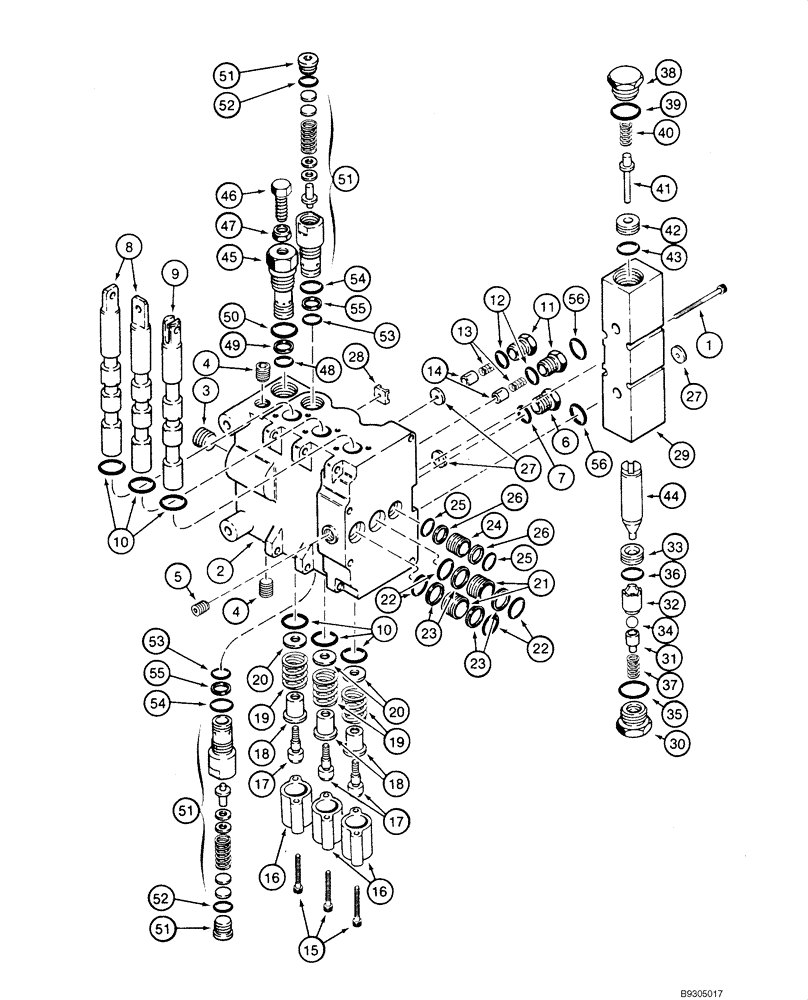

Запчасти Case 40XT (08-33) - VALVE, CONTROL - BACKHOE (D100) (08) - HYDRAULICS

H674300

VALVE

Control; Backhoe; Manufactured By Dukes; Incl. Figure 08-32 - 08-34; No Longer Available, Order 87400023

1шт.

87400023

VALVE

Control; Backhoe; Manufactured By Dukes; Incl. Figure 08-32 - 08-34

1шт.

1

62-31040

HEX SOC SCREW,#10 - 32 x 2 1/2"

4шт.

H674530

VALVE

Inlet; Incl. 1 - 19; No Longer Available, Order 87407874

1шт.

87407874

HYD VALVE SECTION

Inlet; Incl. 1 - 19

1шт.

2

NSS

NOT SOLD SEPARAT

Body; Inlet Section

1шт.

3

217-436

PLUG,Hex Soc, 3/8" - 18 NPTF

1шт.

4

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

Replaces 221-841

2шт.

5

H438960

PLUG

1шт.

6

H438231

PLUG

Load Check

1шт.

8

NSS

NOT SOLD SEPARAT

Spool; Dual Control

2шт.

9

NSS

NOT SOLD SEPARAT

Spool; Stabilizer

1шт.

10

H438030

O-RING

Spool

6шт.

H438024

SET

Load Check; Incl. 11 - 14; No Longer Available, Order 87407876

3шт.

87407876

KIT

Load Check; Incl. 11 - 14

3шт.

11

H438231

PLUG

2шт.

H438024

SET

Load Check

3шт.

13

NSS

NOT SOLD SEPARAT

Spring; Poppet

1шт.

14

NSS

NOT SOLD SEPARAT

Poppet; Load Check

1шт.

H438021

SET

Spring Centering; Incl. 15 - 20

3шт.

15

62-31024

SCREW,Hex Soc Hd, #10-32 x 1 1/2"

2шт.

16

NSS

NOT SOLD SEPARAT

Cap

1шт.

17

NSS

NOT SOLD SEPARAT

Bolt

1шт.

18

NSS

NOT SOLD SEPARAT

Spacer

2шт.

19

N9539

TENSION SPRING

4шт.

20

495-11034

WASHER,5/16", SAE

(11/32 x 11/16 x 1/16")

4шт.

21

H438028

TUBE

Body; Large; Incl. 22, 23

2шт.

22

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

23

A34493

RING,16.33mm ID x 19.02mm OD x 1.25mm Thk

2шт.

24

H438029

TUBE

Body; Small; Incl. 25, 26

1шт.

25

238-6015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 6, 90 Duro

2шт.

26

H438044

GASKET

2шт.

27

H438039

LARGE PLATE

PLATE, LARGE 0.094 in; Round; Top And Bottom Port Of Swing Section; Bottom Port Of Stabilizer Section

3шт.

28

H438041

LARGE PLATE

PLATE, LARGE 0.138 in; Square; Bottom Port Of Boom Section

1шт.

100405A2

BLOCK ASSY.

Pilot Check; Incl. 29 - 44

1шт.

29

NSS

NOT SOLD SEPARAT

Body; Pilot Check

1шт.

30

H438031

PLUG

Pilot Check

1шт.

31

H438032

SLEEVE VALVE

Pilot Check

1шт.

32

H438033

CUP

Check Ball

1шт.

33

113746A1

SEAT

Pilot Check

1шт.

34

113748A1

BALL

Pilot Check

1шт.

35

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

36

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

37

102712A1

SPRING

Pilot Check

1шт.

38

113751A1

PLUG

Pilot Check

1шт.

39

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

40

113747A1

SPRING

Poppet

1шт.

41

H438334

VALVE

Cartridge

1шт.

42

113750A1

SEAT

1шт.

43

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

44

113749A1

PLUNGER

Pilot Check

1шт.

H674534

VALVE

2400-2500 psi @ 10 gpm; Incl. 45 - 50

1шт.

45

NSS

NOT SOLD SEPARAT

Valve; Relief

1шт.

46

H438229

ADJUSTMENT SCREW

Bolt; Relief Valve

1шт.

47

H438228

NUT

Nut; Relief Valve

1шт.

H674535

GASKET KIT

Main Relief Valve; Incl. 48 - 50

1шт.

48

238-6015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 6, 90 Duro

1шт.

49

H438044

GASKET

1шт.

50

238-6017

O-RING,0.07" Thk x 0.676" ID, -17, Cl 6, 90 Duro

1шт.

H674533

VALVE

2950-3050 psi @ 3/4 gpm; Incl. 51 - 56

2шт.

51

NSS

NOT SOLD SEPARAT

Valve; Relief

1шт.

H674536

O-RING

Relief Valve; Incl. 52 - 55

1шт.

53

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

54

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

55

NSS

NOT SOLD SEPARAT

Ring

1шт.

56

238-6113

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

2шт.

111935A1

SET OF PARTS

Plunger; Incl. 38 - 44

1шт.

7

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

12

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

52

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
