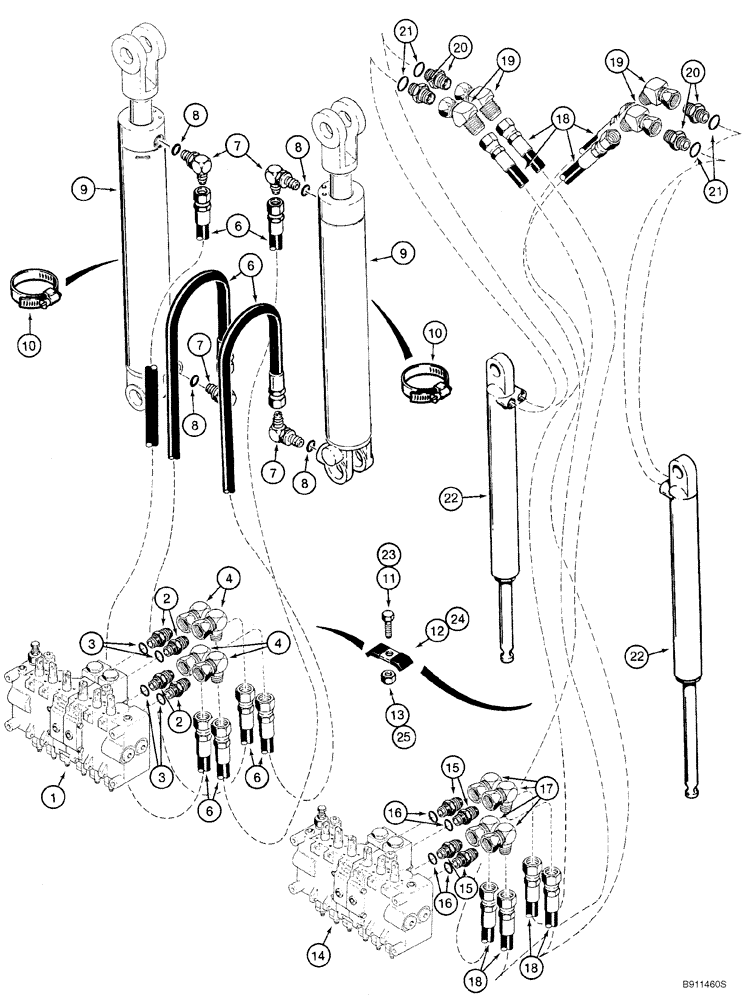

Запчасти Case 40XT (08-30) - HYDRAULIC SYSTEM - BACKHOE STABILIZER CYLINDER (D100) (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
REF
INSTRUCTION
FOLD DOWN STABILIZERS
1шт.
1
H674300
VALVE
Control; Backhoe; See Figure 08-32 - 08-34
1шт.
1
87400023
VALVE
Control; Backhoe; See Figure 08-32 - 08-34
1шт.
2
218-5058
HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB
9/16 fl x 3/4 Or; Incl. 3
4шт.
3
237-6008
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
1шт.
4
218-980
ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw
4шт.
6
139517C1
HYDRAULIC HOSE
2032 mm (80 in)
4шт.
7
218-5128
ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB
Incl. 8
4шт.
8
237-6008
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
1шт.
9
101643A1
CYLINDER ASSY.,Double Acting, 35.1mm Rod, 406.4mm Stroke
76 ID x 406 mm strk; Stabilizer; See Figure 08-50
2шт.
10
214-1456
HOSE CLAMP,#56, 3.06" - 4", Type F Worm
3-1/16 - 4 in dia
2шт.
11
413-524
BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5
2шт.
12
R17319
CLAMP
Replaces H434900
2шт.
13
232-4115
LOCK NUT,5/16"-18, GC
2шт.
REF
INSTRUCTION
VERTICAL STABILIZERS
1шт.
14
H674300
VALVE
Control; Backhoe; See Figure 08-32 - 08-34
1шт.
14
87400023
VALVE
Control; Backhoe; See Figure 08-32 - 08-34
1шт.
15
218-5058
HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB
9/16 fl x 3/4 Or; Incl. 16
4шт.
16
237-6008
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
1шт.
17
218-980
ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw
4шт.
18
139517C1
HYDRAULIC HOSE
2032 mm (80 in)
4шт.
19
218-5172
ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Female JIC
4шт.
20
218-5057
HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB
Incl. 21
4шт.
22
H514117
CYLINDER BLOCK
51 ID x 305 mm strk; Stabilizer; See Figure 08-51
2шт.
23
413-524
BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5
2шт.
24
R17319
CLAMP
2шт.
25
232-4115
LOCK NUT,5/16"-18, GC
2шт.
21
237-6006
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
1шт.
Выбрано товаров: 28
