Запчасти Case 40XT (08-28) - HYDRAULIC SYSTEM - BACKHOE DIPPER CYLINDER (D100) (08) - HYDRAULICS

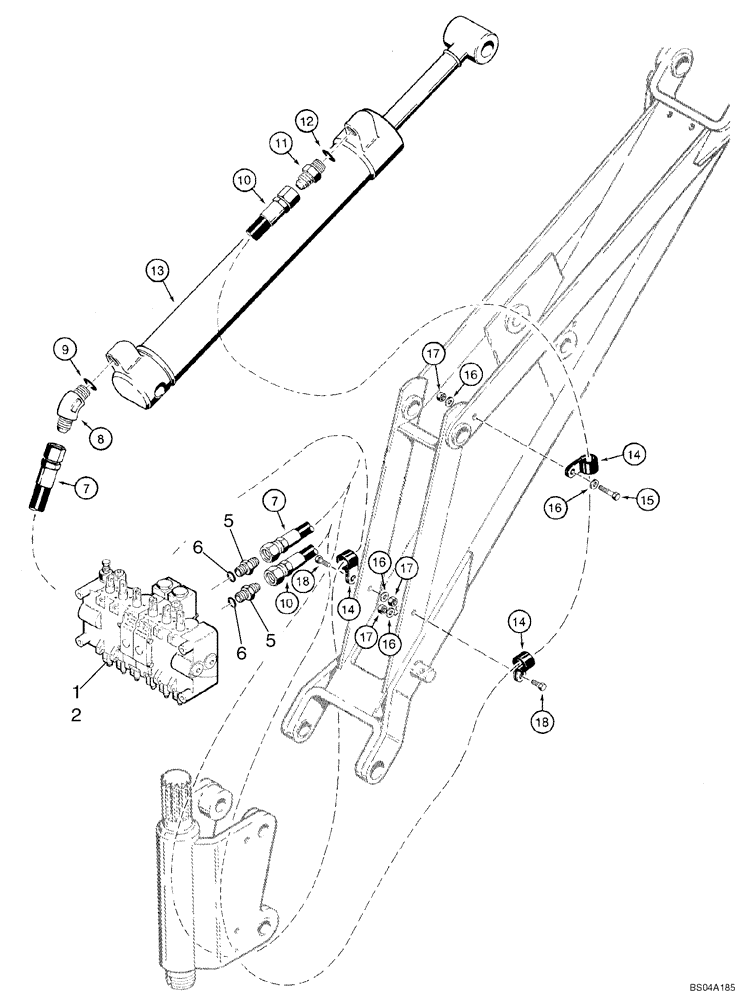

Схема запчастей Case 40XT - (08-28) - HYDRAULIC SYSTEM - BACKHOE DIPPER CYLINDER (D100) (08) - HYDRAULICS
5
14
12
2
16
8
17
6
11
6
18
10
15
14
16
18
7
13
7
14
10
9
5
16
17
16
1
17

Артикул

Название

Примечание

Количество

1

H674300

VALVE

Control; Backhoe; Manufactured By Dukes; Incl. Figure 08-32 - 08-34; No Longe Available, Order 87400023

1шт.

2

87400023

VALVE

Control; Backhoe; Replaces H674300; Incl. Figure 08-32 - 08-34

1шт.

5

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

O-ring boss; Incl. 6

2шт.

6

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

7

H434465

HOSE

63 in (1600 mm); To Closed End Of Dipper Cylinder

1шт.

8

218-5136

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Adj O-ring boss; Incl. 9

1шт.

9

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

10

H434464

HOSE

86-5/8 in (2200 mm); To Rod End Of Dipper Cylinder

1шт.

11

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

O-ring boss; Incl. 12

1шт.

12

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

13

G100936

CYLINDER,Double Acting, 38.1mm Rod, 371.35mm Stroke

3 (76) ID x 14-5/8 in (372 mm); Dipper; See Figure 08-36

1шт.

14

H51763

CLAMP

Hose

3шт.

15

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

16

495-11028

WASHER,1/4", SAE

(9/32 x 5/8 x 1/16")

4шт.

17

230-4214

LOCK NUT,1/4"-20, GA

3шт.

18

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

Выбрано товаров: 16
